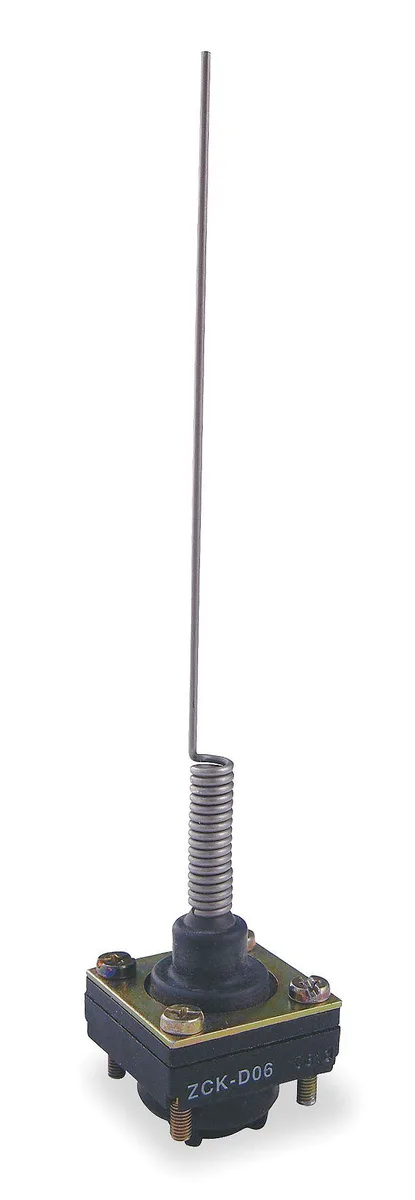

Telemecanique Sensors ZCKD06 Cat Whisker Limit Switch Head
Cat whisker limit switch head with omnidirectional 90-degree travel and 5.56 in actuator for XCKL and XCKM bodies
- Omnidirectional detection covers 90° travel
- 56 in cat whisker actuator reaches confined spaces
- 15 in-lb operating force enables sensitive triggering
- NEMA 1, 2, 3, 4, 12 ratings suit indoor and outdoor use
- Operates from -25 °F to 70 °F for cold and hot environments
Telemecanique Cat Whisker Limit Switch Head
This Telemecanique Sensors ZCKD06 limit switch head uses a cat whisker actuator mounted on top. It provides momentary contact operation for machinery position sensing. The head suits automated equipment requiring omnidirectional actuation detection.
Suits machines needing omnidirectional top actuation
This head fits XCKL and XCKM series limit switch bodies for top-mounted whisker sensing. It operates across a 90-degree travel range with 1.15 in-lb operating force. Buyers needing lever, roller or plunger actuator styles should select a different head type.
5.56 in whisker length with 3A and 0.27A ratings
The cat whisker extends 5.56 inches from the mounting point for wide detection coverage. Electrical ratings are 3A and 0.27A for circuit compatibility. NEMA 1, 2, 3, 4 and 12 enclosure ratings suit indoor and outdoor industrial environments.
Highlights
- Omnidirectional detection covers 90° travel
- 56 in cat whisker actuator reaches confined spaces
- 15 in-lb operating force enables sensitive triggering
- NEMA 1, 2, 3, 4, 12 ratings suit indoor and outdoor use
- Operates from -25 °F to 70 °F for cold and hot environments
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Which ZCK series body must I already have to mount this ZCKD06 cat whisker head?
This head is designed for use with manufacturer numbers XCKL and XCKM bodies, so you need a compatible ZCK series switch body from those ranges.
Will the 5.56 in whisker and 1.15 in-lb operating force work reliably with my existing 90 degree travel cams?
Yes, the head provides omnidirectional movement with 90 degree travel and a low 1.15 in-lb operating force, making it suitable for existing cam setups that match this travel.
How can I verify the switch is operating correctly after installation?
Confirm the whisker moves freely through the full 90 degree omnidirectional travel and that the circuit changes state at the expected actuation point with 1.15 in-lb force.
