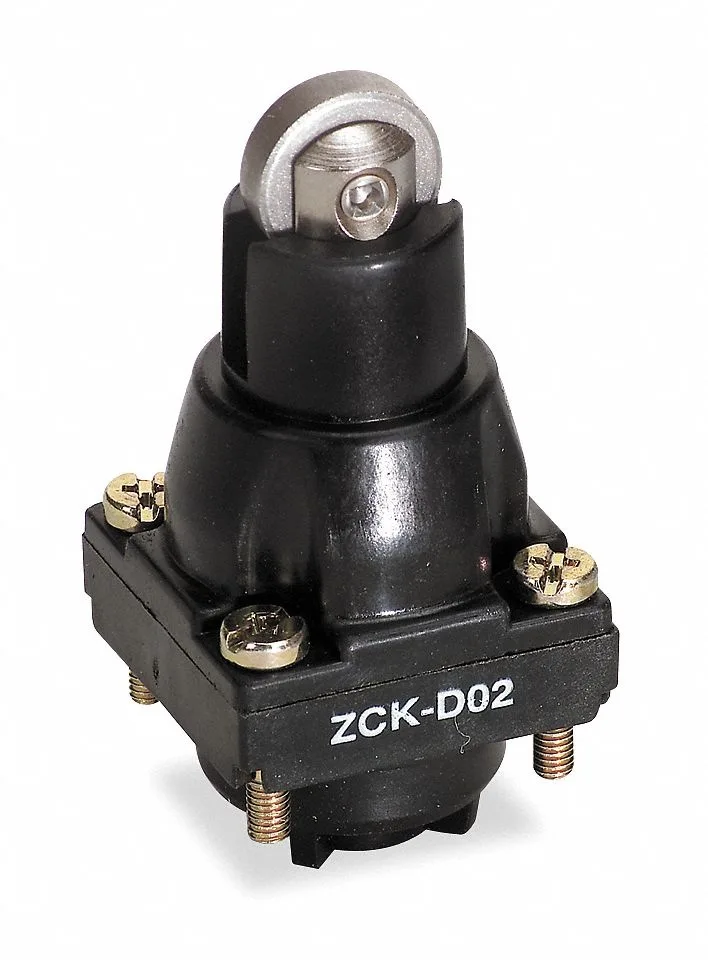

Telemecanique Sensors ZCKD02 Limit Switch Head Push Roller Plunger
Limit switch head with top-mounted push roller plunger, 1.69 in actuator length, 0.32 in travel, 2.7 in-lb operating force, -25 to 70 °F range, NEMA 1, 2, 3, 4, 12, for XCKL and XCKM bodies
- Top-mounted actuator simplifies installation
- Push roller plunger delivers 2.7 in-lb operating force
- 69 in actuator length suits compact spaces
- Operates from -25 to 70 °F for harsh environments
- NEMA 1, 2, 3, 4 and 12 ratings protect against ingress
Telemecanique ZCKD02 Limit Switch Head
The Telemecanique Sensors ZCKD02 is a push roller plunger limit switch head designed for position sensing in industrial machinery. It mounts on compatible XCKL or XCKM bodies and operates with a momentary top-mounted actuator. The unit is rated for NEMA 1, 2, 3, 4 and 12 enclosures and functions across a -25 to 70 degrees F temperature range. It meets EU RoHS and REACH compliance standards.
Suited for automated equipment needing top-actuation
This head suits machines where a rolling plunger provides reliable actuation from a moving cam or part. It is not for applications requiring side-mounted actuators, lever arms, or maintained contact operation. Buyers needing an IP-rated enclosure seal should verify compatibility separately, as the head itself carries no IP rating. The 3A at 0.27A contact rating limits use to control-circuit signalling rather than direct power switching.
Fits XCKL and XCKM bodies for complete assembly
The ZCKD02 requires a matching XCKL or XCKM switch body to form a functional limit switch. Its 1.69 inch actuator length and 0.32 inch travel define the mechanical engagement window for the target cam profile. The 2.7 in-lb operating force determines the required actuator pressure. This head frees the designer from fabricating custom brackets by providing a standardised, NEMA-rated top-plunger interface for the chosen switch body.
