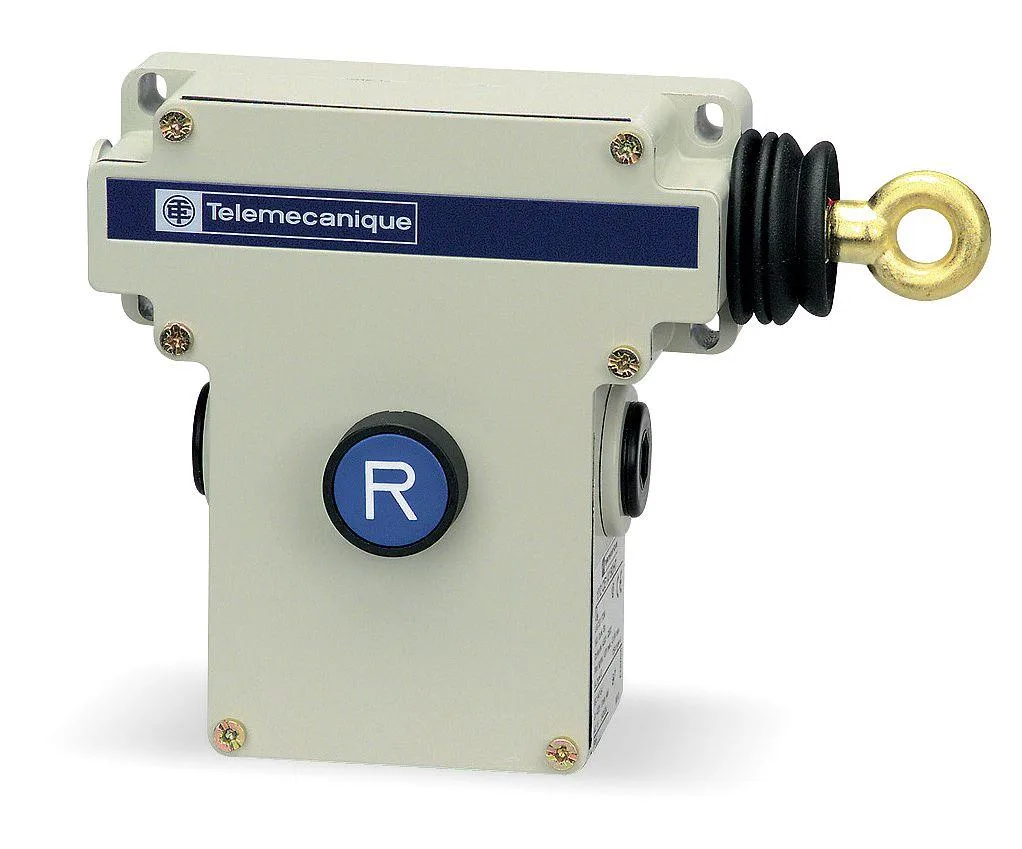

Telemecanique Sensors XY2CE2A150H7 Emergency Cable Pull Switch
Emergency cable pull switch with maintained function, 1NO/1NC contacts, 3 A at 240 V AC and 165 ft maximum cable span
- Emergency stop reach up to 165 ft cable span
- Maintained switch function holds position until manual reset
- 1NO/1NC contact form gives one normally open and one normally closed circuit
- NEMA 1, 12, 4 rating protects against dust, water and oil ingress
- Zamak case material provides durable zinc-alloy housing
Emergency stop for conveyor lines
The Telemecanique Sensors XY2CE2A150H7 is a maintained-function emergency cable pull switch designed for single-end mounting on machinery. It provides a 1NO/1NC contact form with push-button reset and no visual indicator. The Zamak case carries NEMA 1, 12 and 4 ratings for indoor and dust-tight environments.
165 ft maximum cable span
The decisive specification is the maximum cable span of 165 ft, which determines whether a single switch can protect the full length of a conveyor or assembly line. Exceeding this distance requires additional switches or a different safety architecture.
AC 3 A at 240 V and DC 0.27 A at 250 V
The contacts are rated for 3 A at 240 V AC and 0.27 A at 250 V DC with a thermal current of 10 A. This suits standard safety relay coils and PLC inputs but is not intended for direct motor loads or high-current switching.
Highlights
- Emergency stop reach up to 165 ft cable span
- Maintained switch function holds position until manual reset
- 1NO/1NC contact form gives one normally open and one normally closed circuit
- NEMA 1, 12, 4 rating protects against dust, water and oil ingress
- Zamak case material provides durable zinc-alloy housing
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
How does the 165 ft maximum cable span affect installation in a real machine?
The switch can protect a single cable run up to 165 ft, so one unit covers long conveyor sections or large machine perimeters without intermediate devices.
What does the 3 A at 240 V AC rating cap in practice?
The 3 A at 240 V AC rating limits the control-circuit current the contacts can switch; loads above that need an interposing relay or contactor.
What clearance is needed to mount the 9.0 in by 9.02 in by 4.13 in Zamak housing?
The enclosure measures 9.0 in long, 9.02 in wide and 4.13 in deep with a 1/2 in NPT wiring entry on the left side, so allow space for conduit and cable pull.
