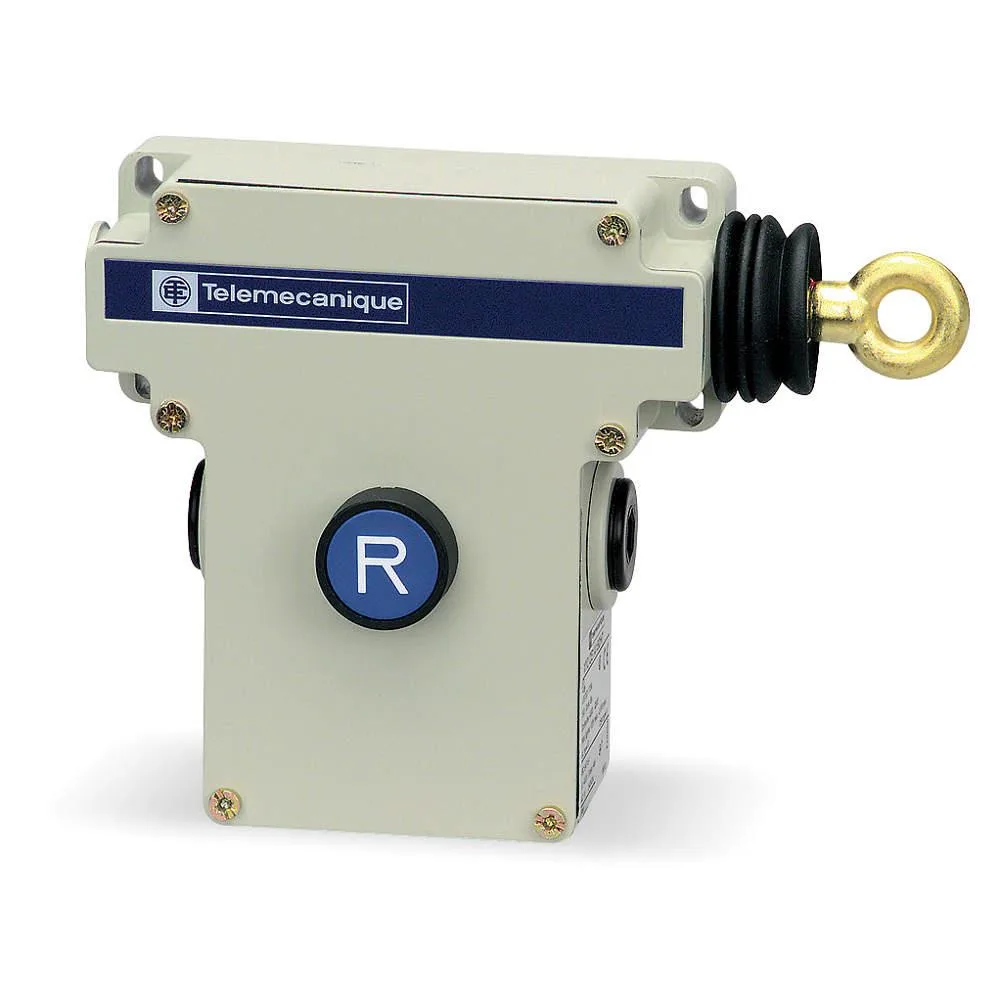

Telemecanique Sensors XY2CE1A250H7 Emergency Cable Pull Switch 1NO/1NC 165 ft
Emergency cable pull switch with maintained function, 1NO/1NC contacts, 165 ft max cable span, and Zamak housing rated NEMA 1, 12, 4
- Maintained switch function keeps circuit open until manual reset
- 165 ft maximum cable span covers long conveyor runs
- 1NO/1NC contact form provides both normal and emergency signalling
- NEMA 1, 12, 4 rating protects against dust and water ingress
- Zamak case material delivers rugged industrial durability
Emergency Cable Pull Switch 165 ft
The Telemecanique Sensors XY2CE1A250H7 is a maintained-function emergency stop device for conveyor lines and machinery spans up to 165 ft. It provides a single-cable switching solution with 1NO/1NC contact configuration for safety circuits.
NEMA 1 12 4 Rating Limits
The zamak enclosure carries NEMA 1, 12 and 4 ratings, meaning it is suitable for indoor use and provides protection against dirt, dripping water and hose-directed water. It is not rated for submersion or corrosive atmospheres beyond the listed types.
Single-End Mounting and Reset
The switch mounts at a single end with the cable connection on the right side and uses a booted push-button reset. Installers must tension the cable correctly across the full span; insufficient tension or misalignment are the most common causes of nuisance trips or failure to actuate.
Highlights
- Maintained switch function keeps circuit open until manual reset
- 165 ft maximum cable span covers long conveyor runs
- 1NO/1NC contact form provides both normal and emergency signalling
- NEMA 1, 12, 4 rating protects against dust and water ingress
- Zamak case material delivers rugged industrial durability
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Should I pick the single-end or double-end mounting version for a 165 ft cable run?
The switch uses single-end mounting and is rated for a maximum cable span of 165 ft.
What does the 3 A @ 240 V AC contact rating mean when the switch is installed in a control circuit?
It can safely switch up to 3 amps at 240 volts AC in the maintained emergency-stop circuit.
Which NEMA ratings apply and what environments do they cover in practice?
The enclosure meets NEMA 1, 4 and 12, giving protection against indoor dust, splashing water and oil or coolant drips.
