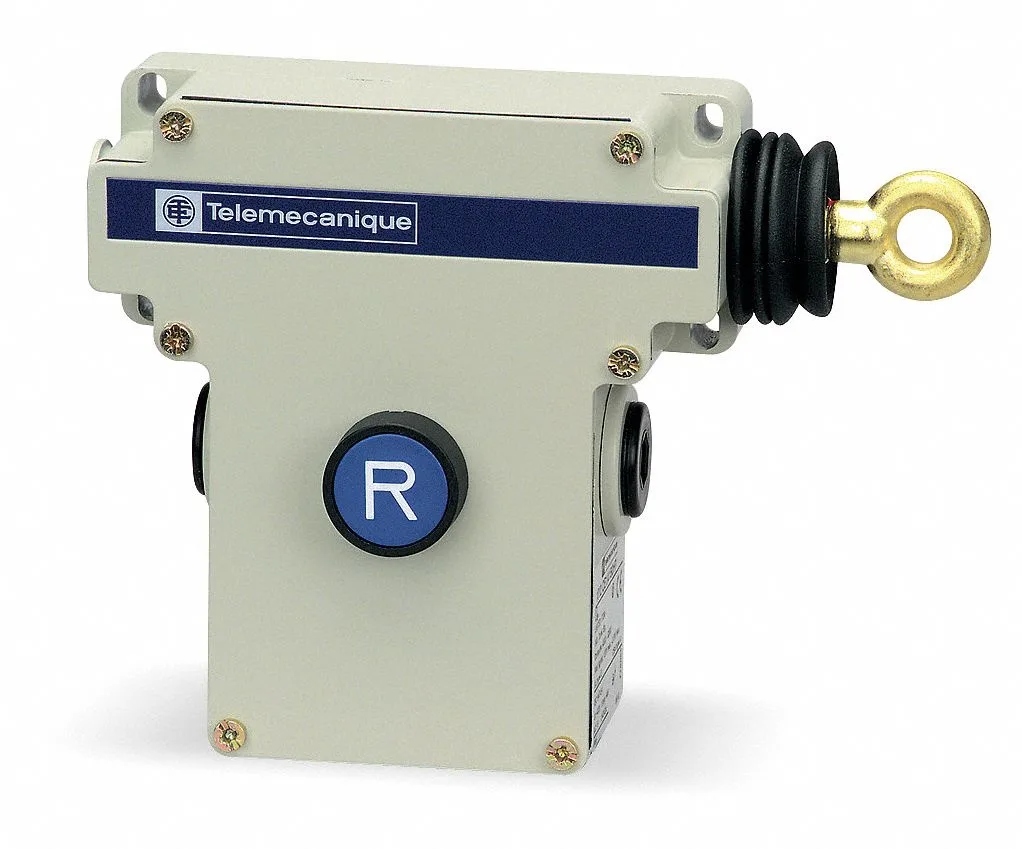

Telemecanique Sensors XY2CE1A150H7 emergency cable pull switch 1NO/1NC 165 ft
Emergency cable pull switch covers up to 165 ft span with 1NO/1NC contacts rated 3 A at 240 V AC and 0.27 A at 250 V DC
- Maintained switch function holds state until manual reset
- 1NO/1NC contacts suit safety-circuit wiring
- 165 ft max cable span covers long conveyor runs
- NEMA 1, 12, 4 rating resists dust and water ingress
- Zamak housing with 1/2 in NPT entry simplifies installation
Emergency cable pull switch for extended spans
The Telemecanique Sensors XY2CE1A150H7 is a maintained-function emergency stop device designed for single-cable spans up to 165 ft. It features a 1NO/1NC contact form housed in a Zamak enclosure rated NEMA 1, 12, and 4. A push-button reset allows deliberate restart after actuation. The unit mounts at a single end with cable entry on the right side via a 1/2 in NPT wiring entry.
Suited for long conveyor runs and perimeter guarding
This switch suits safety circuits requiring a single continuous pull cable over long distances, such as conveyor lines or large machine perimeters. The maintained action ensures the stop condition persists until the reset button is pressed. It is not suited for applications needing dual-cable redundancy, integrated indicator lights, or left-side cable entry. Buyers needing momentary switch function or higher DC current capacity should look elsewhere.
Handles 10 A thermal load with 165 ft cable headroom
The contact block carries a thermal rating of 10 A and switches 3 A at 240 V AC or 0.27 A at 250 V DC. This provides headroom for standard safety relay coils and contactor circuits. The 165 ft maximum span covers extensive linear hazards without intermediate supports. At the rated DC level the switching capacity is limited, so high-current DC loads require separate isolation. The 9.0 in by 9.02 in by 4.13 in housing fits standard industrial mounting footprints.
Highlights
- Maintained switch function holds state until manual reset
- 1NO/1NC contacts suit safety-circuit wiring
- 165 ft max cable span covers long conveyor runs
- NEMA 1, 12, 4 rating resists dust and water ingress
- Zamak housing with 1/2 in NPT entry simplifies installation
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What cable length can I run with the 165 ft maximum span?
The switch is rated for a single cable run of up to 165 ft; install the cable and tension it according to the single-end mounting style.
Will the 1NO/1NC contacts work with my existing 240 V AC control circuit?
Yes, the AC contact rating is 3 A @ 240 V and the thermal amperage is 10 A, so it matches standard 240 V control circuits.
How do I confirm the switch has latched correctly after pulling the cable?
The maintained switch function holds the 1NO/1NC contacts in the actuated position until you press the push-button reset, giving a clear mechanical indication.
