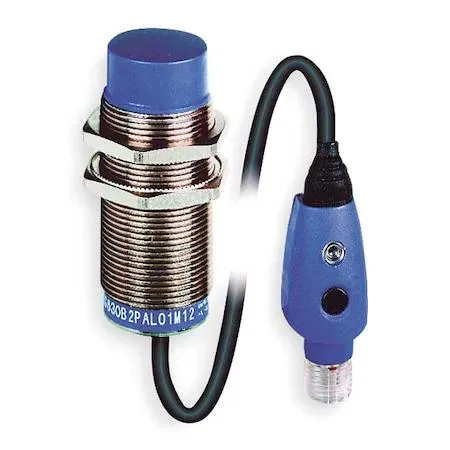

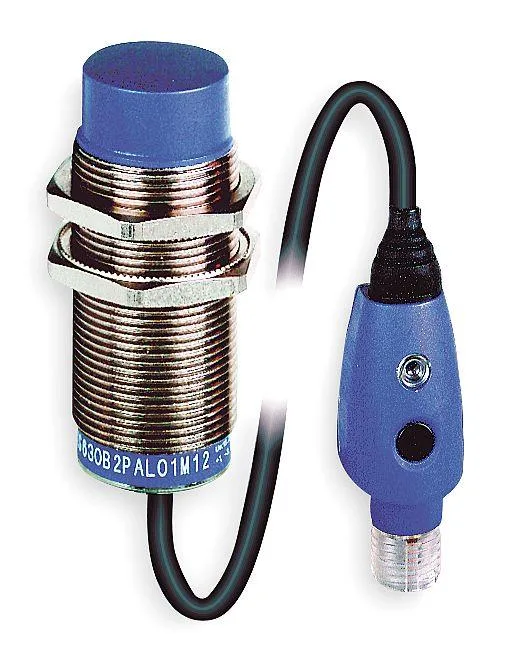

Telemecanique Sensors XS630B2PAL01M12 inductive proximity sensor
A 30 mm shielded inductive proximity sensor detecting metal up to 18 mm with a 12 to 24 V DC supply, 3-wire PNP NO output, M12 connector and IP67/IP69K protection
- Detects targets up to 18 mm away with a 1000 Hz operating frequency
- Shielded 30 mm cylindrical housing rated IP67 and IP69K for harsh environments
- Nickel-plated brass case withstands temperatures from -13 to 158 degrees F
- 3-wire PNP NO output connects via 4-pin M12 connector for simple integration
- Operates on 12 to 24 V DC with a maximum load current of 100 mA
Cylindrical Inductive Proximity Sensor
This 30 mm diameter inductive proximity sensor detects metal targets up to 18 mm away. It operates on 12 to 24V DC power and uses a 3-wire PNP output circuit that switches normally open. The 4-pin M12 connector provides a standard industrial interface for quick installation.
Voltage and Connector Compatibility
Verify that your control system supplies 12 to 24V DC and can accept a PNP normally-open signal. Ensure the 4-pin M12 connector matches your cable or junction box wiring. The sensor draws a maximum load current of 100 mA, so confirm the input card or PLC channel supports this rating.
Sustained Operation in Harsh Environments
Rated IP67 and IP69K, the nickel-plated brass housing resists water jets, high-pressure washdown and dust ingress. NEMA 4X certification confirms corrosion protection for outdoor or washdown duty. The operating temperature range spans -13 to 158 degrees F, and the 1,000 Hz switching frequency remains stable during continuous cycling.
Highlights
- Detects targets up to 18 mm away with a 1000 Hz operating frequency
- Shielded 30 mm cylindrical housing rated IP67 and IP69K for harsh environments
- Nickel-plated brass case withstands temperatures from -13 to 158 degrees F
- 3-wire PNP NO output connects via 4-pin M12 connector for simple integration
- Operates on 12 to 24 V DC with a maximum load current of 100 mA
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What comes in the box with the XS630B2PAL01M12 sensor and do I need a separate cable?
The sensor ships with the cylindrical body and integrated M12 connector. A 4-pin M12 mating cable is not included and must be purchased separately.
Should I choose the 12 V or 24 V supply for this 30 mm shielded sensor?
The unit accepts 12 to 24 V DC, so either voltage within that range works. Select the voltage that matches your existing control-circuit supply.
What does the 18 mm detecting distance mean when the sensor is mounted in a steel fixture?
The 18 mm figure is the maximum sensing range on a standard mild-steel target. Mounting in ferrous metal reduces the effective range, so allow clearance or use the supplied non-flush mounting guidelines.
