Telemecanique Sensors XS630B1PBL2 Inductive Proximity Sensor 30 mm

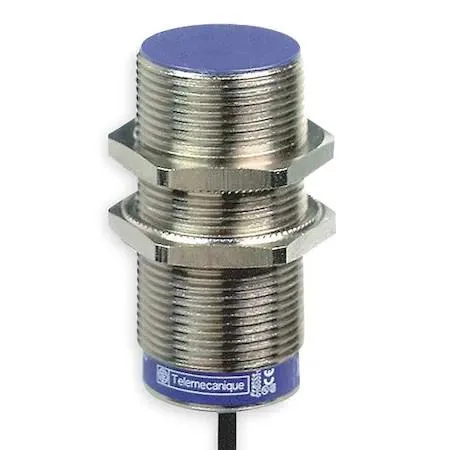

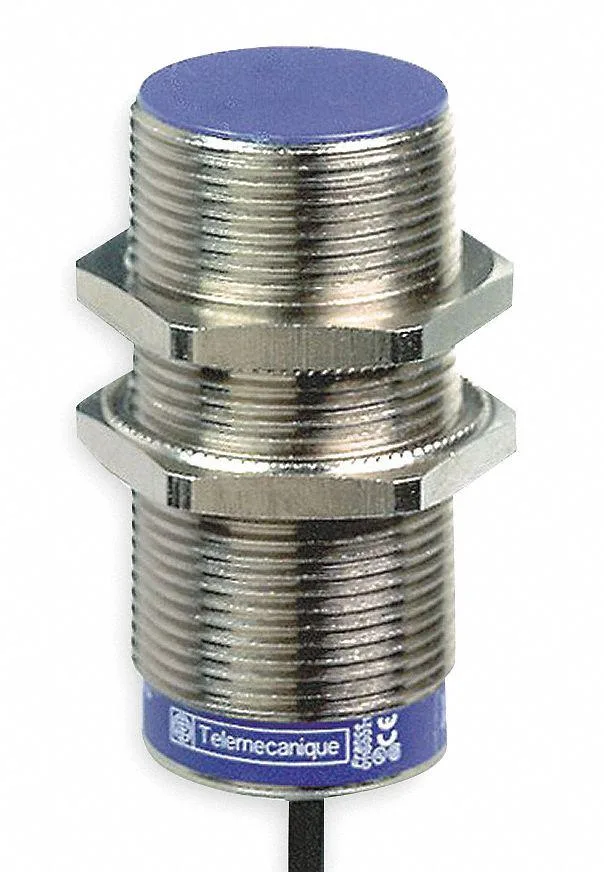

Cylindrical inductive proximity sensor with a 30 mm diameter, 15 mm sensing range and 12 to 24 V DC supply in a shielded nickel-plated brass housing
- Reliable detection with 15 mm maximum sensing range
- Durable shielded design resists damage in harsh environments
- Wide 12 to 24 V DC supply fits many control systems
- NEMA 4X, IP68 and IP69K ratings withstand washdown and dust
- Nickel-plated brass housing endures extreme -13 to 158 °F temperatures
Industrial Sensing Range
The Telemecanique Sensors XS630B1PBL2 is a cylindrical inductive proximity sensor built for machine automation and industrial control systems. Its 30 mm diameter and shielded construction allow flush mounting in metal structures. The sensor operates on 12 to 24V DC and provides a 3-wire PNP normally closed output for direct integration with programmable logic controllers.
Upgrade From Basic Switches
This unit replaces mechanical limit switches that wear out from physical contact and contamination. The jump is worth it when the application demands non-contact detection up to 15 mm with a 500 Hz switching frequency for high-speed lines. Solid-state output eliminates bounce and reduces maintenance intervals on packaging or conveying equipment.
Cable And Environment Limits
The fixed 2 m cable sets the maximum distance to the controller unless a junction box is added. Nickel-plated brass housing meets NEMA 4X, IP68 and IP69K for wash-down and high-pressure cleaning. Operating temperature spans -13 to 158 degrees F, and the 200 mA load ceiling restricts use to signalling rather than direct actuator drive.
Highlights
- Reliable detection with 15 mm maximum sensing range
- Durable shielded design resists damage in harsh environments
- Wide 12 to 24 V DC supply fits many control systems
- NEMA 4X, IP68 and IP69K ratings withstand washdown and dust
- Nickel-plated brass housing endures extreme -13 to 158 °F temperatures
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What diameter cut-out and thread does the 30 mm cylindrical sensor need for mounting?
The sensor body is 30 mm in diameter with a standard M30 thread, requiring a 30 mm clearance hole and matching threaded port for flush installation.
How do I wire the three-conductor cable, and which colour is commonly mistaken for the load wire?
Connect brown to 12-24 V DC, blue to 0 V, and black to the load; the black wire is the switching output, not an additional supply, and is often misidentified.
When should I expect to replace the 2 m PVC cable on this IP68/IP69K unit?
Inspect the cable jacket at each scheduled shutdown; replace it once cracking, abrasion or permanent deformation appears, typically after several years in harsh wash-down cycles.
