Telemecanique Sensors XS630B1NAM12 Inductive Proximity Sensor 30 mm
A 30 mm shielded inductive proximity sensor detects metal up to 15 mm away using a 12–48 V DC supply and a 4-pin M12 connector
- 30 mm cylindrical format fits compact machine spaces
- 12 to 48 V DC supply works with common industrial power rails
- 15 mm shielded sensing range detects metal targets reliably
- IP67 and IP69K ratings withstand wash-down and high-pressure cleaning
- 500 Hz switching frequency supports fast automated cycles
Industrial Detection
The Telemecanique Sensors XS630B1NAM12 is a cylindrical inductive proximity sensor built for machine-shop and automation tasks. Its 30 mm barrel and shielded construction suit close-range part presence checks on conveyors, tooling fixtures or press lines. The 4-pin M12 connector allows quick integration into standard DC control circuits.
Sensing Range
Rated for a maximum detecting distance of 15 mm, the sensor gives reliable metal detection with a 500 Hz switching frequency for repetitive cycling. The three-wire NPN output switches up to 200 mA at 12 to 48 V DC, covering typical PLC input modules. Applications needing longer range or higher load current will require a different device.
Environmental Resilience

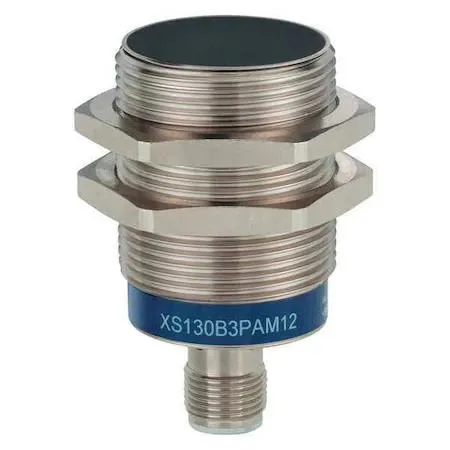

A nickel-plated brass housing rated IP67 and IP69K withstands wash-down, coolant splash and temporary immersion. The NEMA 4X rating adds corrosion resistance for harsh chemical environments. Operating temperature spans -13 to 158 degrees F, so the unit handles cold-start and high-ambient conditions without derating.
Highlights
- 30 mm cylindrical format fits compact machine spaces
- 12 to 48 V DC supply works with common industrial power rails
- 15 mm shielded sensing range detects metal targets reliably
- IP67 and IP69K ratings withstand wash-down and high-pressure cleaning
- 500 Hz switching frequency supports fast automated cycles
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Will the 30 mm cylindrical sensor fit alongside my existing M12 wiring harness?
The sensor uses a 4 pin M12 connector for its electrical connection
How can I verify the 15 mm detecting distance is working after installation?
The output mode is normally open so the signal appears only when a target enters the 15 mm range
What comes in the box and do I need a separate mounting bracket?
The case is nickel plated brass with a 72.2 mm length and shielded design for direct mounting
