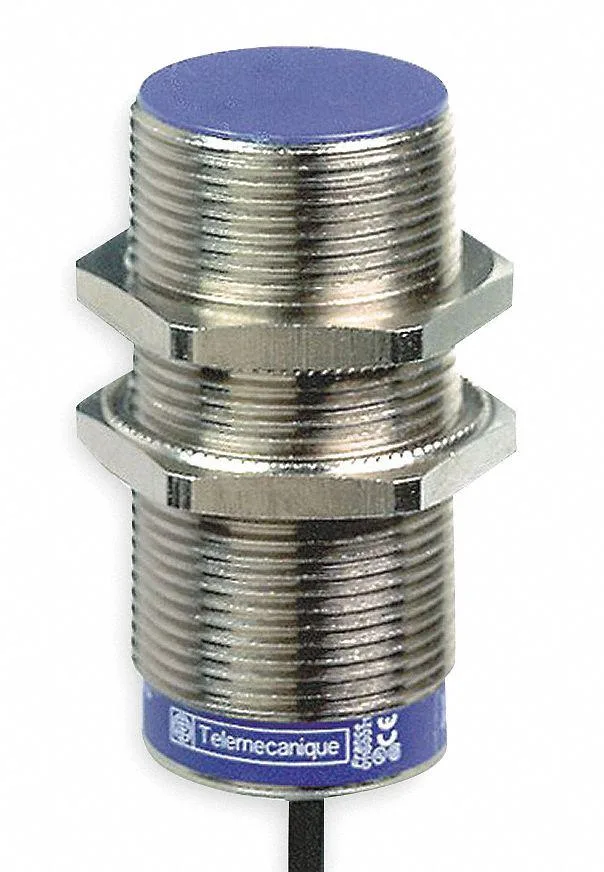

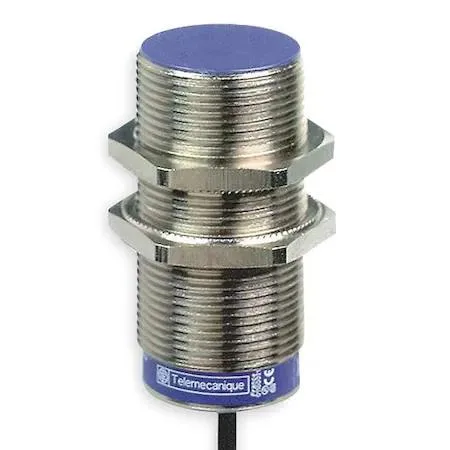

Telemecanique Sensors XS630B1MBL2 Inductive Proximity Sensor 30 mm
A shielded inductive proximity sensor detecting metal at 15 mm with a 24–240 V AC/DC two-wire NC output, IP68/IP69K nickel-plated brass body, and 2 m cable
- Detects metal targets up to 15 mm away for reliable presence sensing
- Operates on 24 to 240 V AC/DC supply without separate transformer
- IP68 and IP69K ratings withstand high-pressure washdown and immersion
- Nickel-plated brass housing resists corrosion in harsh industrial environments
- Functions from -13 °F to 158 °F for cold-storage and high-heat applications
Cylindrical inductive sensor for 30 mm mounting
The Telemecanique Sensors XS630B1MBL2 is a shielded inductive proximity sensor designed for 30 mm cylindrical mounting. It operates on a wide 24 to 240 V AC/DC supply, making it suitable for diverse industrial control circuits. The sensor provides a 2-wire NC output with a maximum load of 200 mA.
Sustained operation in harsh environments
Rated IP68 and IP69K with a NEMA 4X enclosure, the nickel-plated brass housing withstands high-pressure washdown and continuous immersion. An operating temperature range of -13 to 158 degrees F ensures reliable sensing during extended production runs. The 25 Hz AC and 500 Hz DC switching frequencies support consistent detection cycles.
15 mm maximum detecting distance
The shielded construction allows flush mounting while delivering a 15 mm sensing range on standard targets. This distance determines whether the sensor fits the application gap without mechanical interference. A 2 m pre-wired cable and 41 mm overall length complete the mechanical envelope.
Highlights
- Detects metal targets up to 15 mm away for reliable presence sensing
- Operates on 24 to 240 V AC/DC supply without separate transformer
- IP68 and IP69K ratings withstand high-pressure washdown and immersion
- Nickel-plated brass housing resists corrosion in harsh industrial environments
- Functions from -13 °F to 158 °F for cold-storage and high-heat applications
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
How much heat does the sensor generate when running continuously on a 240 V supply?
The sensor draws a maximum of 200 mA, so continuous power dissipation stays low within the -13 °F to 158 °F operating range.
What supply voltage must my system provide for the 24–240 V AC/DC input?
Any voltage between 24 V and 240 V AC or DC is accepted; the two-wire output connects directly in series with the load.
Will the 15 mm sensing range still trigger reliably through a 30 mm thick metal mounting bracket?
The shielded 30 mm barrel allows flush mounting in metal; the rated 15 mm detecting distance is measured with a standard target under those conditions.
