Telemecanique Sensors XS630B1MAL2 Inductive Proximity Sensor 30 mm
A 30 mm shielded inductive proximity sensor detects metal up to 15 mm away and operates on 24 to 240 V AC/DC with a 2-wire NO output
- Detects metal at 15 mm without contact
- Works on 24 to 240 V AC or DC supply
- Two-wire normally-open output simplifies wiring
- IP68 and IP69K sealing resists water jets and immersion
- Nickel-plated brass body withstands -13 °F to 158 °F extremes
Product Identity

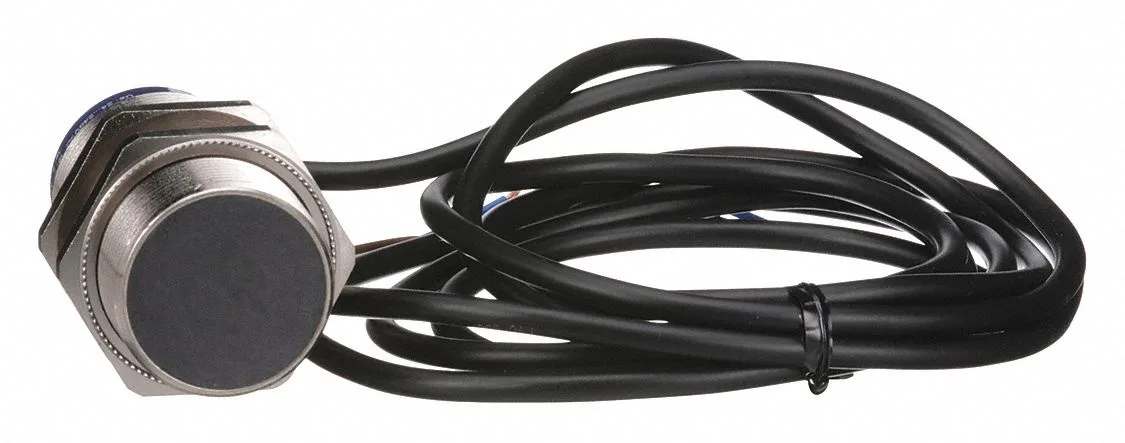

The Telemecanique Sensors XS630B1MAL2 is a shielded inductive proximity sensor with a 30 mm cylindrical brass housing. It detects metal targets up to 15 mm away and operates on a wide 24 to 240V AC/DC supply. The two-wire normally open output suits industrial automation and machinery monitoring tasks.
Installation Checks
Verify that the 24 to 240V AC/DC supply matches your control voltage before wiring the two-wire cable. Confirm the 15 mm sensing range meets the application gap and that the 41 mm body length fits the mounting bracket. The shielded design allows flush mounting in metal without reducing the specified detecting distance.
Thermal and Electrical Behaviour
The sensor operates reliably from -13 to 158 degrees Fahrenheit while drawing a maximum load current of 200 mA. AC switching runs at 25 Hz and DC switching at 500 Hz, so power dissipation stays low in normal cycling. IP68 and IP69K sealing protects the electronics from high-pressure washdown and prolonged immersion.
Highlights
- Detects metal at 15 mm without contact
- Works on 24 to 240 V AC or DC supply
- Two-wire normally-open output simplifies wiring
- IP68 and IP69K sealing resists water jets and immersion
- Nickel-plated brass body withstands -13 °F to 158 °F extremes
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Does the sensor ship with a mounting bracket or do I need to buy one separately?
The sensor body is a 30 mm nickel-plated brass cylinder with a 2 m pre-wired cable; no bracket is mentioned in the specifications.
I see only one model number — are there different sensing distances or output types to choose from?
This XS630B1MAL2 is a shielded 2-wire NO version with a 15 mm max detecting distance; other distances or output modes would carry different part numbers.
The spec lists 200 mA max load — what does that mean for a 24 V DC relay coil?
At 24 V DC the sensor can switch up to 200 mA, so a relay coil drawing 200 mA or less can be driven directly.
