Telemecanique Sensors

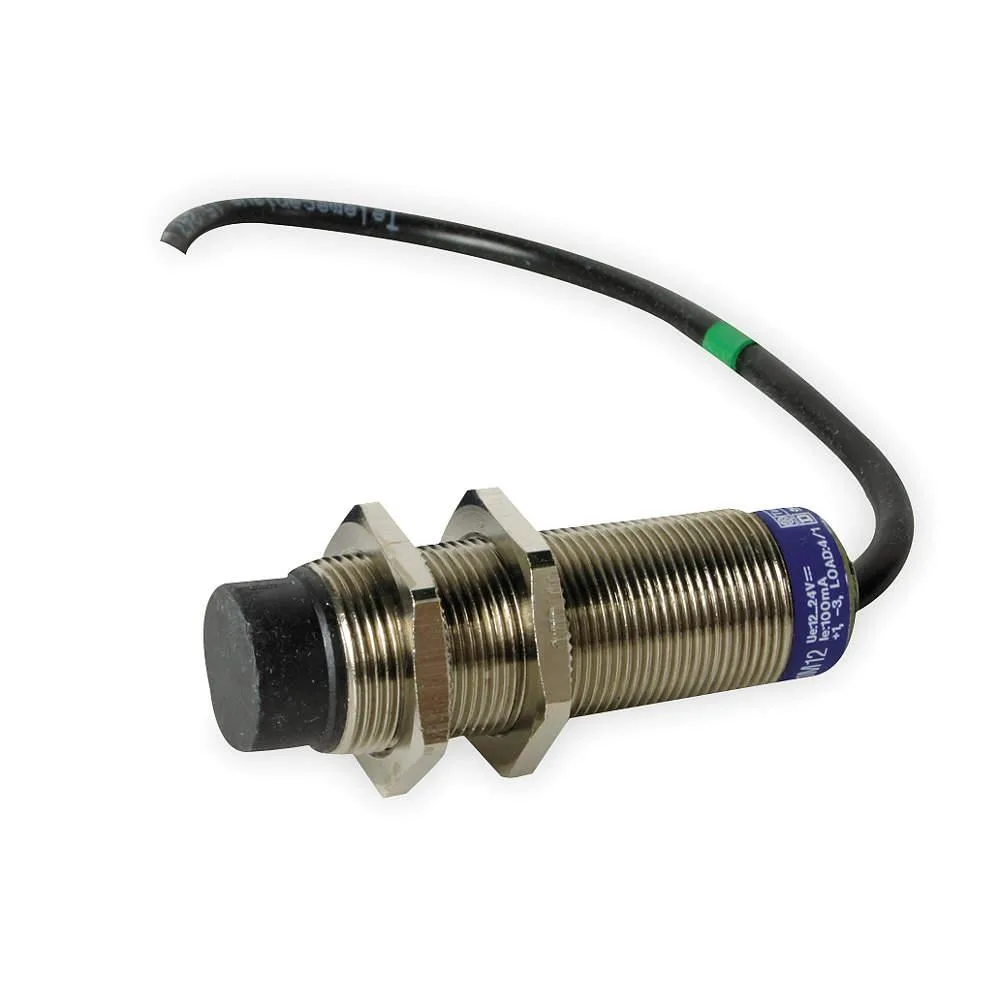

Telemecanique Sensors XS618B1MAL5 Inductive Proximity Sensor 18mm
An 18 mm shielded inductive proximity sensor with a 5 m cable, 24–240 V AC/DC supply, 8 mm sensing range and IP68/IP69K sealing
- Detects metal at 8 mm sensing range
- Wide 24 to 240 V AC/DC supply voltage
- IP68 and IP69K rated for washdown
- 5 m cable simplifies installation
- Nickel-plated brass housing resists corrosion
18 mm Inductive Proximity Sensor
The Telemecanique Sensors XS618B1MAL5 is an 18 mm inductive proximity sensor designed for industrial automation. It detects metal targets at up to 8 mm with a normally open, two-wire output. The unit operates on 24 to 240 V AC or DC and is rated IP68 and IP69K for harsh environments.
Straightforward Cable Installation
A 5 m pre-wired cable removes the need for separate connectors and simplifies wiring in the field. The nickel-plated brass barrel threads into standard 18 mm mounting points. Ensure the supply voltage stays within the 24 to 240 V range and that load current does not exceed 200 mA to avoid damage.
For Machine Builders Needing Wash-Down Resistance
This sensor suits packaging, food-processing and outdoor equipment where high-pressure cleaning occurs. Buyers who require a normally closed output, a shorter cable or a different sensing distance should look at other models.
Highlights
- Detects metal at 8 mm sensing range
- Wide 24 to 240 V AC/DC supply voltage
- IP68 and IP69K rated for washdown
- 5 m cable simplifies installation
- Nickel-plated brass housing resists corrosion
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
How can I confirm the sensor is detecting metal at the rated 8 mm distance after installation?
Power the sensor within the 24 to 240 V AC/DC range, bring a metal target to within 8 mm of the 18 mm sensing face, and verify the load (up to 200 mA) switches on; the two-wire output will close the circuit when the target is present.
What is included in the box and what must be purchased separately?
The sensor comes with a 5 m pre-wired cable and a nickel-plated brass body rated IP68 and IP69K; mounting brackets, lock nuts, or a separate power supply are not included and must be sourced separately.
Which output configuration should I choose for a simple on/off control circuit?
The XS618B1MAL5 is a normally open (NO) two-wire model, so it completes the circuit only when metal is detected — ideal for direct series connection with a relay or PLC input without needing a separate signal wire.
