Telemecanique Sensors XS612B1PAL2 Inductive Proximity Sensor 12mm PNP NO
A 12 mm shielded inductive proximity sensor with PNP normally-open output, 4 mm sensing range, 2 m cable and IP68/IP69K nickel-plated brass housing
- Detects metal at 4 mm with 12 mm barrel
- Shielded inductive sensing resists interference at 2 500 Hz
- PNP NO 3-wire output handles 200 mA load
- Nickel-plated brass housing rated IP68 and IP69K
- Operates from 12 to 48 V DC across -13 to 158 °F
12 mm Inductive Sensor for Industrial Detection

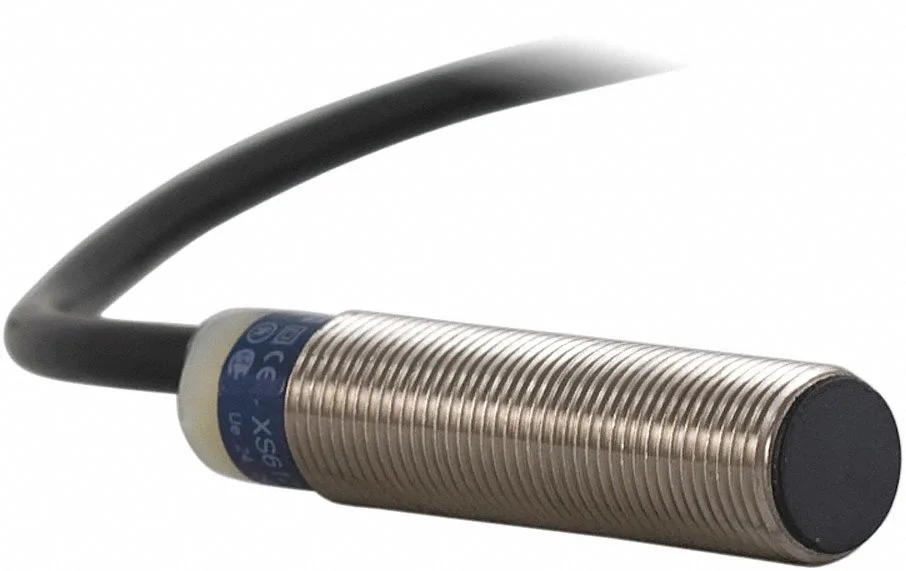

The Telemecanique Sensors XS612B1PAL2 is a shielded inductive proximity sensor built for 12 mm mounting holes. It targets machine builders and maintenance teams who need reliable metal detection on automated lines. A 4 mm sensing range suits close-range presence checks. The PNP normally-open output integrates directly with standard PLC input modules.
Nickel-Plated Brass Housing
The cylindrical case uses nickel-plated brass to resist coolant, oil and mechanical wear. Full epoxy potting meets NEMA 4X, IP68 and IP69K ratings, so the sensor survives high-pressure washdowns and continuous immersion. A fixed 2 m cable exits the rear, removing the need for a separate connector and reducing leak paths in wet environments.
Replaces Worn 12 mm Sensors
Swap out a failed 12 mm inductive sensor without re-drilling the mounting bracket. The 12 to 48 V DC supply range lets the unit replace older sensors that required a single fixed voltage. The jump is worth it when the application demands IP69K washdown survival or a 2.5 kHz switching frequency for faster cycle times.
Highlights
- Detects metal at 4 mm with 12 mm barrel
- Shielded inductive sensing resists interference at 2 500 Hz
- PNP NO 3-wire output handles 200 mA load
- Nickel-plated brass housing rated IP68 and IP69K
- Operates from 12 to 48 V DC across -13 to 158 °F
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What voltage range does the 3-wire PNP output circuit accept?
The sensor operates from 12 to 48 V DC on its 3-wire PNP output circuit.
What thread size and clearance does the 12 mm shielded barrel need?
The 12 mm nickel-plated brass barrel is 41 mm long and requires an M12×1 mounting hole with a flat seat for the shielded face.
How do I wire the brown, black and blue leads so the NO output works?
Connect brown to +12–48 V DC, blue to 0 V, and the black lead becomes the switched PNP output that closes when metal enters the 4 mm sensing zone.
