Telemecanique Sensors XS612B1NAM12 inductive proximity sensor
A 12 mm shielded inductive sensor with NPN normally-open output, 4 mm range, 2 500 Hz switching, IP67/IP69K sealing and M12 connector
- 12 mm detection range suits tight machine spaces
- Shielded inductive design ignores nearby metal interference
- IP67 and IP69K sealing withstands wash-down and immersion
- 12–48 V DC supply fits common control voltages
- 200 mA NPN NO output drives PLC inputs directly
12 mm inductive proximity sensor

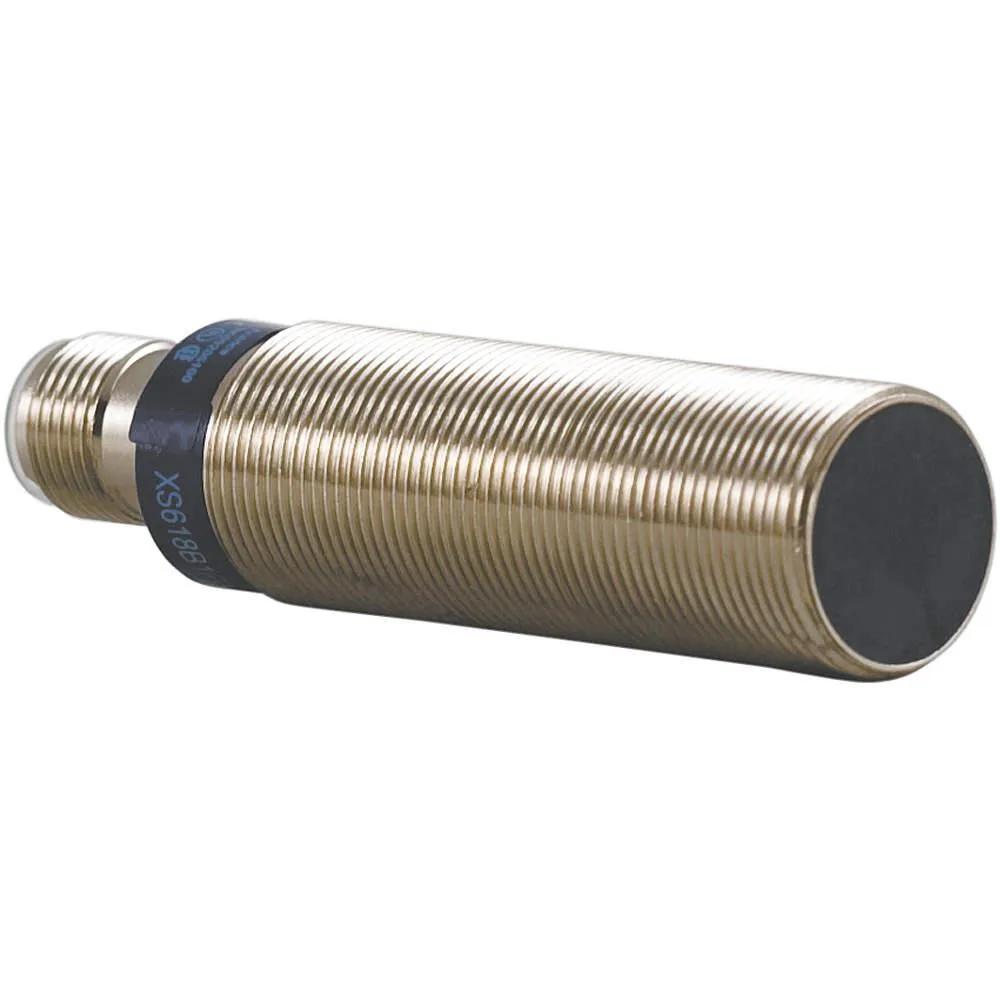

This 12 mm inductive proximity sensor detects metal targets at up to 4 mm using a shielded sensing face. It operates on 12 to 48V DC and provides a 3-wire NPN normally open output through a 4-pin M12 connector. The nickel-plated brass housing is rated IP67 and IP69K for wash-down environments.
Shielded sensing and voltage range
Shielded construction allows flush mounting in metal without affecting the 4 mm detecting distance. The 12 to 48V DC supply range suits common industrial control voltages, while the 2,500 Hz operating frequency supports fast cycling applications. The 200 mA maximum load current limits the sensor to driving small relays or PLC inputs directly.
NPN normally open output
The sensor delivers a 3-wire NPN normally open signal, sinking current to the load when a target is present. Controllers expecting a PNP sourcing output or a normally closed logic state cannot use this device without additional circuitry. Buyers needing a complementary output type or longer sensing range should select a different model.
Highlights
- 12 mm detection range suits tight machine spaces
- Shielded inductive design ignores nearby metal interference
- IP67 and IP69K sealing withstands wash-down and immersion
- 12–48 V DC supply fits common control voltages
- 200 mA NPN NO output drives PLC inputs directly
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Should I pick the 12 mm or 41 mm version for my mounting hole?
The sensor has a 12 mm barrel diameter and a 41 mm overall length, so the 12 mm figure matches the mounting hole size.
What does the 4 mm detecting distance mean when the sensor is installed?
It will reliably detect a standard metal target up to 4 mm from the sensing face under normal conditions.
How does the M12 connector and 200 mA limit affect my wiring?
The 4-pin M12 connector carries the 12–48 V DC supply and the NPN normally-open output, which can switch up to 200 mA.
