Telemecanique Sensors XS530B1PAM12 inductive proximity sensor 30mm PNP NO
Inductive proximity sensor detects metal at 10 mm, runs on 12 to 24 V DC, and fits a 30 mm threaded hole
- Detects metal targets up to 10 mm away
- Shielded inductive design ignores surrounding metal interference
- Three-wire PNP normally-open output simplifies PLC wiring
- IP67 and IP69K ratings survive wash-down and immersion
- Operates from 12 to 24 V DC across -13 to 158 °F
Industrial 30 mm inductive sensor
The Telemecanique Sensors XS530B1PAM12 is a cylindrical inductive proximity sensor built for machine automation. It detects metal targets at distances up to 10 mm using a 12 to 24 V DC supply. The PNP normally open output switches a maximum load of 200 mA at a 1 000 Hz operating frequency.

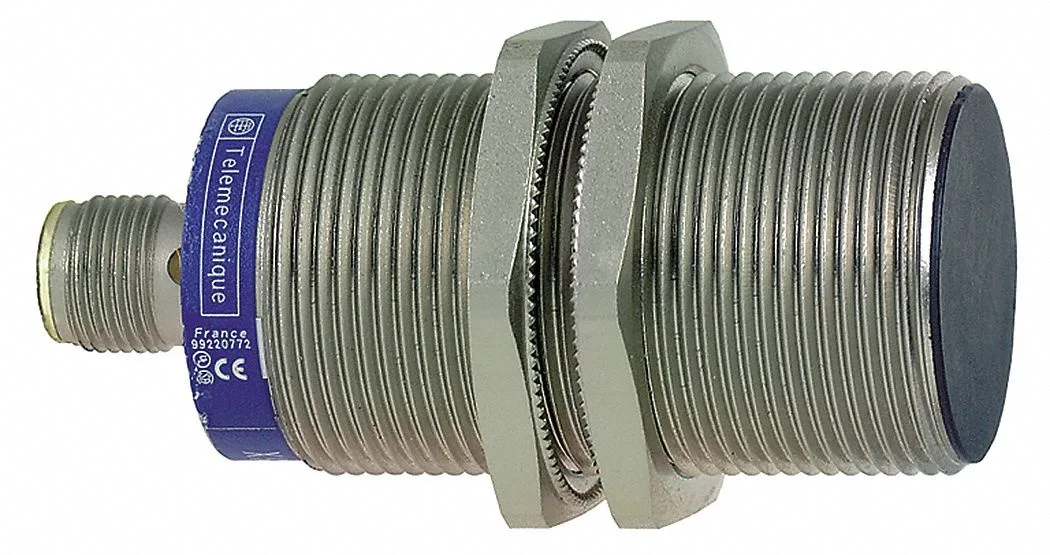

Shielded nickel-plated brass housing
A 30 mm diameter nickel-plated brass barrel measures 55 mm in length and carries IP67 and IP69K ratings alongside NEMA 4X. The shielded construction allows flush mounting in metal brackets. A 4-pin M12 connector provides a secure, tool-free electrical connection suited to wash-down environments.
Replaces worn 3-wire PNP sensors
This unit serves as a direct drop-in replacement for failed or ageing 3-wire PNP NO sensors with the same 12 to 24 V DC supply and 10 mm sensing range. The upgrade is worthwhile when the application demands IP69K ingress protection or an operating temperature span of -13 to 158 °F.
Highlights
- Detects metal targets up to 10 mm away
- Shielded inductive design ignores surrounding metal interference
- Three-wire PNP normally-open output simplifies PLC wiring
- IP67 and IP69K ratings survive wash-down and immersion
- Operates from 12 to 24 V DC across -13 to 158 °F
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What does the 4-pin M12 connector cap at for this sensor?
The 4-pin M12 connector carries the 12 to 24 V DC supply and the 3-wire PNP NO output, rated for a maximum load of 200 mA.
What clearance does the 30 mm barrel and 55 mm length need to mount?
The nickel-plated brass barrel is 30 mm in diameter and 55 mm long, so the mounting hole and surrounding space must accommodate those dimensions.
How is the sensor wired, and which step is often missed?
Connect brown to 12–24 V DC, blue to 0 V, and black to the load for the PNP NO output; the step often missed is tightening the M12 plug fully to keep the IP67 and IP69K seals intact.
