Telemecanique Sensors XS530B1DAL2 Inductive Proximity Sensor 30 mm
A 30 mm inductive proximity sensor detects metal up to 10 mm with a 12 to 48 V DC two-wire output rated IP68 and IP69K
- Detects metal up to 10 mm away
- Operates on 12 to 48 V DC supply
- Withstands -13 to 158 °F environments
- Rated IP68 and IP69K for wash-downs
- Nickel-plated brass body resists corrosion

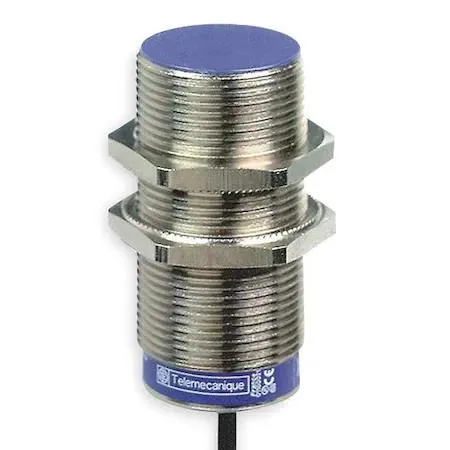

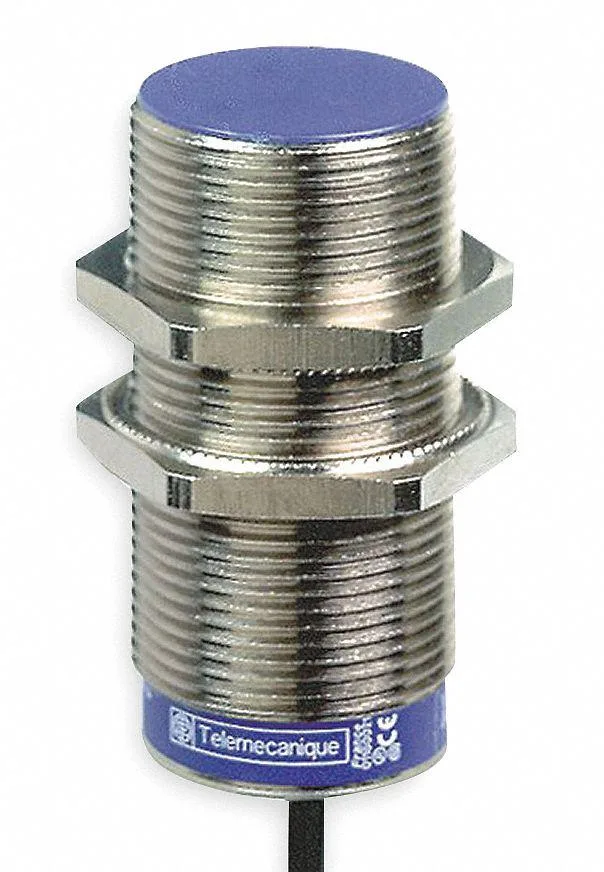

Cylindrical Inductive Sensor for 30 mm Mounting
This inductive proximity sensor fits a 30 mm cylindrical mounting hole and detects metal targets up to 10 mm away. It operates on 12 to 48V DC and switches a 2-wire normally open output with a maximum load of 100 mA. The nickel-plated brass housing is rated IP68 and IP69K for harsh wash-down environments.
Detection Speed and Wiring Limits
The sensor switches at 2,000 Hz, which sets the maximum pulse rate the control system can read reliably. A 2-wire circuit means the load must be powered from the same supply as the sensor, so voltage drop across the cable and load must stay within the 12 to 48V window. The 2 m cable length fixes the distance to the termination point unless a junction box is added.
Pre-Installation Checks
Verify that the machine frame provides a 30 mm clearance hole and that the 41 mm body length fits behind the mounting surface. Confirm the supply voltage sits between 12 and 48V DC and that the load current does not exceed 100 mA. Ensure the ambient temperature stays within -13 to 158 degrees F and that the IP68/IP69K rating matches the expected exposure to water and cleaning chemicals.
Highlights
- Detects metal up to 10 mm away
- Operates on 12 to 48 V DC supply
- Withstands -13 to 158 °F environments
- Rated IP68 and IP69K for wash-downs
- Nickel-plated brass body resists corrosion
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Should I pick the 30 mm version or a different diameter?
This sensor has a 30 mm cylindrical body with a 10 mm max detecting distance, so choose it when the mounting hole and sensing range match those dimensions.
What does the 2,000 Hz operating frequency mean on the machine?
The 2,000 Hz frequency allows the sensor to detect up to two thousand target passages per second, suitable for fast automated cycles.
How does the 2-wire DC connection limit the installation?
The 2-wire 12 to 48 V DC cable carries both power and signal, so the load must stay below 100 mA and the wiring run uses only two conductors.
