Telemecanique Sensors XS512BLPAM12 inductive proximity sensor 12 mm
Shielded 12 mm inductive proximity sensor detects metal at 2 mm, runs on 12 to 48 V DC with a 3-wire PNP output and 4-pin M12 connector.
- Detects metal at 2 mm range with 12 mm barrel
- Operates on 12 to 48 V DC supply voltage
- Switches at 2 500 Hz for fast response
- Withstands wash-down with IP67 and IP69K sealing
- Functions from -13 °F to 158 °F operating range
Industrial 12 mm proximity sensor
The Telemecanique Sensors XS512BLPAM12 is a cylindrical inductive proximity sensor with a 12 mm barrel diameter and a shielded sensing face. It detects metal targets at a maximum distance of 2 mm and operates on a 12 to 48 V DC supply. The 3-wire PNP output is normally open and rated for a maximum load current of 200 mA. It suits machine builders and maintenance engineers who need reliable presence detection in automated equipment.
2 500 Hz switching and voltage window
The sensor switches at up to 2 500 Hz, setting a practical limit on how fast consecutive targets can be resolved. Operation is confined to the 12 to 48 V DC range, so the control system must provide a supply within these bounds. The 200 mA output ceiling restricts the load to compatible PLC inputs or small relays without an interposing contactor. Exceeding either the frequency or the current rating will cause missed counts or output damage.
IP67 and IP69K nickel-plated brass housing

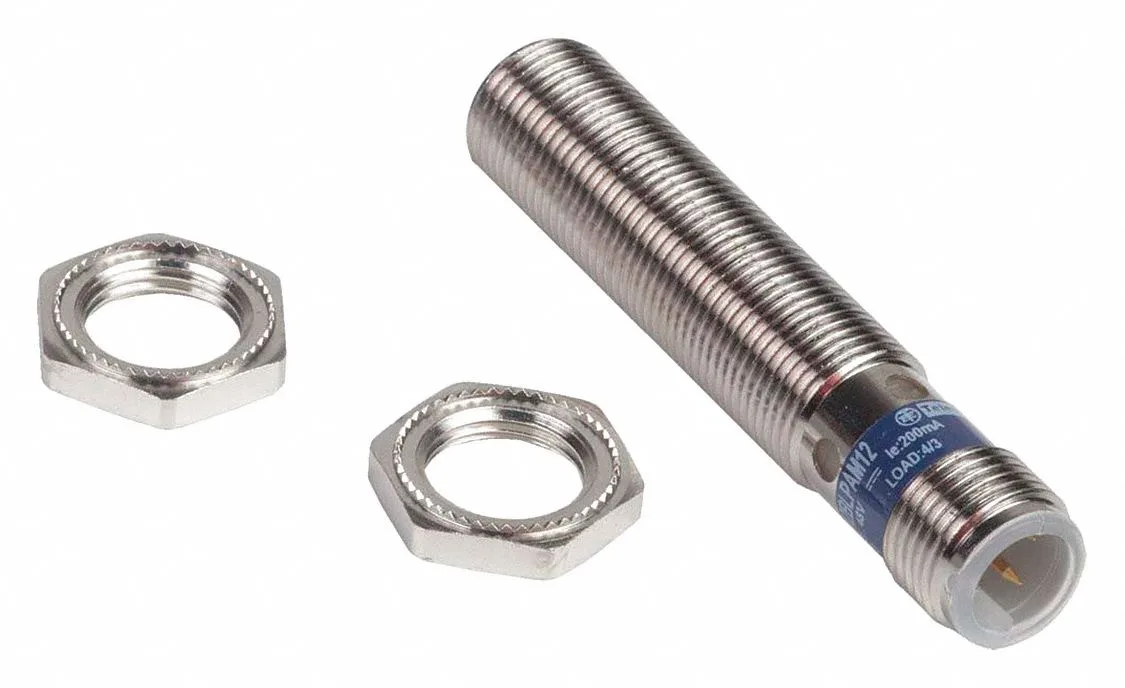

The case is nickel-plated brass, 62 mm long, and sealed to IP67 and IP69K for resistance to water jets and high-pressure washdown. A 4-pin M12 connector provides a secure, keyed electrical connection that resists vibration loosening. The wide operating temperature span of -13 to 158 degrees Fahrenheit allows mounting near heat sources or in unheated outdoor enclosures without derating.
Highlights
- Detects metal at 2 mm range with 12 mm barrel
- Operates on 12 to 48 V DC supply voltage
- Switches at 2 500 Hz for fast response
- Withstands wash-down with IP67 and IP69K sealing
- Functions from -13 °F to 158 °F operating range
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Should I choose the 12 mm shielded version or a non-shielded alternative for flush mounting?
The shielded 12 mm barrel allows flush mounting in metal without interference, giving a 2 mm sensing range; non-shielded models need clearance but reach farther.
What does the 2 500 Hz operating frequency mean for detection speed on a production line?
At 2 500 Hz the sensor can resolve 2 500 switching events per second, fast enough for most high-speed counting or positioning tasks on conveyors.
How does the 4-pin M12 connector limit the wiring options in the field?
The 4-pin M12 carries 12–48 V DC supply, PNP NO output and ground in a single keyed plug, so you cannot use 2-wire or NPN schemes without a different cable.
