Telemecanique Sensors XS512B1MAL2 inductive proximity sensor 12 mm 24 to 240 V AC DC
A shielded 12 mm inductive sensor detects metal at 2 mm, runs on 24 to 240 V AC/DC, and withstands IP68 and IP69K wash-down
- 12 mm sensing range detects metal targets at close quarters
- 24 to 240 V AC/DC supply works across wide voltage systems
- IP68 and IP69K sealing withstands high-pressure washdown
- Nickel-plated brass housing resists corrosion in harsh environments
- 2 m pre-wired cable simplifies installation without extra connectors

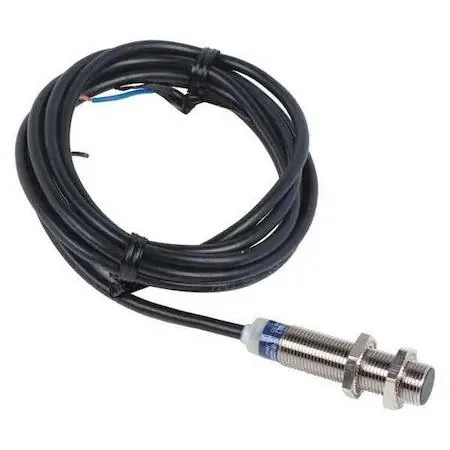

Cylindrical inductive proximity sensor
The Telemecanique Sensors XS512B1MAL2 detects metal objects at a 2 mm range using a 12 mm shielded barrel. It operates on 24 to 240 V AC/DC supply voltage, making it suitable for a wide range of industrial control circuits. The two-wire normally open output simplifies wiring for automation tasks.
Stable switching up to 2 500 Hz
The sensor handles an operating frequency of 2 500 Hz for reliable detection on fast-moving lines. A maximum load current of 200 mA supports direct control of contactors or PLC inputs without intermediate relays. Performance remains consistent across the full temperature span from -13 to 158 degrees F.

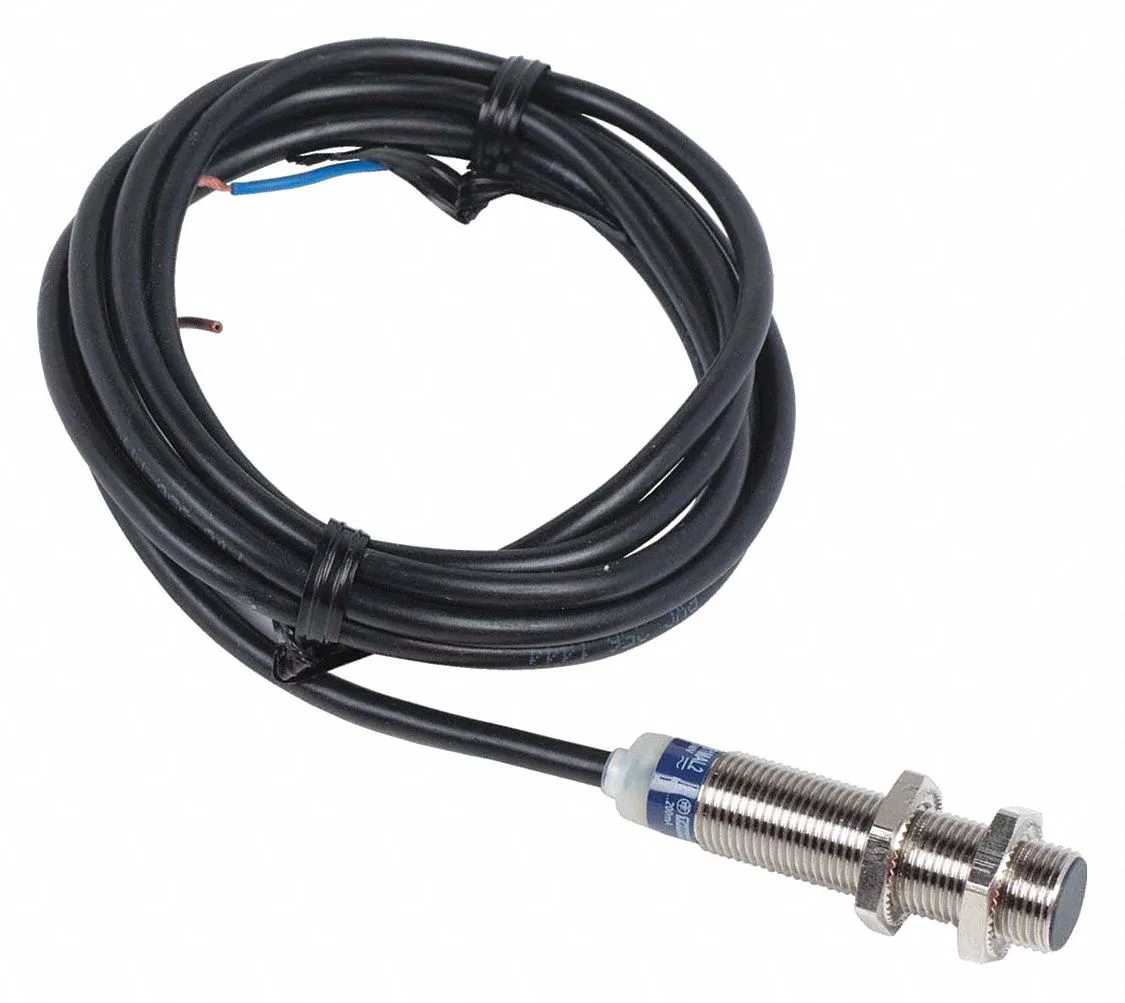

Nickel-plated brass housing rated IP68 and IP69K
The 53 mm long case resists corrosion and withstands high-pressure washdowns common in food or outdoor equipment. A fixed 2 m cable provides a permanent connection without separate plug assemblies. This construction suits machines where mounting space is limited but environmental sealing is critical.
Highlights
- 12 mm sensing range detects metal targets at close quarters
- 24 to 240 V AC/DC supply works across wide voltage systems
- IP68 and IP69K sealing withstands high-pressure washdown
- Nickel-plated brass housing resists corrosion in harsh environments
- 2 m pre-wired cable simplifies installation without extra connectors
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Does the sensor run hot or draw much power when operated continuously at 240 V AC?
Rated for a maximum load of 200 mA across the 24 to 240 V AC/DC supply range, so heat and consumption stay low even during all‑day operation.
What supply voltage and wiring must already be in place for the 2‑wire NO output to work?
A 24 to 240 V AC/DC source and a two‑wire series connection to the load are required; the sensor comes with a 2 m cable for direct termination.
Will the 12 mm nickel‑plated brass body and IP68/IP69K rating fit the same mounting holes as older 12 mm sensors?
Yes — the 12 mm diameter, 53 mm length and shielded 2 mm sensing face match the standard 12 mm form factor used by legacy inductive sensors.
