Telemecanique Sensors XS508B1DAL2 Inductive Proximity Sensor 8 mm
8 mm shielded inductive proximity sensor detects metal at 1.5 mm with 2-wire NO output on 12 to 24 V DC, IP67 and NEMA 4X rated in 303 stainless steel housing
- 8 mm cylindrical sensor fits tight machine spaces
- 12 to 24 V DC supply works with standard control voltages
- 5 mm shielded sensing ignores nearby metal
- IP67 and NEMA 4X sealing resists wash-down and dust
- 303 stainless steel body withstands -13 to 158 °F extremes
Telemecanique 8 mm Inductive Sensor

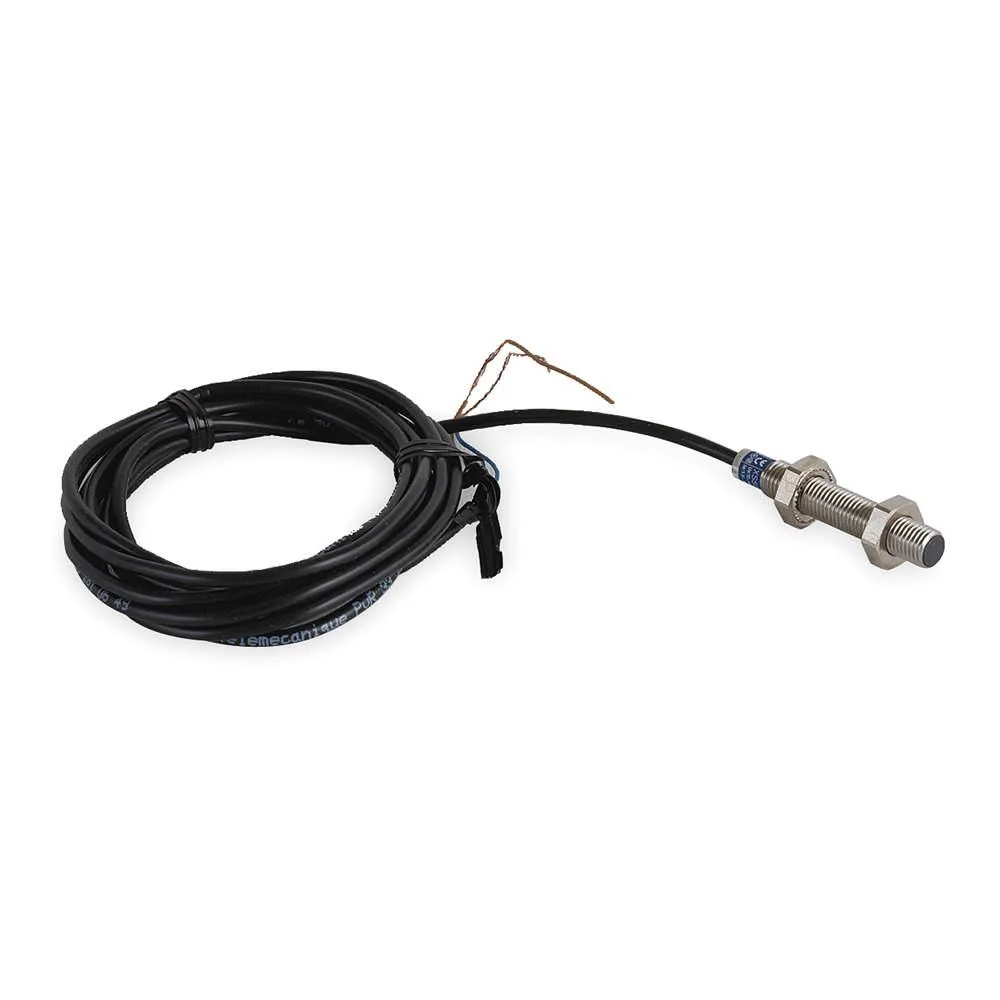

This Telemecanique Sensors XS508B1DAL2 is a cylindrical inductive proximity sensor designed for industrial automation and machine-shop applications. It detects metal targets at a maximum distance of 1.5 mm using a shielded 8 mm sensing face. The unit operates on a 12 to 24V DC supply and provides a normally open two-wire output with a 100 mA load capacity. A 2 m cable and IP67-rated 303 stainless-steel housing complete the package.
Suited for Shielded Short-Range Detection
This sensor suits engineers who need a compact shielded probe for flush mounting in metal brackets or fixtures where space is tight. It is not for applications that require a longer sensing range, an unshielded mounting style, a PNP or NPN three-wire output, or an AC supply voltage. Buyers who need a larger diameter body or a different connector type should look at alternative models.
Check Voltage, Mounting and Cable Length
Before ordering, confirm that your control system provides a 12 to 24V DC source capable of delivering at least 100 mA to the sensor. Verify that the 41 mm overall length and 2 m cable fit the available routing space and reach the termination point. Ensure the operating temperature range of -13 to 158 degrees F covers the intended environment and that the IP67 and NEMA 4X ratings meet the ingress-protection requirements of the installation.
Highlights
- 8 mm cylindrical sensor fits tight machine spaces
- 12 to 24 V DC supply works with standard control voltages
- 5 mm shielded sensing ignores nearby metal
- IP67 and NEMA 4X sealing resists wash-down and dust
- 303 stainless steel body withstands -13 to 158 °F extremes
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What supply voltage do I need to power the XS508B1DAL2?
The sensor operates on 12 to 24 V DC, so a standard 24 V DC control supply is suitable.
Will the 1.5 mm sensing range work reliably with my existing stainless-steel targets?
Yes, the shielded 8 mm barrel detects ferrous metals such as 303 stainless steel at up to 1.5 mm.
How can I confirm the sensor is switching correctly after wiring?
When a target enters the 1.5 mm range the NO output closes, allowing up to 100 mA to flow; measure that current or watch the load activate.
