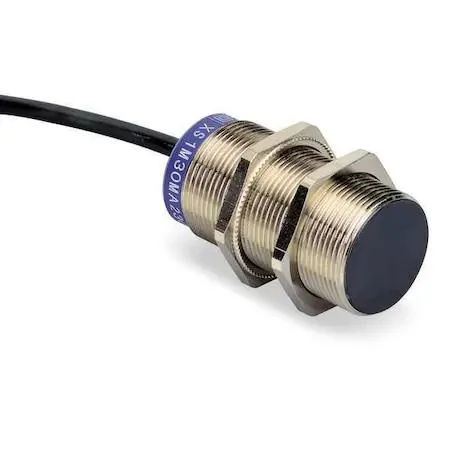

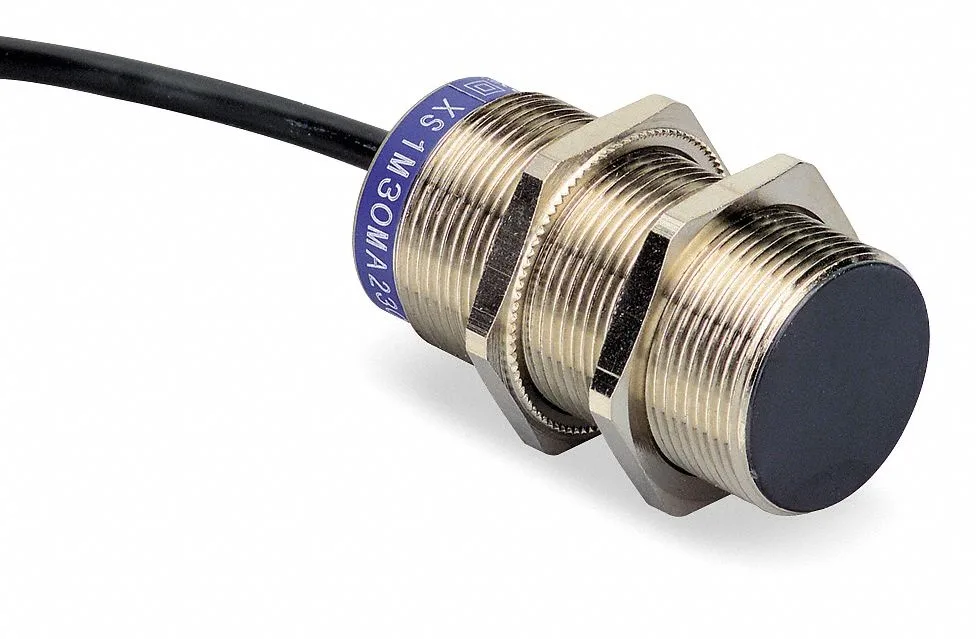

Telemecanique Sensors XS4P30MB230 Inductive Proximity Sensor 30 mm
Cylindrical inductive proximity sensor detects metal at 15 mm, runs on 24 to 240 V AC/DC with a two-wire NC output and IP68 rating
- Reliable detection up to 15 mm sensing range
- Wide 24–240 V AC/DC supply voltage flexibility
- Simple two-wire NC output for easy wiring
- Rugged IP68-rated PPS housing withstands harsh environments
- Operates from -13 °F to 158 °F across demanding applications
What this sensor is and who it suits
The Telemecanique Sensors XS4P30MB230 is a 30 mm cylindrical inductive proximity sensor designed for machine-shop and automation tasks. It detects metal targets up to 15 mm away using a 2-wire AC/DC output that switches normally closed. The PPS housing carries an IP68 rating and operates from -13 to 158 degrees F, making it suitable for harsh industrial environments.
What to verify before ordering
Confirm your control circuit can supply between 24 and 240 V AC or DC and that the load does not exceed 200 mA. The sensor requires an unshielded mounting arrangement to achieve the stated sensing distance. Ensure the 2 m pre-wired cable reaches your termination point without splicing and that the 41 mm overall length fits the available space.
How it integrates into a system
The 2-wire connection simplifies wiring by eliminating a separate power conductor, freeing a terminal on the controller. Its wide voltage range lets it share a supply with other 24 V or line-voltage devices. The NC output mode provides a fail-safe signal if the cable is severed, and the IP68 seal removes the need for additional protective enclosures in wet or dusty zones.
Highlights
- Reliable detection up to 15 mm sensing range
- Wide 24–240 V AC/DC supply voltage flexibility
- Simple two-wire NC output for easy wiring
- Rugged IP68-rated PPS housing withstands harsh environments
- Operates from -13 °F to 158 °F across demanding applications
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What comes in the box with the XS4P30MB230 and what must be purchased separately?
The sensor ships with a 2 m cable attached; mounting brackets and any wiring accessories are sold separately.
How do I choose between the available versions of this sensor?
The XS4P30MB230 is a single configuration: 30 mm diameter, 15 mm unshielded range, NC 2-wire output, 24–240 V AC/DC supply, IP68 rating.
What does the 15 mm detecting distance mean once the sensor is mounted on a machine?
It will reliably detect a standard steel target up to 15 mm away; actual range varies with target material, size and mounting conditions.
