Telemecanique Sensors
Telemecanique Sensors XS230SAMAL5 Inductive Proximity Sensor 30 mm
30 mm unshielded inductive proximity sensor detects metal up to 22 mm with a 5 m cable and 2-wire NO output
- Detects metal targets up to 22 mm away
- Operates on 24 to 240 V AC or DC supply
- IP68 and IP69K ratings withstand high-pressure washdown
- 316L stainless-steel body resists corrosion in harsh environments
- Wide -13 °F to 185 °F temperature range suits extreme conditions
Industrial proximity sensor for metal detection

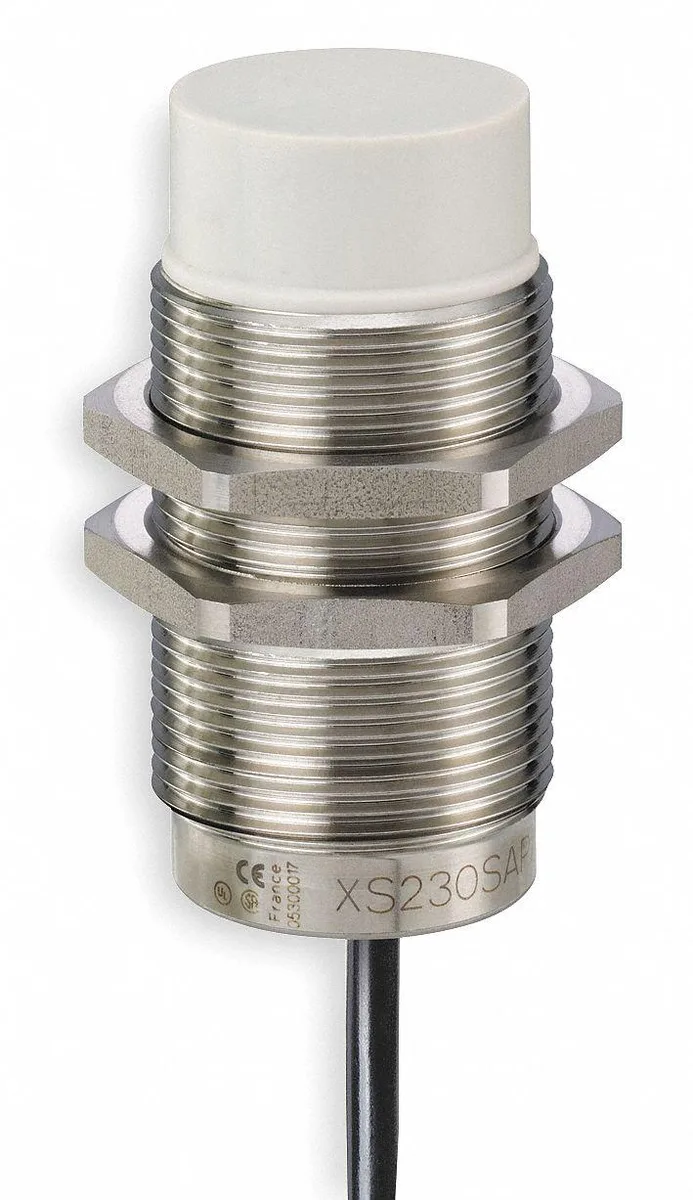

The Telemecanique Sensors XS230SAMAL5 is a cylindrical inductive proximity sensor built for industrial automation. Its unshielded 30 mm body detects ferrous and non-ferrous metal targets at up to 22 mm without physical contact. The unit operates on a wide 24 to 240 V AC/DC supply and switches a 2-wire normally-open output rated for 200 mA.
Suits harsh wash-down and outdoor environments
The 316L stainless-steel housing carries NEMA 4X, IP68 and IP69K ratings, so it withstands high-pressure cleaning, temporary immersion and aggressive chemicals. Operating frequency reaches 25 Hz on AC or 300 Hz on DC, supporting fast cycling on conveyors or packaging lines. Buyers who need a shielded face for flush mounting, a complementary normally-closed output or a larger sensing range should look at other models.
Five-metre integral cable simplifies wiring
A 5 m pre-wired cable exits the 41 mm long body, removing the need for separate connectors or field termination. The two conductors connect directly to the load and supply, reducing installation time and potential leak paths. No configuration software, mounting brackets or programming tools are included with the sensor.
Highlights
- Detects metal targets up to 22 mm away
- Operates on 24 to 240 V AC or DC supply
- IP68 and IP69K ratings withstand high-pressure washdown
- 316L stainless-steel body resists corrosion in harsh environments
- Wide -13 °F to 185 °F temperature range suits extreme conditions
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What power supply voltage does the sensor require to operate?
It accepts 24 to 240 V AC or DC, so a supply within that range is needed.
Will the unshielded 30 mm body detect metal through non-metallic brackets?
The unshielded design gives a 22 mm sensing distance but can be affected by surrounding metal, so non-metallic mounting is recommended.
How can I verify the sensor is detecting correctly after wiring?
The NO output closes when a target enters the 22 mm range; measure 200 mA load current or watch the load activate to confirm operation.
