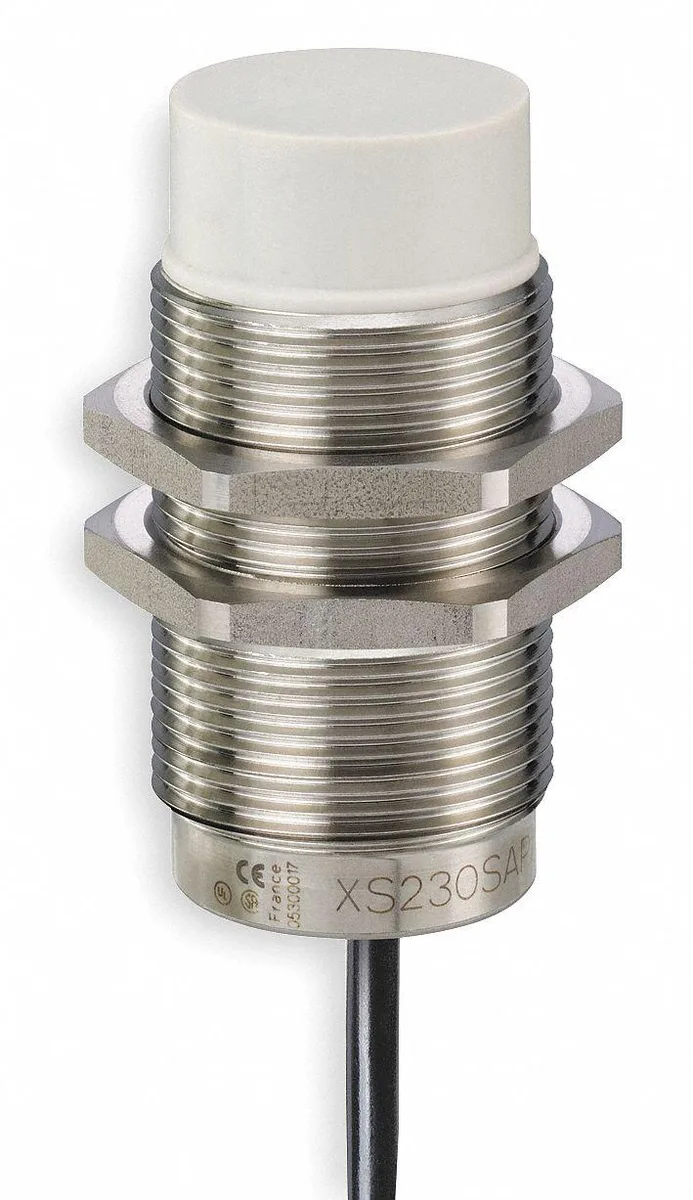

Telemecanique Sensors XS230SAMAL2 Inductive Proximity Sensor 30 mm
A 30 mm unshielded inductive proximity sensor detecting metal up to 22 mm away, running on 24 to 240 V AC/DC with a 2-wire NO output, 316L stainless steel body, IP68 and IP69K sealing, and a 2 m cable
- Detects metal targets up to 22 mm away
- Wide 24 to 240 V AC/DC supply range suits many panels
- 2-wire NO output simplifies wiring
- 316L stainless steel body with IP68 and IP69K sealing
- Operates from -13 °F to 185 °F for harsh environments
Telemecanique 30 mm Inductive Sensor
The Telemecanique Sensors XS230SAMAL2 is a cylindrical inductive proximity sensor designed for industrial automation and machinery applications. It detects metallic objects without physical contact at a maximum sensing distance of 22 mm. The sensor operates on a wide supply range of 24 to 240V AC/DC, making it suitable for varied control voltage environments. Its unshielded design allows for side detection in tight mounting arrangements.
2-Wire NO Output with 2 m Cable
The sensor provides a normally open 2-wire output circuit rated for a maximum load current of 200 mA. It connects via a 2 m integral cable, simplifying wiring without separate connectors. Operating frequency reaches 25 Hz on AC and 300 Hz on DC supplies, supporting rapid cycling applications. The 316L stainless steel housing measures 41 mm in length and meets NEMA 4X, IP68 and IP69K ratings for washdown and immersion resistance.
Suited for Harsh Industrial Detection
This unit suits maintenance engineers and OEMs needing reliable metal detection in wet, corrosive or high-pressure washdown areas. The broad voltage range reduces stock variety across global machines. Buyers who require a shielded sensor for flush mounting or a longer sensing range should look at alternative models. Applications needing PNP/NPN transistor outputs or connectorised cables are not addressed by this 2-wire AC/DC device.
Highlights
- Detects metal targets up to 22 mm away
- Wide 24 to 240 V AC/DC supply range suits many panels
- 2-wire NO output simplifies wiring
- 316L stainless steel body with IP68 and IP69K sealing
- Operates from -13 °F to 185 °F for harsh environments
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What is the maximum load current the sensor can switch continuously?
The output handles up to 200 mA at the rated supply voltage.
How hot does the stainless-steel barrel get during continuous operation?
The housing is rated for ambient temperatures up to 185 °F, so surface temperature stays within that limit under normal load.
What supply voltage must the control cabinet provide for this sensor?
It operates on 24 to 240 V AC or DC from a two-wire connection.
