Telemecanique Sensors
Telemecanique Sensors XS112BLPAM12 Inductive Proximity Sensor 12 mm
12 mm shielded inductive proximity sensor with 2 mm detection, 12–24 V DC supply, PNP NO output, 4-pin M12 connector, IP67 nickel-plated brass housing, -13 to 158 °F operating range
- 12 mm shielded sensing for precise metal detection
- 2 mm max detecting distance ensures close-range accuracy
- 12 to 24 V DC supply suits common industrial power
- IP67 and NEMA 4X ratings resist water and dust ingress
- 2 000 Hz operating frequency supports fast automation cycles
12 mm Inductive Proximity Sensor

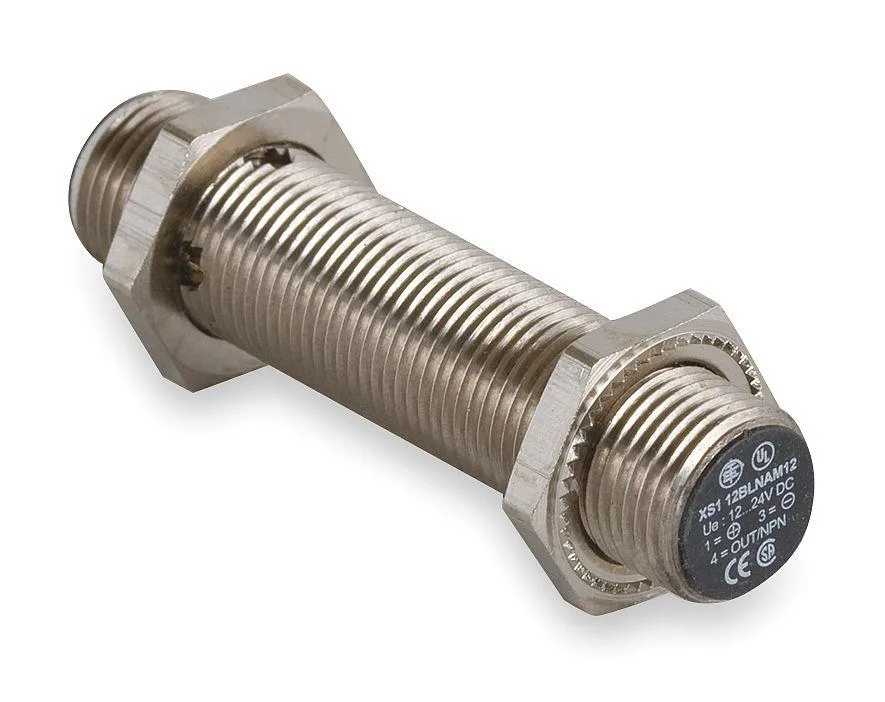

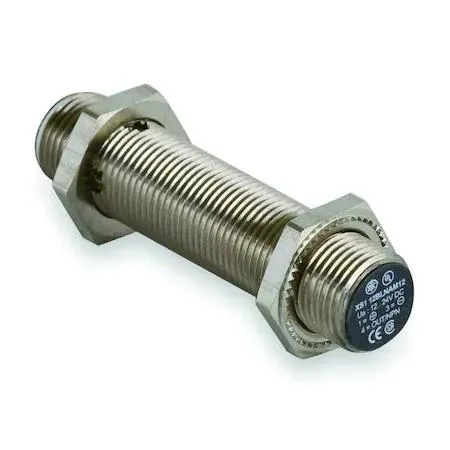

The Telemecanique Sensors XS112BLPAM12 is a cylindrical inductive proximity sensor designed for industrial automation and machinery applications. It detects metal objects without physical contact using a shielded sensing face. The unit operates on 12 to 24V DC supply voltage and provides a 3 wire PNP normally open output. Its nickel plated brass housing carries NEMA 4X and IP67 ratings for harsh environments.
2 mm Maximum Detecting Distance
The sensor offers a maximum detecting distance of 2 mm which determines the installation clearance and target approach range. This short sensing distance suits precise position detection where the target passes very close to the sensor face. The operating frequency reaches 2000 Hz allowing rapid cycling for high speed production lines. A 4 pin M12 connector provides the electrical connection for quick wiring and replacement.
Suited For Shielded Mounting And DC Control Systems
This sensor suits applications requiring a shielded 12 mm barrel with PNP output and M12 connectivity in wet or dusty conditions. It is not for applications needing longer sensing ranges or NPN output logic. Buyers who want more detecting distance or a different output type should look at alternative models. The operating temperature range spans -13 to 158 degrees Fahrenheit.
Highlights
- 12 mm shielded sensing for precise metal detection
- 2 mm max detecting distance ensures close-range accuracy
- 12 to 24 V DC supply suits common industrial power
- IP67 and NEMA 4X ratings resist water and dust ingress
- 2 000 Hz operating frequency supports fast automation cycles
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What does the 2 mm detecting distance mean when the sensor is installed on a machine?
The sensor will reliably trigger when a metal target comes within 2 mm of its sensing face, giving a tight, repeatable switching point for precision positioning tasks.
How does the 4-pin M12 connector limit the way I wire this sensor?
The M12 connector carries the 12 to 24 V DC supply and the 3-wire PNP normally-open output, so you need a matching M12 cordset and a PNP-compatible input on your controller.
Will the 41 mm long nickel-plated brass body fit in a standard 12 mm mounting hole?
Yes, the 12 mm cylindrical thread is designed for a standard M12 mounting hole, and the 41 mm overall length leaves enough thread engagement for secure fastening.
