Telemecanique Sensors
Telemecanique Sensors XS108B3PBM8 Inductive Proximity Sensor 8 mm
Detects metal objects at 2 mm range with 12–24 V DC supply and IP65/IP67 stainless steel housing
- Reliable detection at 2 mm range with 2 500 Hz switching speed
- PNP normally-closed output on 3-pin M8 connector simplifies wiring
- 12 to 24 V DC supply covers common industrial voltages
- 303 stainless steel body rated IP65 and IP67 resists harsh environments
- Operates from -13 °F to 158 °F for wide temperature tolerance
Telemecanique 8 mm Inductive Sensor

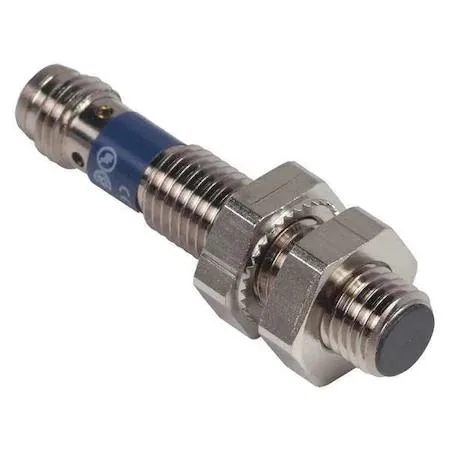

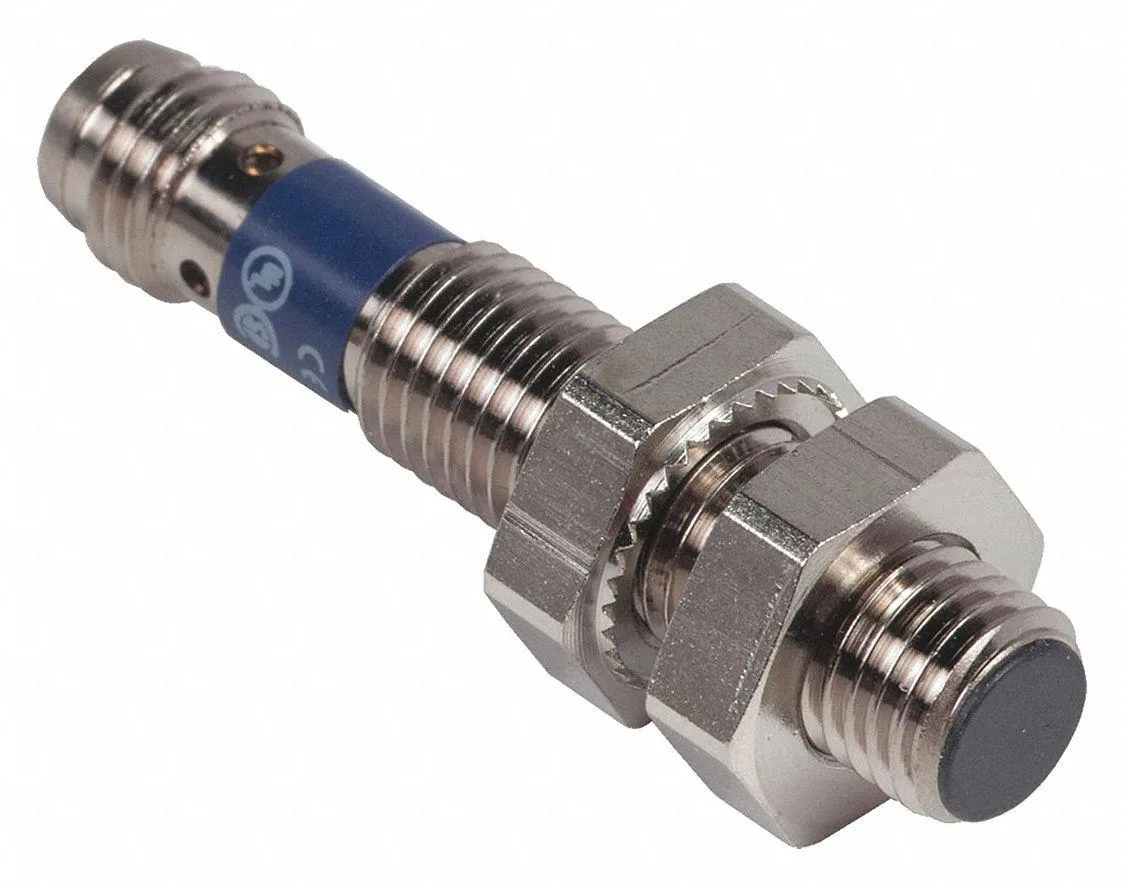

This Telemecanique Sensors XS108B3PBM8 is a cylindrical inductive proximity sensor with an 8 mm diameter and a 2 mm maximum detecting distance. It operates on a 12 to 24V DC supply and uses a 3-wire PNP output circuit configured as normally closed. The sensor connects via a 3-pin M8 connector and is housed in a 303 stainless steel body measuring 42 mm in length.
Suited for Shielded DC Automation
This sensor suits applications requiring a shielded, short-range inductive detector with a PNP normally closed signal in a compact M8 housing. Its IP65 and IP67 ratings support use in environments exposed to dust, water jets, or temporary immersion. Buyers needing a normally open output, a longer sensing range, a different connector type, or an NPN switching logic should look at alternative models.
Verify Voltage Wiring and Mounting Space
Before ordering, confirm that your control system provides a 12 to 24V DC supply capable of delivering up to 200 mA for the sensor load. Check that the 3-pin M8 connector pinout matches your cable or distribution box wiring for a PNP normally closed signal. Ensure the 42 mm overall length and 8 mm diameter fit the available mounting location and that the operating temperature range of -13 to 158 degrees Fahrenheit covers the intended environment.
Highlights
- Reliable detection at 2 mm range with 2 500 Hz switching speed
- PNP normally-closed output on 3-pin M8 connector simplifies wiring
- 12 to 24 V DC supply covers common industrial voltages
- 303 stainless steel body rated IP65 and IP67 resists harsh environments
- Operates from -13 °F to 158 °F for wide temperature tolerance
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What power supply voltage range does the XS108B3PBM8 sensor require?
The sensor operates on a 12 to 24 V DC supply, so your system must provide a stable voltage within that range.
Will the 3-pin M8 connector and PNP output work with my existing PLC input card?
Yes, if the card accepts 3-wire PNP signals and has an M8 socket; the sensor's output is normally closed and switches up to 200 mA.
How can I verify the sensor is detecting correctly after installation?
Bring a metal target within the 2 mm sensing face; the output should change state at that distance and the LED indicator will confirm switching.
