Telemecanique Sensors XCSTE7313 Safety Interlock Switch
Safety interlock switch with solenoid locking, 2NC contacts, IP67 and NEMA 4, 4X, 12 ratings, operating from -13 to 158 degrees F
- Solenoid locking at 24 V AC/DC secures machine guards
- IP67 and NEMA 4, 4X, 12 ratings protect against dust and water ingress
- 2NC safety contacts rated 6 A at 300 V AC and 3 A at 24 V DC
- Polyamide body with 18-8 stainless steel actuator resists corrosion and impact
- Wide operating range from -13 °F to 158 °F suits harsh environments
Safety interlock switch for machinery

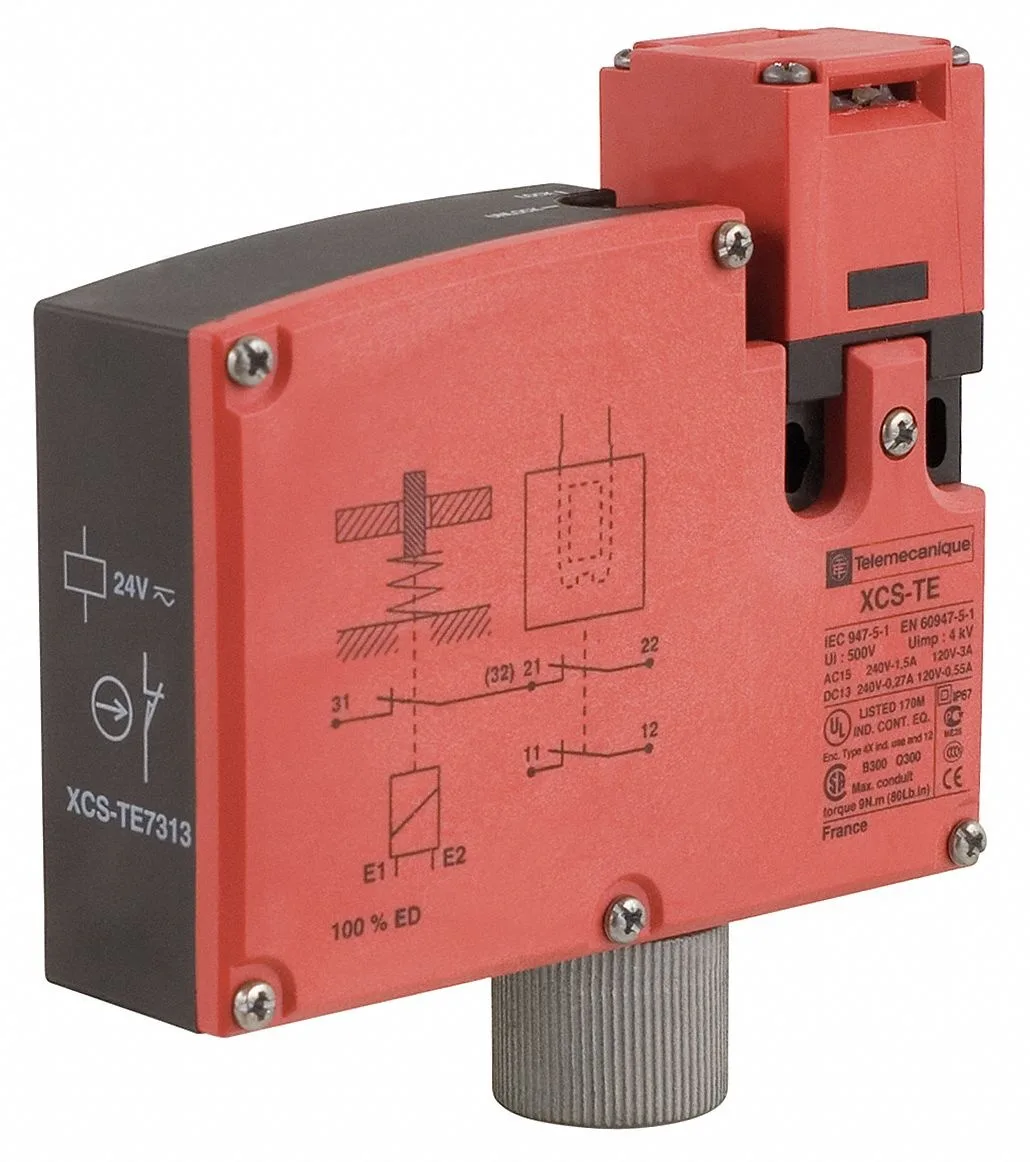

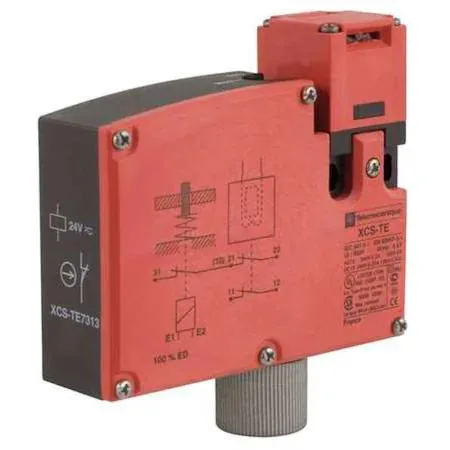

The Telemecanique Sensors XCSTE7313 is a safety interlock switch designed to guard access points on industrial equipment. It uses a solenoid locking mechanism with an actuating key to prevent hazardous motion while a guard is open. The 2NC contact form provides redundant monitoring for safety circuits. It suits machine builders and maintenance teams wiring safety systems.
Sealed for harsh environments
The polyamide body carries NEMA 12, 4 and 4X ratings plus IP67 ingress protection, resisting dust, water jets and corrosion. Stainless steel 18-8 components add durability in wet or chemical settings. Operating temperature spans -13 to 158 degrees F, so the switch functions in cold storage and high-heat process areas without thermal derating.
Compact mount with conduit entry
Overall dimensions are 1.3 in height, 4.33 in width and 3.68 in depth, allowing installation on tight guard frames. A 1/2 in NPT conduit port accepts standard fittings for cable protection. The solenoid operates on 24 V AC/DC, compatible with common control voltages. Actuator length depends on the key chosen, so the mounting geometry must match the selected actuator.
Highlights
- Solenoid locking at 24 V AC/DC secures machine guards
- IP67 and NEMA 4, 4X, 12 ratings protect against dust and water ingress
- 2NC safety contacts rated 6 A at 300 V AC and 3 A at 24 V DC
- Polyamide body with 18-8 stainless steel actuator resists corrosion and impact
- Wide operating range from -13 °F to 158 °F suits harsh environments
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
How do I mount the XCSTE7313 safety interlock switch and what step is often missed?
Mount the polyamide body using the 1/2 in NPT conduit entry and secure the stainless steel actuating key to the guard; the step often missed is aligning the key travel with the solenoid locking mechanism so the 2NC contacts change state cleanly.
What maintenance or replacement will the XCSTE7313 need over time?
Inspect the actuating key and solenoid for wear or debris; replace the key if it no longer engages the solenoid locking reliably, and check the 2NC contacts for pitting after high-cycle use at 6 A 300 V AC or 3 A 24 V DC.
What limit appears first when the XCSTE7313 runs continuously at its rated load?
The 2NC contact thermal limit at 6 A 300 V AC or 3 A 24 V DC will be reached before the IP67 or NEMA 4, 4X, 12 enclosure ratings are compromised, so monitor contact temperature during sustained operation.
