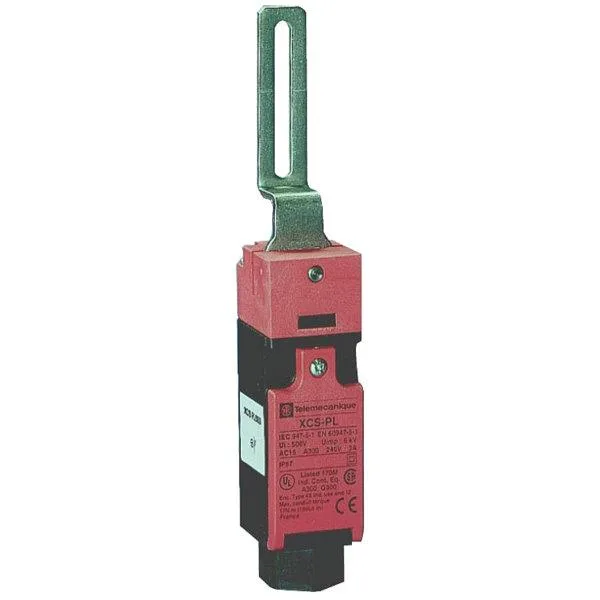

Plastic safety interlock switch with elbowed lever actuator and 1/2 in NPT conduit connection

Telemecanique Sensors

Telemecanique Sensors XCSPL583 Safety Interlock Switch

SKU CH-6ZXX-YWRY9

Elbow-lever safety interlock switch with 1NO/1NC contacts, IP67 and NEMA 4/4X/12 ratings, 6 A AC at 300 V, operating from -13 to 158 °F

  • Elbowed lever enables reliable position detection
  • IP67 and NEMA 4, 4X, 12 ratings protect against dust and water
  • 6 A at 300 V AC and 0.55 A at 300 V DC suit control circuits
  • Operating range from -13 °F to 158 °F fits harsh environments
  • 1/2 in NPT conduit entry simplifies wiring

What it is

The Telemecanique Sensors XCSPL583 is a safety interlock switch with an elbowed lever actuator and a 1NO/1NC contact form. It is built for machinery guarding where a positive-break safety function is required.

Check before ordering

Verify that the 1/2 inch NPT conduit entry matches your wiring plan and that the 2.85 inch actuator length suits the guard geometry. Confirm the 6 A AC and 0.55 A DC ratings at 300 V cover the control circuit load. Ensure the operating range of -13 to 158 degrees F fits the installation environment.

Who it suits

This switch suits engineers specifying NEMA 4, 4X and 12 or IP67 protection for indoor or outdoor dust-tight and water-tight enclosures. It is not for applications needing a different actuator style, a different contact arrangement, or conduit sizes other than 1/2 inch NPT.

Highlights

  • Elbowed lever enables reliable position detection
  • IP67 and NEMA 4, 4X, 12 ratings protect against dust and water
  • 6 A at 300 V AC and 0.55 A at 300 V DC suit control circuits
  • Operating range from -13 °F to 158 °F fits harsh environments
  • 1/2 in NPT conduit entry simplifies wiring

Specifications

BrandTELEMECANIQUE SENSORS

Questions about this item

Does the XCSPL583 safety interlock switch include the actuator lever or must it be ordered separately?

The elbowed lever actuator is built into the switch and measures 2.85 in, so no separate actuator purchase is required.

Should I choose the 6 A AC or the 0.55 A DC contact rating for my circuit?

Use the 6 A @ 300 V AC rating for alternating-current loads and the 0.55 A @ 300 V DC rating for direct-current loads; both are available on the same 1NO/1NC contact block.

What does the IP67 rating mean when the switch is mounted on a machine?

IP67 confirms the plastic enclosure is dust-tight and withstands temporary immersion, while NEMA 4, 4X and 12 add corrosion resistance and indoor/outdoor water-tight protection.
