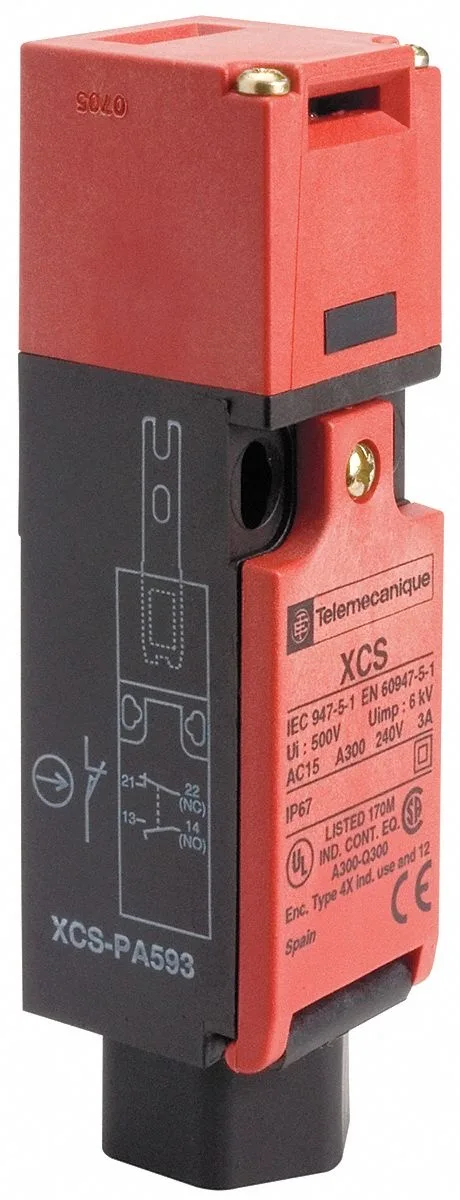

Telemecanique Sensors XCSPA593 Safety Interlock Switch 1NC/1NO NEMA 4 4X 12 IP67
Safety interlock switch with 1NO/1NC contacts, NEMA 4/4X/12 and IP67 ratings for dust-tight, corrosion-resistant indoor or outdoor use
- Dust-tight and corrosion-resistant enclosure rated NEMA 4, 4X, 12 and IP67
- Safety interlock switch with 1NO/1NC contacts for reliable machine guarding
- Polyamide body withstands -13 °F to 158 °F operating range
- 10 A AC and 6 A DC contact ratings at 300 V for versatile control circuits
- 1/2 in NPT conduit entry simplifies wiring in industrial installations
Safety Interlock Switch for Machine Guarding
The Telemecanique Sensors XCSPA593 is a safety interlock switch designed to monitor guard positions on industrial machinery. It uses an actuating key that must be inserted to close the safety circuit, making it suitable for operators and maintenance personnel who need reliable door or gate monitoring.
Electrical Ratings and Environmental Limits
The switch carries a 10 A rating at 300 V AC and 6 A at 300 V DC through its 1NO/1NC contact form. It operates between -13 and 158 degrees F and meets NEMA 4, 4X and 12 as well as IP67, so it resists dust, water jets and corrosion in indoor or outdoor installations.
Polyamide Body with 1/2 in NPT Conduit Entry
The polyamide housing measures 1.18 in high, 1.18 in wide and 4.21 in deep, providing a compact, corrosion-resistant enclosure. A 1/2 in NPT conduit connection allows standard wiring methods, while the key-dependent actuator length means the mounting layout must match the specific guard geometry.
Highlights
- Dust-tight and corrosion-resistant enclosure rated NEMA 4, 4X, 12 and IP67
- Safety interlock switch with 1NO/1NC contacts for reliable machine guarding
- Polyamide body withstands -13 °F to 158 °F operating range
- 10 A AC and 6 A DC contact ratings at 300 V for versatile control circuits
- 1/2 in NPT conduit entry simplifies wiring in industrial installations
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Which version of the XCSPA safety interlock switch should I select for a 1NO/1NC contact configuration?
The XCSPA593 is the model that provides a 1NO/1NC contact form, actuated by a separate key with a 1/2 in NPT conduit entry.
What does the 10 A AC contact rating mean for my control circuit?
It means the switch contacts can safely carry up to 10 amps at 300 V AC when the guard is closed and the actuator key is engaged.
How does the 1/2 in NPT conduit connection affect wiring?
The 1/2 in NPT conduit entry accepts standard fittings for cable protection and maintains the IP67 and NEMA 4, 4X, 12 enclosure ratings.
