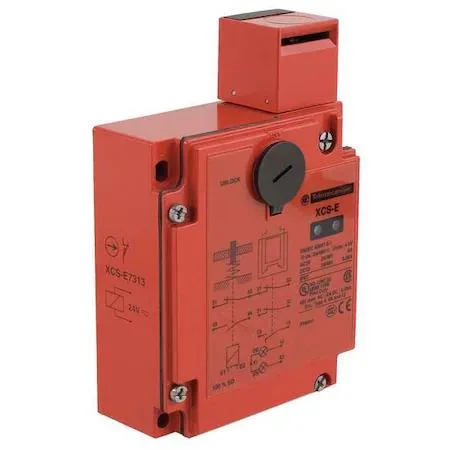

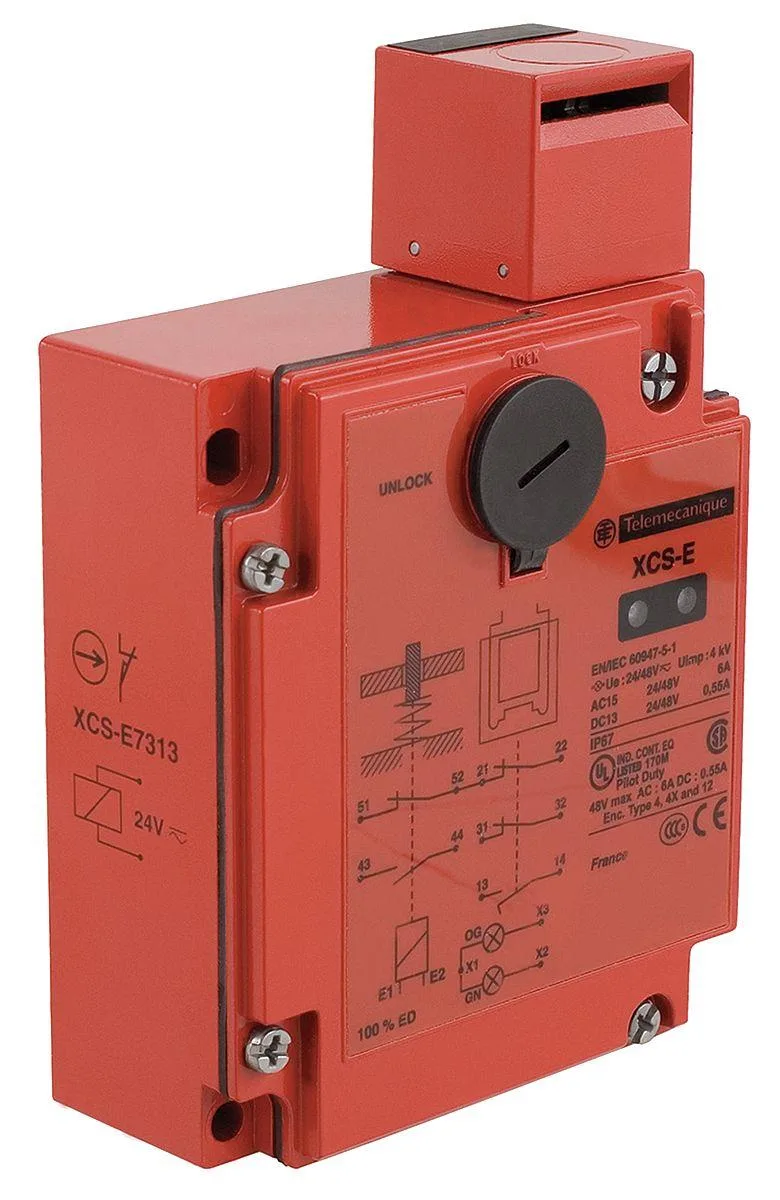

Telemecanique Sensors XCSE7313 Safety Interlock Switch
A safety interlock switch with solenoid locking, 1NO/2NC contacts, NEMA 4/4X/12 and IP67 ratings, and 24 V AC/DC operation
- Solenoid locking secures guard doors with 24 V AC/DC operation
- Three contacts (1NO/2NC) give redundant safety monitoring
- IP67 and NEMA 4, 4X, 12 ratings resist dust and wash-down
- Zamak body and head withstand -13 °F to 158 °F range
- 1/2 in NPT conduit entry simplifies wiring in machine frames
Safety interlock switch for machine guarding
The Telemecanique Sensors XCSE7313 is a solenoid-locking safety interlock switch designed to prevent access to hazardous machine areas until dangerous motion has stopped. It suits industrial equipment builders who need a guarded gate or door to remain locked while a control signal is present.
Limits of the NEMA 4, 4X, 12 and IP67 enclosure
The die-cast Zamak housing resists water jets, temporary submersion and corrosion in indoor or outdoor environments. Operating temperature spans -13 to 158 degrees F, so the switch cannot be used in processes that exceed this range. Conduit entry is fixed at 1/2 in NPT, limiting cable routing options.
Replaces non-locking or lower-rated interlocks
This model upgrades from simple position switches that only monitor guard position without locking. The jump is worth it when a risk assessment demands power-to-lock solenoid retention and a contact block of 1NO/2NC rated 6 A at 300 V AC or 3 A at 300 V DC. It does not suit applications needing a different solenoid voltage or a larger conduit entry.
Highlights
- Solenoid locking secures guard doors with 24 V AC/DC operation
- Three contacts (1NO/2NC) give redundant safety monitoring
- IP67 and NEMA 4, 4X, 12 ratings resist dust and wash-down
- Zamak body and head withstand -13 °F to 158 °F range
- 1/2 in NPT conduit entry simplifies wiring in machine frames
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Which contact configuration suits my safety circuit — the 1NO/2NC setup or another option?
This switch provides one normally-open and two normally-closed contacts, giving a monitored guard-locking signal plus a redundant safety channel in a single unit.
What does the 6 A at 300 V AC rating mean when the switch is wired into my control panel?
The contacts can safely carry up to 6 amps at 300 volts AC, so they handle typical safety-relay coils and indicator loads without an interposing relay.
How does the 1/2 in NPT conduit entry limit the cable glands I can use?
The housing accepts standard 1/2 inch NPT fittings, so any gland or conduit hub with that thread size will seal to the IP67 rating.
