Telemecanique Sensors XCMD2102L5 Limit Switch Plunger Roller 1NC/1NO 6A 240V
Miniature limit switch with roller plunger, 1NC/1NO contacts rated 6 A at 240 V, NEMA 1, 2, 4, 6, 6P, 12, 13
- Reliable position sensing with 1NC/1NO snap-action contacts
- Handles 6 A at 240 V AC or DC for robust control circuits
- Miniature body fits tight spaces at 1.97 × 1.18 × 0.63 in
- NEMA 1, 2, 4, 6, 6P, 12, 13 ratings protect against dust and water ingress
- Roller plunger with 0.8 in actuator length ensures smooth, repeatable operation

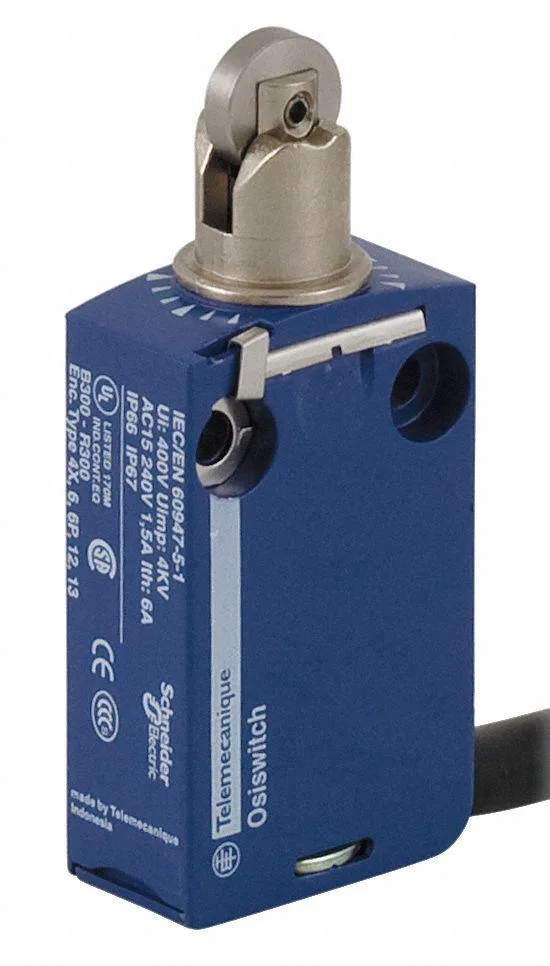

XCMD2102L5 Limit Switch with Roller Plunger
This miniature limit switch uses a top-mounted roller plunger to detect mechanical position in industrial machinery. It suits automation engineers and maintenance teams who need a compact, NEMA-rated device for end-of-travel or safety-interlock duties. The 1NC/1NO contact block provides both break and make signals from a single actuation point.
6 A at 240 V AC and DC contact rating
The switch carries 6 A at 240 V on both AC and DC circuits, giving ample headroom for standard control-relay coils, indicator lamps and small solenoid valves. It runs out of margin when applied to larger motor-starter coils or resistive loads above the rated current, so those circuits require an interposing contactor.
NEMA 1, 2, 4, 6, 6P, 12, 13 enclosure ratings
The body meets seven NEMA type ratings, so the same part fits indoor, outdoor, wash-down and temporary-submersion environments without extra sealing kits. The unsealed actuator boot means fine dust or chips can enter the plunger mechanism, so very dirty applications may need an external bellows or cover.
Highlights
- Reliable position sensing with 1NC/1NO snap-action contacts
- Handles 6 A at 240 V AC or DC for robust control circuits
- Miniature body fits tight spaces at 1.97 × 1.18 × 0.63 in
- NEMA 1, 2, 4, 6, 6P, 12, 13 ratings protect against dust and water ingress
- Roller plunger with 0.8 in actuator length ensures smooth, repeatable operation
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Will the 0.8 in roller plunger on the XCMD2102L5 clear the existing mounting holes on my current panel?
The body measures 1.97 in high, 1.18 in wide and 0.63 in deep; compare those dimensions to your panel cut-out before installing.
How can I verify the 1NC/1NO contacts are switching correctly at 6 A 240 V after wiring?
With power off, use a multimeter to confirm continuity changes on both the normally closed and normally open circuits as the roller is depressed and released.
Does the switch include mounting hardware or must I supply my own screws?
The unit is supplied as the switch body with integral roller plunger only; mounting screws are not included and must be sourced separately.
