Telemecanique Sensors XCMD2102L1 Limit Switch Plunger Roller 1NC/1NO 6A 240V
Miniature limit switch with roller plunger, 1NC/1NO contacts rated 6A at 240V, NEMA 1, 2, 4, 6, 6P, 12, 13
- Compact miniature body fits tight machine spaces
- Roller plunger actuator with .8 in length enables smooth lateral actuation
- 1NC/1NO contact form provides both safety and control circuits
- Rated 6 A at 240 V AC and DC for versatile power switching
- NEMA 1, 2, 4, 6, 6P, 12, 13 enclosure ratings suit harsh environments
Compact Limit Switch for Machine Safety

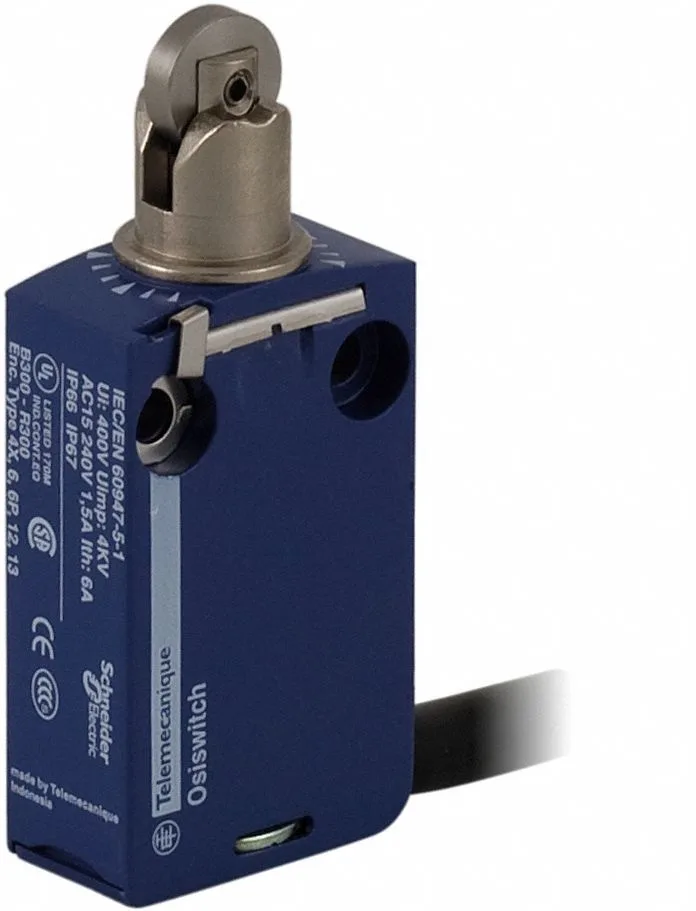

The Telemecanique Sensors XCMD2102L1 is a miniature limit switch with a top-mounted plunger roller actuator. It provides one normally closed and one normally open contact rated at 6A for both AC and DC circuits at 240V. The body measures 1.97 in high, 1.18 in wide and 0.63 in deep with an actuator length of .8 in. It carries NEMA ratings 1, 2, 4, 6, 6P, 12 and 13 for industrial environments.
Suits Tight Spaces and Basic Position Sensing
This switch fits builders needing a compact, snap-action device for end-of-travel or presence detection on conveyors, guards or tooling. The roller plunger reduces friction and wear in sliding applications. It is not suited for applications requiring a sealed actuator boot, non-contact sensing, multiple contact blocks or a larger mounting footprint. Buyers who need higher current capacity or a different actuator style should look elsewhere.
Integrates into Panels and Guard Systems
The miniature body allows installation in shallow enclosures or directly on machine frames where space is limited. Top actuation simplifies alignment with moving cams or stops. The 1NC/1NO contact form supports both safety-circuit interruption and status signalling in a single device. Wiring connects to standard screw terminals. The broad NEMA ratings mean the switch withstands water, oil and dust without additional shielding, freeing the designer from specifying separate protective enclosures.
Highlights
- Compact miniature body fits tight machine spaces
- Roller plunger actuator with .8 in length enables smooth lateral actuation
- 1NC/1NO contact form provides both safety and control circuits
- Rated 6 A at 240 V AC and DC for versatile power switching
- NEMA 1, 2, 4, 6, 6P, 12, 13 enclosure ratings suit harsh environments
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What mounting hardware do I need to install the 1.18 in wide miniature body?
The switch uses a standard miniature footprint; you supply the mounting screws or bolts that match your machine frame.
Can the 6 A 240 V contacts share a circuit with legacy 10 A industrial relays?
Yes, the 1NC/1NO contacts are rated 6 A at 240 V AC or DC, so they can switch the same control voltage as older relays provided the load stays within 6 A.
How do I verify the roller plunger is actuating correctly after wiring?
Operate the machine through its travel; the roller should travel 0.8 in and you should hear a distinct click as the 1NC/1NO contacts change state.
