Telemecanique Sensors XCKP2145N12 Limit Switch Adjustable Roller Lever 10A 240V
Adjustable roller-lever limit switch with 1NC/1NO contacts rated 10 A at 240 V AC/DC, actuator adjustable from 1.30 in to 3.29 in, miniature body 2.56 in high
- Adjustable roller lever spans 1.30 in to 3.29 in for flexible positioning
- Miniature body measures 2.56 in high by 1.22 in wide by 1.18 in deep
- Rated 10 A at 240 V AC and DC for reliable switching
- 1NC/1NO contact form provides both normally closed and normally open circuits
- Side-mounted rotary actuator suits compact machine installations
Adjustable Roller Lever Actuator

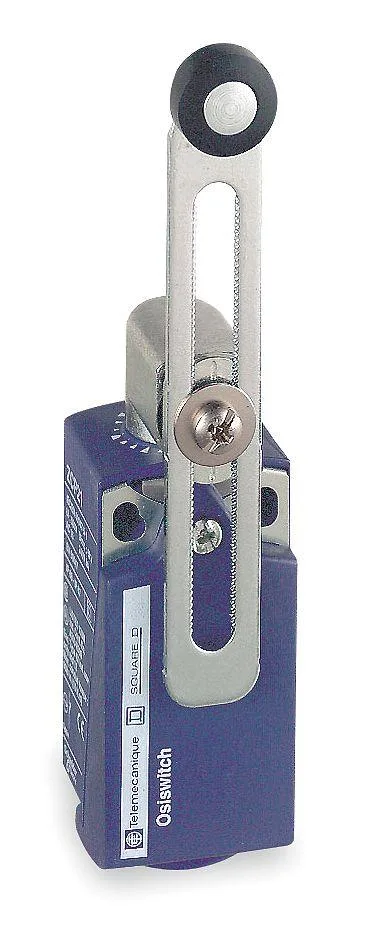

This Telemecanique Sensors limit switch uses a side-mounted rotary actuator with an adjustable roller lever. The lever length can be set between 1.30 in and 3.29 in to match the trip point of the application. It fits miniature body dimensions of 2.56 in height, 1.22 in width and 1.18 in depth.
For safety circuits needing one make
The switch provides a 1NC/1NO contact form rated at 10A for both 240V AC and 240V DC loads. It suits machinery guards, conveyor stops or valve position sensing where a single device must signal two states. Buyers who need sealed actuator boots or a different contact arrangement should look at other models.
10A 240V dual-voltage rating
The contacts carry 10A at 240V on both AC and DC supplies without separate derating. This single figure determines whether the switch can handle the control circuit load directly or requires an interposing relay. Verify the circuit voltage and current against this rating before installation.
Highlights
- Adjustable roller lever spans 1.30 in to 3.29 in for flexible positioning
- Miniature body measures 2.56 in high by 1.22 in wide by 1.18 in deep
- Rated 10 A at 240 V AC and DC for reliable switching
- 1NC/1NO contact form provides both normally closed and normally open circuits
- Side-mounted rotary actuator suits compact machine installations
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
How is the adjustable roller lever mounted and which adjustment step is often missed?
Mount the switch using its 1.22 in by 1.18 in body footprint, then set the lever between 1.30 in and 3.29 in and tighten the locking screw so the roller cannot shift during operation.
Which part will need replacement first and how often should it be inspected?
The roller lever and its pivot are the wear items; inspect the roller surface and pivot play every few months in high-cycle applications and replace the lever assembly if the roller shows flat spots or excessive looseness.
What thermal or electrical limit appears first during continuous operation?
The contacts are rated 10 A at 240 V AC or DC; sustained current above 10 A or voltage above 240 V will cause contact overheating and premature failure before any other limit is reached.
