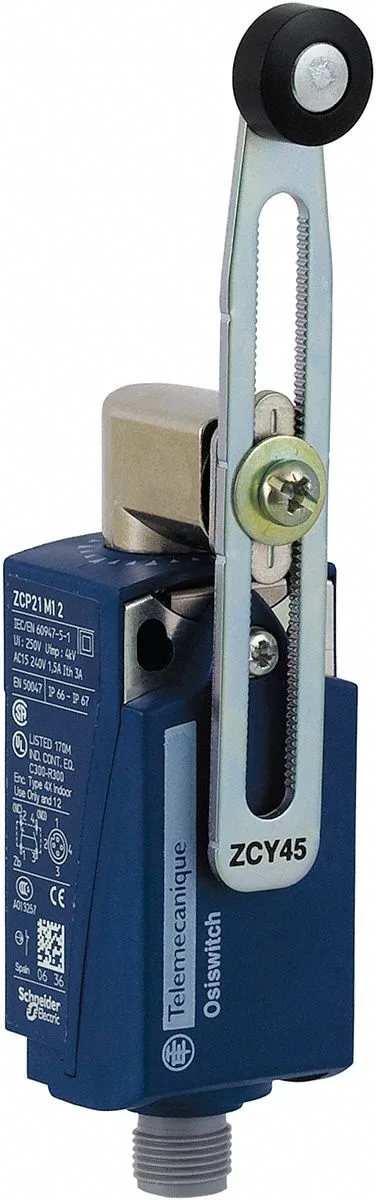

Telemecanique Sensors XCKP2145M12 Limit Switch Adjustable Roller Lever 3A 240V
Adjustable roller lever limit switch rated 3A at 240V AC/DC with 1NC/1NO contacts and NEMA 1, 2, 4, 6, 12, 13 protection
- Adjustable roller lever spans 1.30 in to 3.29 in for flexible positioning
- Miniature body fits tight spaces at 2.56 in high and 1.22 in wide
- 3 A switching at 240 V AC or DC handles standard control circuits
- 1NC/1NO contact form provides both normally closed and normally open circuits
- NEMA 1, 2, 4, 6, 12, 13 ratings suit indoor and outdoor industrial environments
Product Identity
The Telemecanique Sensors XCKP2145M12 is a miniature limit switch with an adjustable roller lever actuator. It suits machinery builders and maintenance engineers who need reliable position detection on conveyors, lifts or automated equipment where space is constrained and side-mounted actuation is required.
Sustained Operation
The switch carries a 3 A rating at 240 V for both AC and DC circuits with a 1NC/1NO contact form. This rating applies to continuous duty rather than momentary peaks, so the contacts maintain integrity through repeated cycling in normal production environments.
Thermals Noise Power
The body measures 2.56 in high by 1.22 in wide by 1.18 in deep and carries NEMA 1, 2, 4, 6, 12 and 13 enclosure ratings. The sealed construction keeps out dust, water and oil without active cooling, so the unit runs silently and draws no power beyond the switched circuit itself.
Highlights
- Adjustable roller lever spans 1.30 in to 3.29 in for flexible positioning
- Miniature body fits tight spaces at 2.56 in high and 1.22 in wide
- 3 A switching at 240 V AC or DC handles standard control circuits
- 1NC/1NO contact form provides both normally closed and normally open circuits
- NEMA 1, 2, 4, 6, 12, 13 ratings suit indoor and outdoor industrial environments
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Does the XCKP2145M12 generate noticeable heat or noise when energised continuously at 3A 240V?
As a passive electromechanical limit switch it has no fan or active electronics, so it runs silently and produces negligible heat at its rated 3A 240V AC or DC load.
What mounting hardware and wiring must I already have to install this side-mount miniature switch?
You need M4 or #8 screws for the 1.22in wide body, plus suitably rated cable and terminals for 3A 240V circuits; the adjustable roller lever (1.30–3.29in) mounts directly on the rotary shaft.
Will the 1NC/1NO contact block work with my older 240V relay logic that expects NEMA 1, 12, 13 rated devices?
Yes, the switch carries NEMA 1, 2, 4, 6, 12, 13 ratings and a 1NC/1NO form, so it drops into legacy 240V control panels that require those enclosure types.
