Telemecanique Sensors XCKP2118M12 Limit Switch Roller Lever 1NC/1NO 3A 240V
Miniature limit switch with a 1.3 in roller lever, 1NC/1NO contacts rated 3 A at 240 V, and NEMA 1, 2, 4, 6, 12, 13 enclosure protection
- Roller-lever actuator simplifies side-mounted positioning
- 1NC/1NO contacts suit both make-and-break circuits
- 3 A at 240 V AC or DC handles standard control loads
- Miniature body fits tight panels at 2.56 in high
- NEMA 1, 2, 4, 6, 12, 13 ratings resist dust, water and oil
Telemecanique Limit Switch Roller Lever

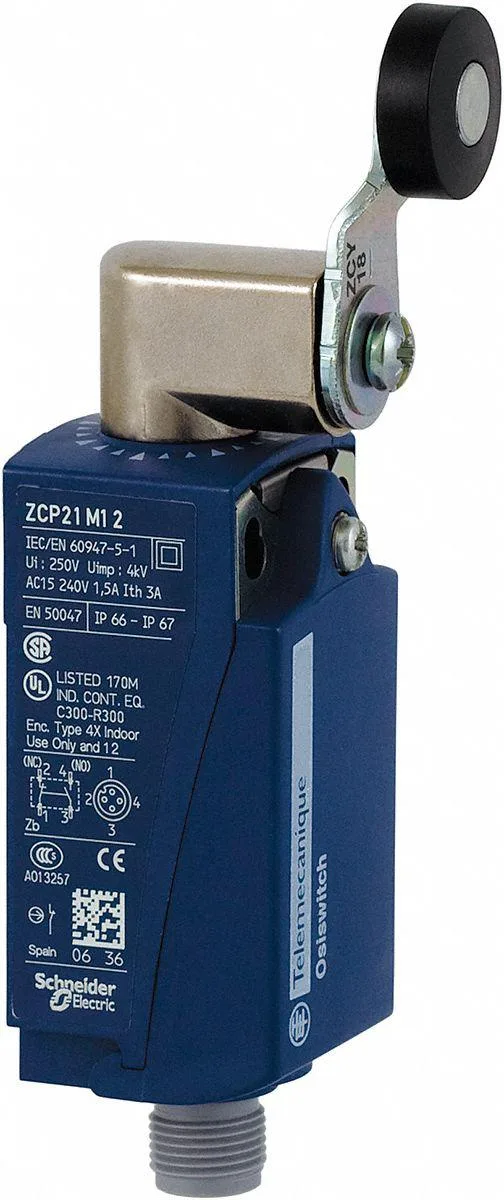

The Telemecanique Sensors XCKP2118M12 is a miniature limit switch with a rotary roller lever actuator mounted on the side. It provides one normally closed and one normally open contact rated at 3 amperes for both AC and DC circuits up to 240 volts. The compact body measures 2.56 inches high by 1.22 inches wide by 1.18 inches deep with a 1.3 inch lever. NEMA ratings 1, 2, 4, 6, 12 and 13 indicate protection against dust, water and oil ingress.
Suits automated machinery and safety circuits
This switch suits machine builders who need a compact, side-actuated limit switch with standard double-break contacts for 240-volt control circuits. The NEMA 4, 6 and 13 ratings support washdown and oily environments. Buyers who need a sealed actuator boot, a different lever length, or a contact block with more poles should look at other models.
3A 240V AC/DC contact rating
The single specification that decides fit is the 3 ampere, 240 volt AC and DC contact rating on the 1NC/1NO snap-action block. Verify that the control circuit voltage and load current stay within this limit before installing the switch.
Highlights
- Roller-lever actuator simplifies side-mounted positioning
- 1NC/1NO contacts suit both make-and-break circuits
- 3 A at 240 V AC or DC handles standard control loads
- Miniature body fits tight panels at 2.56 in high
- NEMA 1, 2, 4, 6, 12, 13 ratings resist dust, water and oil
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What mounting-hole spacing does the 2.56 in high body require?
The miniature body measures 2.56 in high, 1.22 in wide and 1.18 in deep; check the datasheet for the exact hole centres before drilling.
Which wiring step is most often missed on the 1NC/1NO contacts?
Connect both the normally-closed and normally-open circuits to the 3 A 240 V terminals; forgetting the second circuit leaves the safety loop incomplete.
When should the 1.3 in roller lever be inspected or replaced?
Inspect the lever for wear or cracked roller at each preventive-maintenance interval; replace it if the roller no longer rotates freely or shows flat spots.
