Telemecanique Sensors XCKJ167H7 Limit Switch Plunger Roller
Heavy-duty limit switch with roller plunger actuator, 1NC/1NO contacts rated 10A at 240V AC/DC, NEMA 1, 2, 4, 12, 13 enclosure
- Reliable switching up to 10 A at 240 V AC or DC
- Top-mounted plunger with 0.79 in roller for precise actuation
- 1NC/1NO contacts suit diverse control circuits
- NEMA 1, 2, 4, 12, 13 enclosure resists dust, oil and water
- Compact 4.01 × 1.57 × 2.36 in body fits tight machine spaces
Telemecanique Heavy-Duty Limit Switch

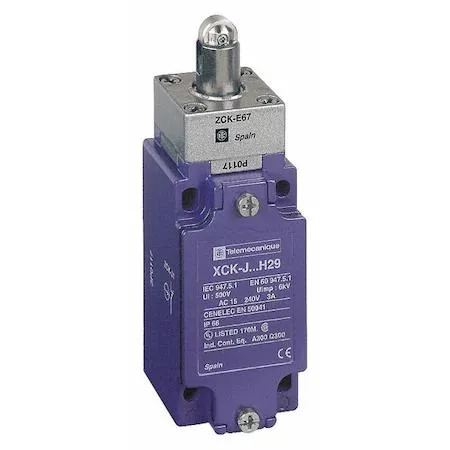

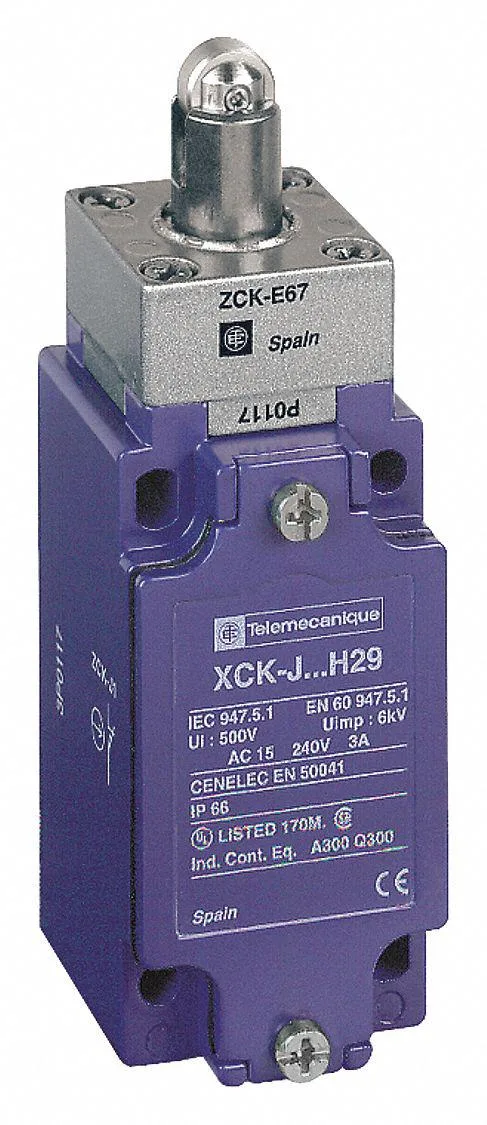

The Telemecanique XCKJ167H7 is a heavy-duty limit switch built for industrial machinery and machine-shop equipment. It uses a top-mounted plunger with a roller actuator to detect mechanical position or end-of-travel in automated systems.
Standard Body With NEMA 1, 2, 4, 12, 13 Rating
The standard body measures 4.01 in high, 1.57 in wide and 2.36 in deep, while the roller actuator extends 0.79 in. NEMA type 1, 2, 4, 12 and 13 ratings confirm protection against dust, splashing water and oil, so the switch survives harsh shop environments without a sealed boot.
10 A Double-Break Contacts For Relay Replacement
The switch carries 10 A at 240 V on both AC and DC circuits through a 1NC/1NO contact form. It replaces worn pilot devices or small contactors where a compact, snap-acting plunger is preferred over a lever arm, and the jump is justified when NEMA 4 or 13 ingress protection becomes a requirement.
Highlights
- Reliable switching up to 10 A at 240 V AC or DC
- Top-mounted plunger with 0.79 in roller for precise actuation
- 1NC/1NO contacts suit diverse control circuits
- NEMA 1, 2, 4, 12, 13 enclosure resists dust, oil and water
- Compact 4.01 × 1.57 × 2.36 in body fits tight machine spaces
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What contact rating does the XCKJ167H7 limit switch support at 240 V?
The switch is rated for 10 A at 240 V for both AC and DC circuits.
What are the body dimensions of this limit switch?
The body measures 4.01 in high, 1.57 in wide and 2.36 in deep.
How is the actuator mounted on this limit switch?
The roller plunger actuator is located on the top of the switch body.
