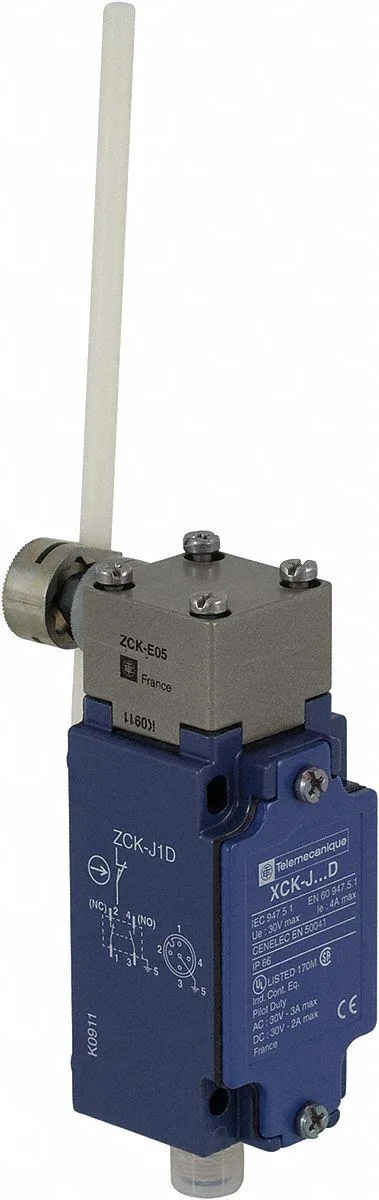

Telemecanique Sensors XCKJ10559D Limit Switch Adjustable Rod
Heavy-duty limit switch with an 8.35 in adjustable rod, 1NC/1NO contacts rated 4A at 240V AC/DC, and NEMA 1, 2, 4, 12, 13 enclosure
- Adjustable rod actuator enables flexible positioning for varied machine setups
- 1NC/1NO contact form supports both normally open and normally closed circuits
- Rated 4A at 240V AC and DC for reliable switching in power circuits
- NEMA 1, 2, 4, 12, 13 enclosure rating protects against dust, water and oil ingress
- Compact body at 4.01 in high, 1.57 in wide, 2.36 in deep fits tight spaces
Telemecanique XCKJ10559D Limit Switch
The Telemecanique Sensors XCKJ10559D is a heavy-duty limit switch built for industrial machinery control. It uses an adjustable rod actuator mounted on the side of the body to detect mechanical position or movement. The switch is rated NEMA 1, 2, 4, 12, and 13 for protection against dust, water, and oil in demanding environments.
Contact Ratings and Circuit Limits
This switch carries a 4A rating at 240V for both AC and DC circuits, which sets the maximum load it can safely interrupt. The 1NC/1NO contact form provides one normally closed and one normally open circuit for versatile control logic. Exceeding the 4A or 240V ratings risks contact welding or premature failure in the application.
Adjustable Rod Actuator Length
The actuator rod extends to 8.35 in, giving a long reach for positioning flexibility on conveyors, lifts, or guard doors. Its side-mounted rotary design requires adequate lateral clearance for the rod to sweep freely during operation. Installations with restricted side space or that need a shorter fixed lever should select a different actuator style.
Highlights
- Adjustable rod actuator enables flexible positioning for varied machine setups
- 1NC/1NO contact form supports both normally open and normally closed circuits
- Rated 4A at 240V AC and DC for reliable switching in power circuits
- NEMA 1, 2, 4, 12, 13 enclosure rating protects against dust, water and oil ingress
- Compact body at 4.01 in high, 1.57 in wide, 2.36 in deep fits tight spaces
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Which actuator length suits my machine — the 8.35 in adjustable rod?
The 8.35 in rod is adjustable, so you can shorten it to match the exact trip point your application needs.
What does the 4 A @ 240 V rating mean when the switch is installed?
It means the contacts can safely carry 4 A at 240 V AC or DC, so size your control circuit and fusing accordingly.
What do the NEMA 1, 2, 4, 12, 13 ratings cap in practice?
They certify the enclosure against dust, dripping water, hose-directed water, oil and coolant, so the switch survives harsh industrial environments.
