Telemecanique Sensors XCKD2145N12 limit switch adjustable roller lever 10 A 240 V
Adjustable roller lever limit switch rated 10 A at 240 V with 1NC/1NO contacts and 1.30 to 3.29 in lever travel
- Adjustable roller lever spans 1.30 in to 3.29 in for flexible positioning
- 10 A contact rating at 240 V AC and DC handles demanding circuits
- Miniature body at 2.56 in high fits tight machine spaces
- 1NC/1NO contact form provides both normally closed and normally open operation
- Side-mounted actuator simplifies installation on equipment frames
Adjustable Roller Lever Limit Switch

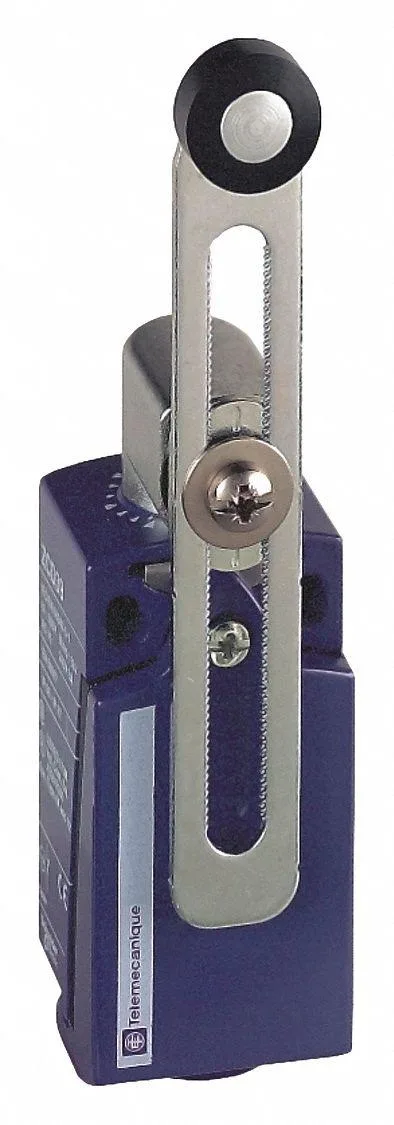

The Telemecanique Sensors XCKD2145N12 is a miniature limit switch with an adjustable roller lever actuator. It mounts on the side of equipment and provides one normally open and one normally closed contact. The lever length adjusts from 1.30 in to 3.29 in for flexible positioning. Rated for 10 A at 240 V on both AC and DC circuits.
Suits Compact Side-Mount Safety Circuits
This switch fits machines needing a small side-operated limit device with adjustable lever reach. The 1.22 in wide by 2.56 in high body suits tight spaces. Buyers who need a boot-sealed actuator for dirty environments should look at something else. Applications requiring a different actuator style or contact arrangement are not addressed by this model.
10 A 240 V Dual-Voltage Contact Rating
The defining specification is the 10 A rating at 240 V for both alternating and direct current. This dual rating allows the same switch to serve in AC control panels and DC sensor circuits without separate parts. Verify that your control voltage and load current stay within this 10 A 240 V limit before installing.
Highlights
- Adjustable roller lever spans 1.30 in to 3.29 in for flexible positioning
- 10 A contact rating at 240 V AC and DC handles demanding circuits
- Miniature body at 2.56 in high fits tight machine spaces
- 1NC/1NO contact form provides both normally closed and normally open operation
- Side-mounted actuator simplifies installation on equipment frames
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Will the adjustable roller lever (1.30 in to 3.29 in) clear my existing mounting bracket spacing?
The lever adjusts continuously between 1.30 in and 3.29 in, so you can set it to match the bracket gap without changing hole positions.
How do I verify the 1NC/1NO contacts are switching correctly at 240 V?
With power off, use a multimeter on each contact pair; the NC circuit should show continuity and the NO circuit open, then reverse when the lever is actuated.
Does the switch include mounting hardware or just the 2.56 in × 1.22 in × 1.18 in body?
Only the switch body is supplied; mounting screws, wiring connectors and any actuator accessories must be purchased separately.
