Telemecanique Sensors
Telemecanique Sensors XCKD2145M12 limit switch adjustable roller lever 4A 240V
Adjustable roller lever limit switch rated 4A at 240V with 1NC/1NO contacts and NEMA 3, 3S, 4X, 6P enclosure
- Adjustable roller lever sets between 1.30 in and 3.29 in
- Rated 4 A at 240 V for both AC and DC circuits
- Miniature body fits tight spaces at 2.56 in high
- NEMA 3, 3S, 4X, 6P rating resists dust, water and oil
- 1NC/1NO contact form handles open and close signals
Adjustable Roller Lever Limit Switch

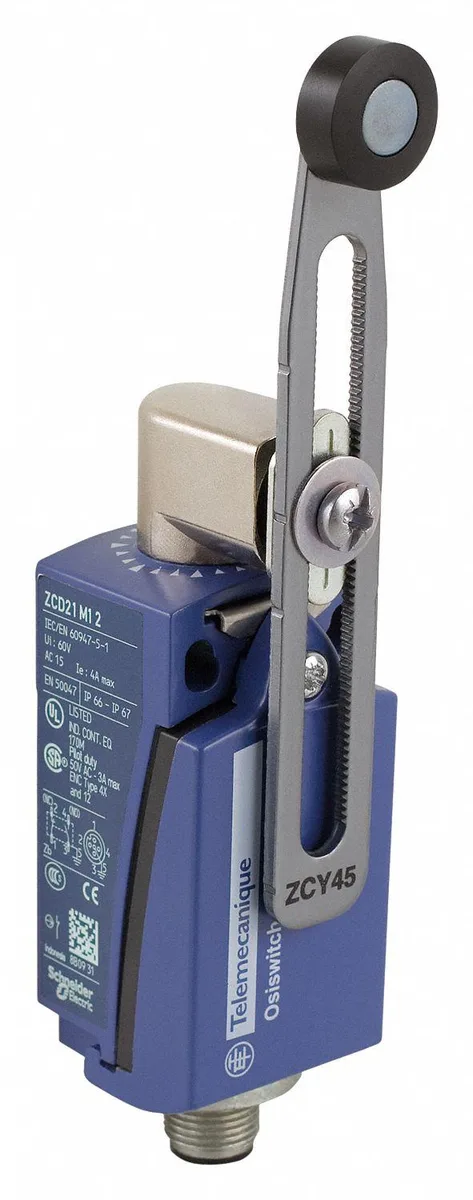

The Telemecanique Sensors XCKD2145M12 is a miniature limit switch with an adjustable roller lever actuator mounted on the side. It suits machinery builders and maintenance teams who need reliable position sensing on conveyors, lifts or automated stations where the actuation point must be fine-tuned.
Side-Mount Miniature Body Installation
The compact body measures 2.56 in high, 1.22 in wide and 1.18 in deep, allowing it to fit in tight machine frames. The lever length adjusts from 1.30 in to 3.29 in so the roller can reach the target without brackets. A common error is over-tightening the lever clamp, which can strip the threads and leave the actuator loose during vibration.
4 A 240 V Contact Capacity
The switch carries 4 A at 240 V on both AC and DC circuits with a 1NC/1NO contact form. It handles standard control relays, small contactor coils and PLC inputs comfortably. The NEMA 3, 3S, 4X and 6P enclosure resists wash-down and temporary submersion, but the contacts are not rated for direct motor starting or high-inrush loads.
Highlights
- Adjustable roller lever sets between 1.30 in and 3.29 in
- Rated 4 A at 240 V for both AC and DC circuits
- Miniature body fits tight spaces at 2.56 in high
- NEMA 3, 3S, 4X, 6P rating resists dust, water and oil
- 1NC/1NO contact form handles open and close signals
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
How do I verify the XCKD2145M12 limit switch operates correctly after wiring?
Confirm the actuator lever moves freely across its 1.30 in to 3.29 in range and listen for the 1NC/1NO contacts to snap at each end of travel.
What comes with the XCKD2145M12 and what must I source separately?
The switch body with adjustable roller lever is included; mounting hardware, wiring and any required conduit fittings are not supplied.
Which NEMA rating on the XCKD2145M12 suits my environment?
The unit carries NEMA 3, 3S, 4X and 6P ratings, so choose based on whether you need rain-tight, ice-resistant, wash-down or prolonged submersion protection.
