Telemecanique Sensors XCKD2102N12 Limit Switch Plunger Roller 1NC/1NO 10A 240V

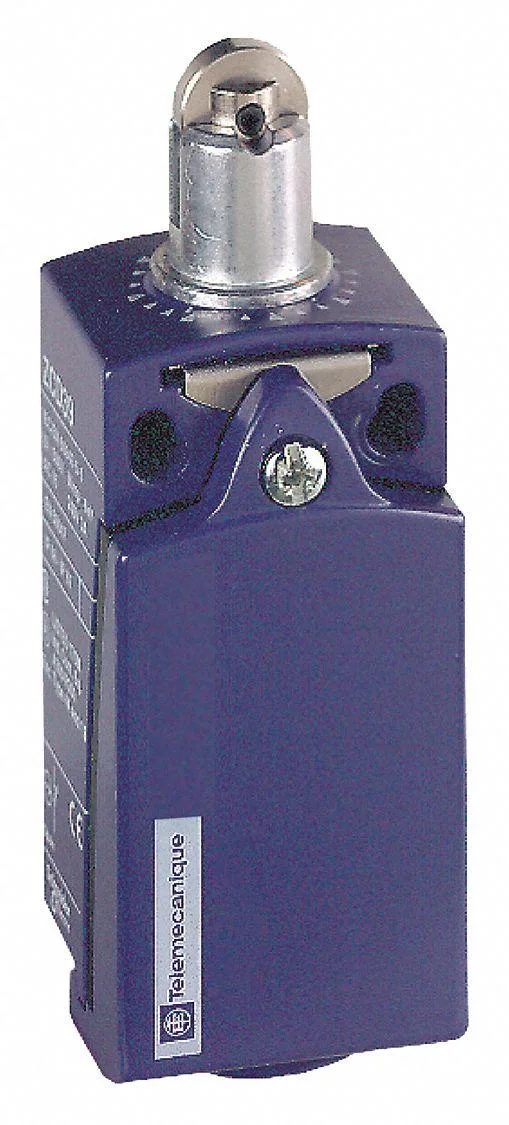

A miniature limit switch with a top-mounted roller plunger rated 10 A at 240 V AC/DC and 1NC/1NO contacts
- Compact miniature body fits tight machine spaces
- Top-mounted roller plunger with .8 in actuator for reliable actuation
- 1NC/1NO contacts rated 10A at 240V AC/DC for versatile control circuits
- NEMA 1, 2, 4, 6, 12, 13 enclosure suits harsh industrial environments
- Rugged Telemecanique Sensors construction ensures long service life
Industrial limit switch
The Telemecanique Sensors XCKD2102N12 is a miniature limit switch with a top-mounted roller plunger actuator. It provides one normally closed and one normally open contact rated at 10A for both AC and DC circuits at 240V. The switch carries NEMA ratings 1, 2, 4, 6, 12 and 13 for environmental protection. It suits machinery control panels and automated equipment requiring reliable position sensing.
Contact capacity and limits
The 10A rating at 240V gives ample headroom for typical control-circuit loads such as relays, solenoids and indicator lamps. The 1NC/1NO configuration allows a single switch to signal both an active and an inactive state to a PLC or safety relay. It is not suited for directly switching high-power motor loads or applications demanding higher current or voltage ratings.
Mounting and integration
The miniature body measures 2.56 in high, 1.22 in wide and 1.18 in deep with an actuator length of 0.8 in, allowing installation in tight enclosures. Top actuation simplifies alignment with cam tracks or moving parts. The lack of a boot seal means the actuator should be shielded from heavy debris or wash-down environments despite the NEMA 4 and 6 ratings on the body.
Highlights
- Compact miniature body fits tight machine spaces
- Top-mounted roller plunger with .8 in actuator for reliable actuation
- 1NC/1NO contacts rated 10A at 240V AC/DC for versatile control circuits
- NEMA 1, 2, 4, 6, 12, 13 enclosure suits harsh industrial environments
- Rugged Telemecanique Sensors construction ensures long service life
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Will the 10 A 240 V contacts work with my existing 240 V control relays?
Yes, the switch provides 1NC/1NO contacts rated at 10 A for both AC and DC at 240 V, matching standard relay coils.
How can I verify the switch actuates correctly once mounted?
Operate the roller plunger manually; the 0.8 in actuator travel should produce a distinct click as the 1NC/1NO contacts change state.
Does the package include mounting hardware or wiring connectors?
The unit is supplied as the switch body only; mounting screws and wire terminals must be sourced separately.
