Telemecanique Sensors
Telemecanique Sensors VM1PNOQ ultrasonic sensor 508mm PNP M12
Rectangular ultrasonic sensor with 508 mm detection range, PNP NO output, 12 to 24 V DC supply and IP67 protection
- 508 mm sensing range for reliable object detection
- PNP normally-open output simplifies PLC wiring
- 12–24 V DC supply fits standard industrial power
- IP67 and NEMA 4X ratings withstand wash-down environments
- Compact 2.35 × 0.71 × 0.71 in body mounts in tight spaces
Ultrasonic Sensor 508 mm Range

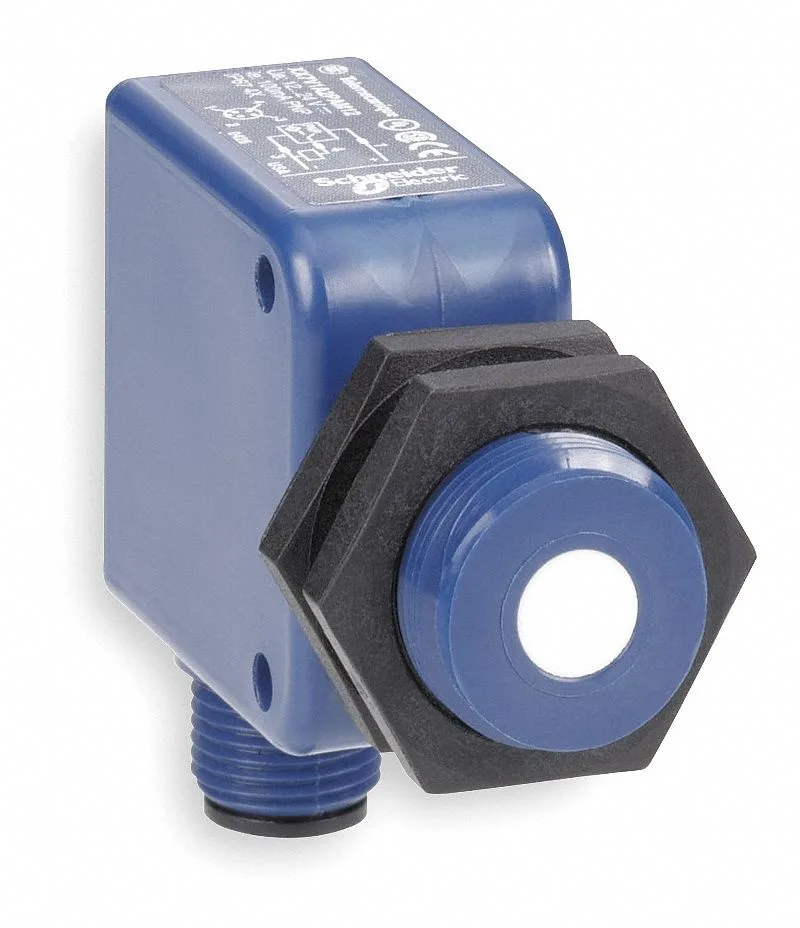

The Telemecanique Sensors VM1PNOQ is a rectangular ultrasonic sensor built for industrial detection tasks. Its plastic housing carries an M12 connector and meets NEMA 4X and IP67 sealing for wet or dusty environments. The unit operates on 12 to 24 V DC and is CE, UL and EN 60947 listed.
508 mm Detecting Distance
The single specification that decides fit is the 508 mm maximum detecting distance at 300 kHz operating frequency. A PNP normally-open output switches up to 40 mA load current. The dual-mount body measures 2.35 in long by 0.71 in wide by 0.71 in deep.
Suits Short-Range Presence Sensing
This sensor suits machine builders who need a compact, sealed presence detector with a half-metre range and M12 wiring. It does not suit applications that require longer sensing distances, analog output, NPN logic or a metal housing.
Highlights
- 508 mm sensing range for reliable object detection
- PNP normally-open output simplifies PLC wiring
- 12–24 V DC supply fits standard industrial power
- IP67 and NEMA 4X ratings withstand wash-down environments
- Compact 2.35 × 0.71 × 0.71 in body mounts in tight spaces
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
What does the 508mm detecting distance mean once the sensor is installed?
It indicates the maximum range at which the ultrasonic sensor can reliably detect an object; actual range depends on target size, material and orientation in the application.
How does the M12 electrical connection limit the sensor's use?
The M12 connector carries 12 to 24V DC power and the PNP NO signal, cabling the sensor to a single discrete input on a PLC or controller.
What does the dual-mount body style require for installation?
The rectangular plastic housing measures 2.35 in long by 0.71 in wide and deep, allowing mounting on two perpendicular faces with standard hardware.
