Telemecanique Sensors
Telemecanique Sensors inductive proximity sensor 15 mm 24-240 V AC/DC 2-wire NO/NC IP69K
Rectangular inductive proximity sensor detects metal at 15 mm, runs on 24-240 V AC/DC, and withstands IP65, IP67 and IP69K wash-downs
- 15 mm sensing range for reliable object detection
- 24-240 V AC/DC supply suits diverse control voltages
- 2-wire NO/NC output simplifies wiring installation
- IP65 IP67 IP69K rating withstands high-pressure washdown
- 13 to 158 °F operating range handles harsh environments
15 mm shielded inductive sensor

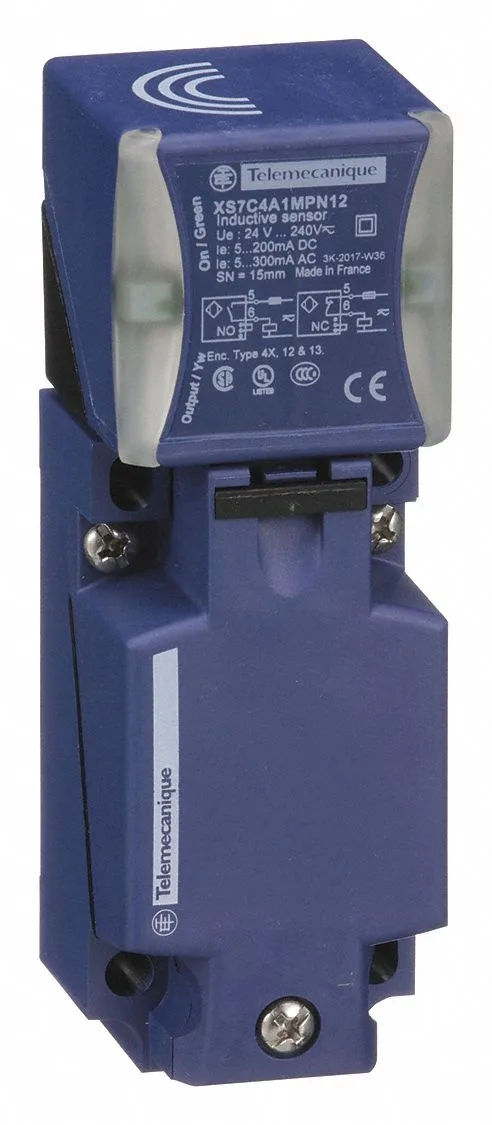

The Telemecanique Sensors XS7C4A1MPN12 is a rectangular inductive proximity sensor with a 15 mm maximum detecting distance. It operates on a wide 24 to 240 V AC/DC supply, making it suitable for industrial automation and machinery monitoring tasks. The shielded construction allows flush mounting in metal environments. This new unit targets maintenance engineers and OEM integrators needing reliable non-contact presence detection.
Two-wire NO/NC output with screw terminals
The sensor provides a selectable normally open or normally closed output through a simple two-wire circuit rated at 300 mA AC or 200 mA DC. Screw clamp terminals enable secure wiring without specialised connectors. An operating frequency of 300 Hz supports fast cycling applications. The plastic housing achieves IP65, IP67 and IP69K ratings for resistance to water jets, temporary immersion and high-pressure washdown.
Verify supply voltage and mounting clearance
Confirm that your control circuit supplies between 24 and 240 V AC or DC before installation. The 117 mm body length and rectangular profile require adequate mounting space on the machine frame. Ensure the 15 mm sensing range meets the target distance with the intended material. Operating temperature spans -13 °F to 158 °F, so check ambient conditions against this range.
Highlights
- 15 mm sensing range for reliable object detection
- 24-240 V AC/DC supply suits diverse control voltages
- 2-wire NO/NC output simplifies wiring installation
- IP65 IP67 IP69K rating withstands high-pressure washdown
- 13 to 158 °F operating range handles harsh environments
Specifications
| Brand | TELEMECANIQUE SENSORS |
|---|
Questions about this item
Does the screw-clamp terminal need periodic re-tightening after installation?
The sensor uses a screw-clamp terminal for wiring; once correctly secured during installation no scheduled re-tightening is required.
What limits continuous operation at the 300 Hz switching frequency?
The 300 Hz operating frequency is the maximum switching speed; sustained use at this rate is limited by the 300 mA AC / 200 mA DC load rating.
How much heat does the sensor generate when running all day at 240 V AC?
The unit operates from -13 °F to 158 °F ambient; self-heating stays within this range when the 300 mA AC load limit is observed.
