TelDaykemei
TelDaykemei AX210 Kit Wi-Fi 6E Bluetooth 5.2 M.2 2230 Key E Desktop Kit with 6dBi Antenna
Adds Wi-Fi 6E and Bluetooth 5.2 to a desktop via an M.2 2230 Key E slot with an external 6 dBi antenna and Windows 10 64-bit support
- TypeM.2 Wi-FI Adapter
- StandardsIEEE 802.11ax/ac
- Wireless Data RatesSpeed up to 2400Mbps (The router must support 802.11ax)
- InterfaceM.2(22*30MM) for wifi
- Frequency Band2.4Ghz/5Ghz/6Ghz
- AntennaDual Band External Antenna
- Adds Wi-Fi 6E with speeds up to 2400 Mbps on 2.4, 5 and 6 GHz bands
- Bluetooth 5.2 for low-latency peripherals and audio
- 6 dBi external antenna extends range and signal quality
- M.2 2230 Key E module fits compatible desktop boards
- WPA3 encryption strengthens data protection on Windows 10 64-bit and Linux
TelDaykemei AX210 Kit Wi-Fi 6E Bluetooth 5.2

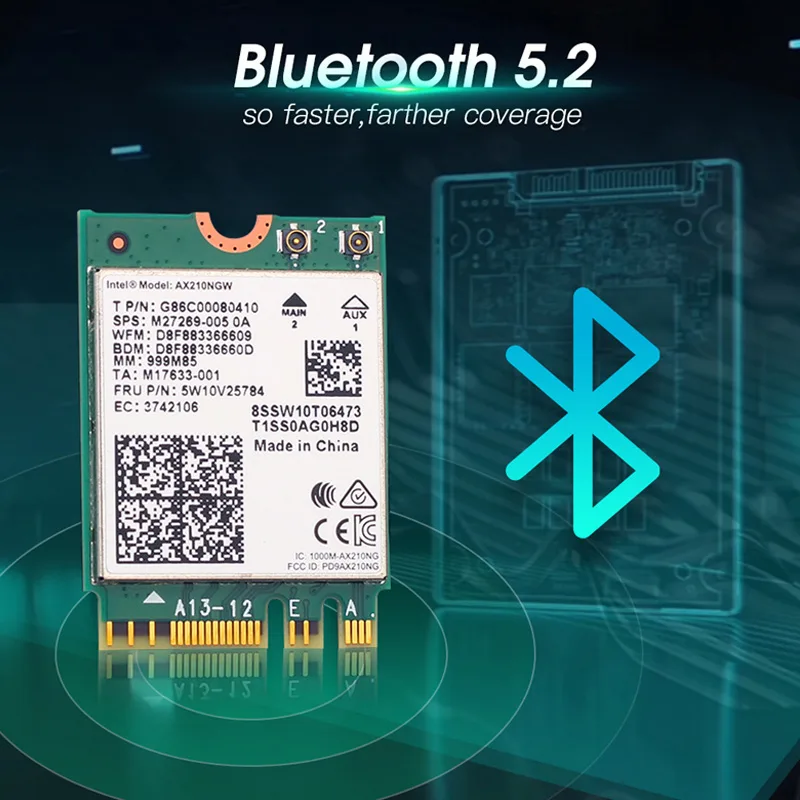

This TelDaykemei AX210 Kit adds Wi-Fi 6E and Bluetooth 5.2 to a desktop PC through an M.2 2230 Key E slot. The package includes the Intel AX210NGW module, a 6dBi external antenna set with 19.5cm leads and 20cm RF cables, plus standard and low-profile mounting brackets. It operates on 2.4GHz, 5GHz and 6GHz bands with a maximum link rate of 2400Mbps when the router supports 802.11ax. WPA3 security and MU-MIMO OFDMA are supported.
Desktop builders with a free Key E slot and no CNVi
Suits Windows 10 64-bit or Linux users who need tri-band Wi-Fi 6E and Bluetooth 5.2 on a motherboard that provides a standard M.2 2230 Key E interface. Not for systems whose Key E socket is wired for Intel CNVi integrated Wi-Fi/BT, as the AX210 module will not function there. Also unsuitable for machines lacking an M.2 Key E slot altogether or running an unsupported operating system.

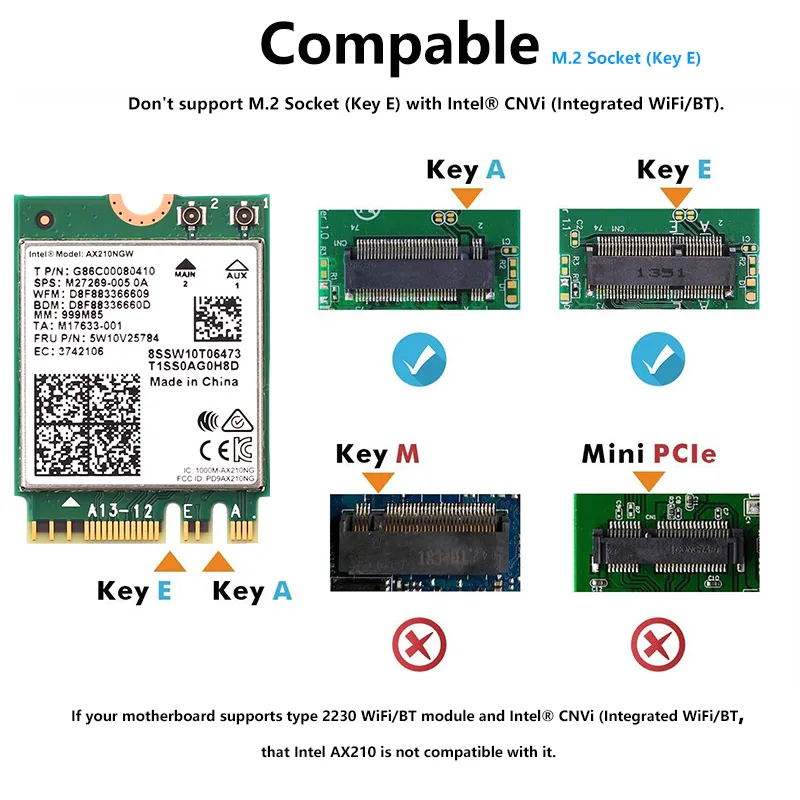

Key E without CNVi is the deciding factor
The single specification that determines compatibility is whether the motherboard exposes a standard M.2 2230 Key E socket that does not implement Intel CNVi. If the slot uses CNVi, this kit will not work regardless of antenna or driver choice. No other spec overrides this constraint.
Highlights
- Adds Wi-Fi 6E with speeds up to 2400 Mbps on 2.4, 5 and 6 GHz bands
- Bluetooth 5.2 for low-latency peripherals and audio
- 6 dBi external antenna extends range and signal quality
- M.2 2230 Key E module fits compatible desktop boards
- WPA3 encryption strengthens data protection on Windows 10 64-bit and Linux
Specifications
| Model | AX210 Kit |
|---|---|
| Type | M.2 Wi-FI Adapter |
| Standards | IEEE 802.11ax/ac |
| Wireless Data Rates | Speed up to 2400Mbps (The router must support 802.11ax) |
| Interface | M.2(22*30MM) for wifi |
| Frequency Band | 2.4Ghz/5Ghz/6Ghz |
| Antenna | Dual Band External Antenna |
| System Requirements | Only Support Windows 10*64bit and Linux |
| Features | Intel Wi-Fi 6E Desktop kit includes M.2 2230 module, optimized external antenna, standard size mounting bracket with RF cables installed and a low profile mounting bracket. Features Bluetooth 5.2 and WPA3 security. Motherboards must have M.2 key E slots to be compatible. |
Questions about this item
What real-world speed does the 802.11ax interface cap at with this AX210 kit?
Up to 2400 Mbps when paired with an 802.11ax router; the 3000 Mbps figure is a theoretical link rate.
What motherboard slot and bracket clearance does the M.2 2230 Key E module need?
An M.2 Key E socket (22×30 mm) plus either the standard or low-profile bracket; CNVi-only Key E sockets are not compatible.
How do I install the kit on Windows 10 64-bit, and what step is often missed?
Seat the module, attach the IPEX cables, mount the bracket, screw on the 6 dBi antennas, then install the Intel driver before enabling Bluetooth 5.2.
