Teday Intel Wi-Fi 6 AX200 (Gig+) Desktop Kit M.2 2230 Key E Wi-Fi adapter

Desktop Wi-Fi 6 Upgrade Kit

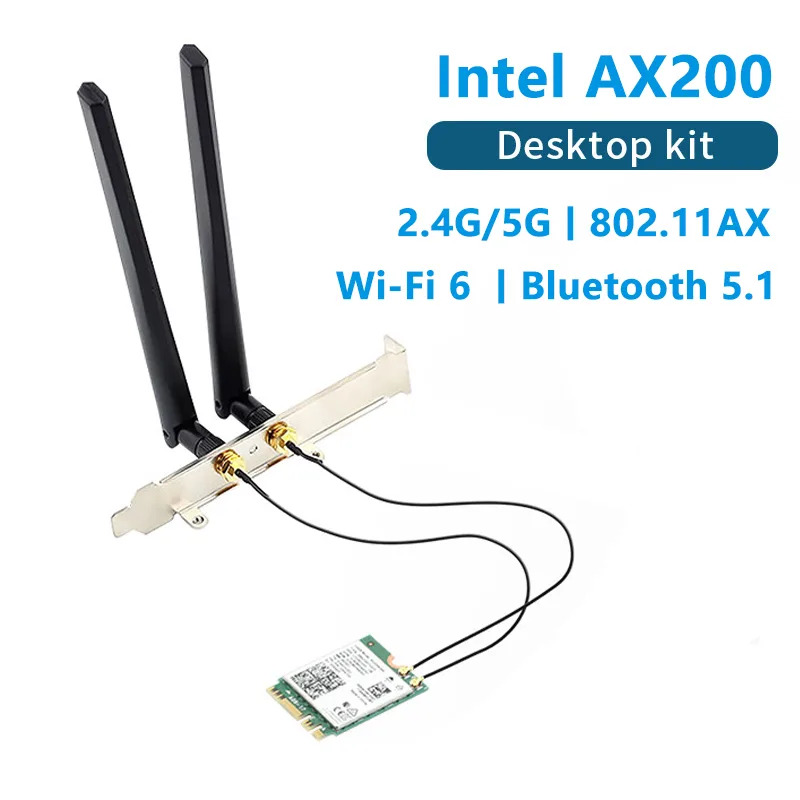

This kit adds Wi-Fi 6 and Bluetooth 5.1 to a desktop PC through an M.2 2230 Key E slot. It is built for users who want a modern wireless connection without replacing their motherboard. The package includes the Intel AX200 module, dual-band external antennas, a standard bracket with cables fitted and a low-profile bracket for compact cases. Only 64-bit Windows 10 and Linux are supported.

Bundled Brackets and Antennas

The standard bracket fits full-height expansion slots while the low-profile bracket suits slim chassis, so the same module works in different case sizes. External antennas attach to the mounted bracket for flexible positioning and better reception than internal-only designs. Both brackets ship with RF cables already connected, removing the need to handle tiny coaxial connectors during installation. No software discs or drivers are included in the box.

M.2 Key E and 160 MHz Requirement

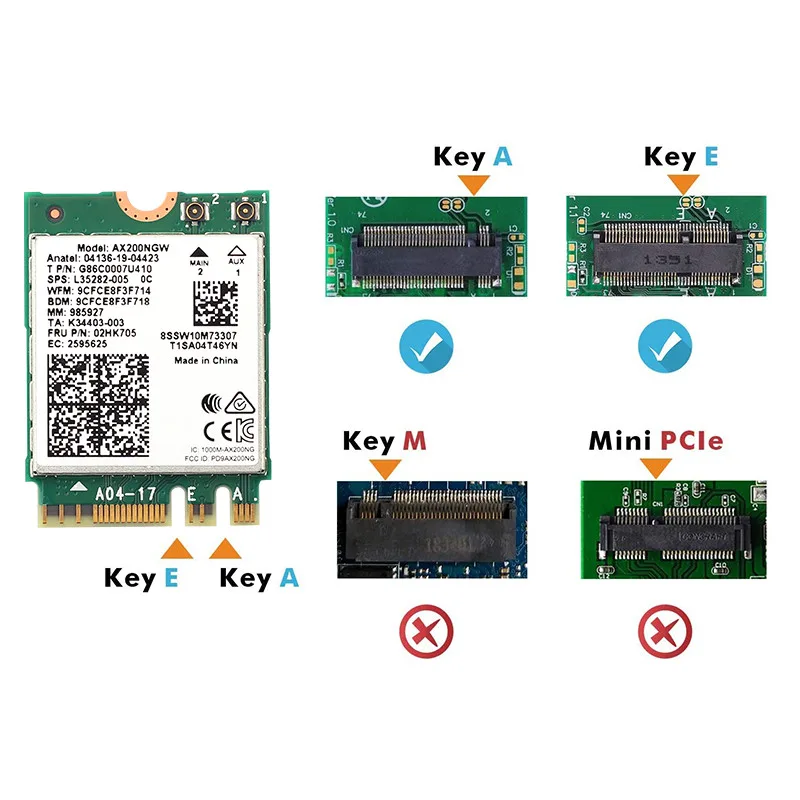

The adapter only fits motherboards with an M.2 2230 Key E slot; it does not work with CNVI slots or Key M SSD slots. Top speeds of 2400 Mbps need a router that supports 802.11ax with 160 MHz channels, so narrower channel widths will reduce throughput. The module operates on 2.4 GHz and 5 GHz bands but cannot reach the advertised rate without the wider channel support.
