Teday AX210 Kit Wi-Fi 6E M.2 2230 Key E Desktop Kit with 6dBi Antenna
Adds tri-band Wi-Fi 6E and Bluetooth 5.2 to desktops via M.2 2230 Key E with included 6dBi antenna
- TypeM.2 Wi-FI Adapter
- StandardsIEEE 802.11ax/ac
- Wireless Data RatesSpeed up to 2400Mbps (The router must support 802.11ax)
- InterfaceM.2(22*30MM) for wifi
- Frequency Band2.4Ghz/5Ghz/6Ghz
- AntennaDual Band External Antenna
- Adds Wi-Fi 6E and Bluetooth 5.2 to desktops via M.2 2230 Key E slot
- 6 dBi external antenna boosts signal across 2.4, 5 and 6 GHz bands
- Up to 2400 Mbps wireless speed with 802.11ax router support
- WPA3 encryption strengthens data protection on Windows 10 64-bit and Linux
- Includes standard and low-profile brackets with 20 cm IPEX cables for flexible mounting
Desktop Wi-Fi 6E Kit

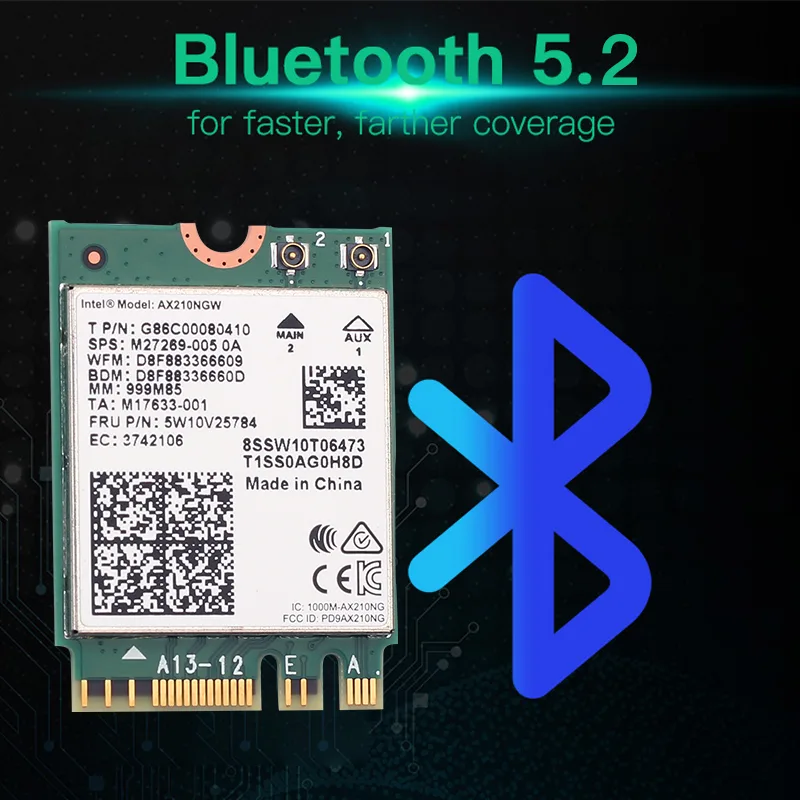

The Teday AX210 Kit adds Wi-Fi 6E and Bluetooth 5.2 to a desktop motherboard with an M.2 Key E slot. It uses an Intel AX210 module and supports 2.4, 5 and 6 GHz bands. The package is aimed at builders who want gigabit-class wireless without a USB dongle. It requires a Windows 10 64-bit or Linux operating system.
M.2 Key E installation

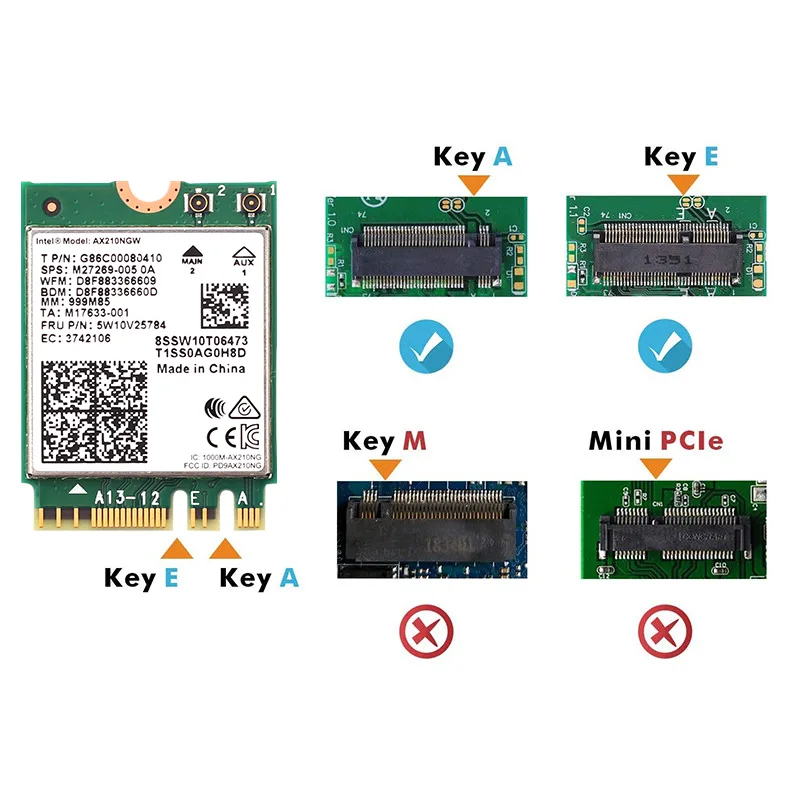

The module fits a 2230 Key E socket that does not use Intel CNVi. A standard-height bracket with pre-fitted RF cables and a low-profile bracket are both included. The 19.5 cm external antennas connect via 20 cm IPEX MHF4 U.FL pigtails. No extra cabling or adapters are needed for a typical desktop build.
Brackets and antenna
Two mounting brackets let the card fit full-size or slim cases. The 6 dBi dual-band antennas replace the usual internal wires for stronger signal. Driver files are available from Intel download centre 204836. The kit does not support motherboards that implement CNVi integration.
Highlights
- Adds Wi-Fi 6E and Bluetooth 5.2 to desktops via M.2 2230 Key E slot
- 6 dBi external antenna boosts signal across 2.4, 5 and 6 GHz bands
- Up to 2400 Mbps wireless speed with 802.11ax router support
- WPA3 encryption strengthens data protection on Windows 10 64-bit and Linux
- Includes standard and low-profile brackets with 20 cm IPEX cables for flexible mounting
Specifications
| Model | AX210 Kit |
|---|---|
| Type | M.2 Wi-FI Adapter |
| Standards | IEEE 802.11ax/ac |
| Wireless Data Rates | Speed up to 2400Mbps (The router must support 802.11ax) |
| Interface | M.2(22*30MM) for wifi |
| Frequency Band | 2.4Ghz/5Ghz/6Ghz |
| Antenna | Dual Band External Antenna |
| System Requirements | Only Support Windows 10*64bit and Linux |
| Features | Intel Wi-Fi 6E Desktop kit includes M.2 2230 module, optimized external antenna, standard size mounting bracket with RF cables installed and a low profile mounting bracket. Features Bluetooth 5.2 and WPA3 security. Motherboards must have M.2 key E slots to be compatible. |
Questions about this item
Does the 2400 Mbps wireless data rate hold up during continuous heavy traffic?
The adapter supports up to 2400 Mbps on 802.11ax networks; sustained throughput will depend on the router, channel congestion and distance to the access point.
How hot does the AX210 module get and does it need active cooling when running all day?
The M.2 2230 module is passively cooled and designed for continuous operation inside a desktop case with normal airflow; no fan or heatsink is required.
Which motherboard slot and operating system are required for this kit to function?
An M.2 Key E socket (22 mm × 30 mm) without Intel CNVi support plus Windows 10 64-bit or Linux is needed; the kit includes both standard and low-profile brackets.
