M.2 2230 Wi-Fi 6E card with dual external 6 dBi antennas and mounting bracket

Teday

Teday AX210 Kit Wi-Fi 6E Bluetooth 5.2 M.2 2230 6 dBi Antenna

SKU CH-84CN-JAPD2

A Wi-Fi 6E and Bluetooth 5.2 desktop kit with an M.2 2230 module, external 6 dBi antenna, and WPA3 security for Windows 10 and Linux

  • StandardsIEEE 802.11ax/ac
  • Wireless Data RatesSpeed up to 2400Mbps (The router must support 802.11ax)
  • InterfaceM.2(22*30MM) for wifi
  • Frequency Band2.4Ghz/5Ghz/6Ghz
  • AntennaDual Band External Antenna
  • System RequirementsOnly Support Windows 10*64bit and Linux
  • Wi-Fi 6E adds the 6 GHz band for less congestion
  • Bluetooth 5.2 enables faster pairing and lower energy use
  • 2x2 MU-MIMO streams deliver up to 2400 Mbps throughput
  • 6 dBi external antenna extends range and signal stability
  • Kit includes M.2 2230 module, cables and two brackets

Wi-Fi 6E M.2 2230 Desktop Kit

The Teday AX210 Kit adds Wi-Fi 6E and Bluetooth 5.2 to a desktop through an M.2 2230 Key E slot. It includes the Intel AX210NGW module, two 6 dBi external antennas with RF cables, and both standard and low-profile mounting brackets. The adapter supports 2.4 GHz, 5 GHz and 6 GHz bands with 2x2 MU-MIMO and OFDMA. Windows 10 64-bit and Linux are the supported operating systems.

Suits builds with a free Key E slot.

This kit suits builders whose motherboard or add-in card provides an M.2 2230 Key E interface with CNVi support. It is not for systems that lack this specific slot, for older Windows versions, or for users who need Chrome OS support even though the chipset lists it. The antennas require external clearance at the rear of the case.

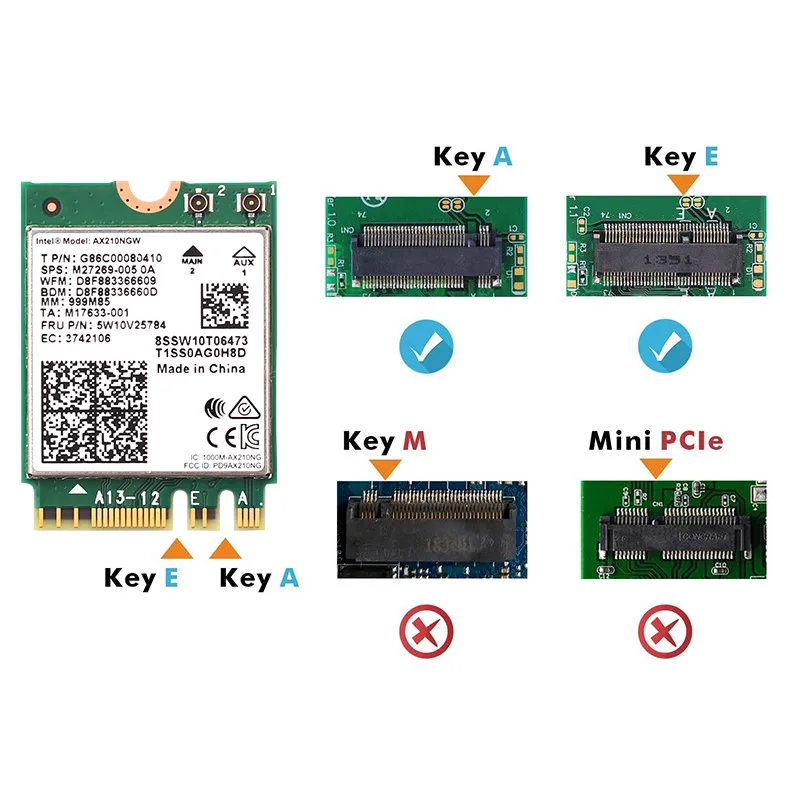

M.2 2230 Key E interface decides fit

The single specification that decides compatibility is the M.2 2230 Key E slot on the host board. Without that exact slot the module cannot be installed and the antenna cables cannot be connected. Verify the slot type before purchase.

Highlights

  • Wi-Fi 6E adds the 6 GHz band for less congestion
  • Bluetooth 5.2 enables faster pairing and lower energy use
  • 2x2 MU-MIMO streams deliver up to 2400 Mbps throughput
  • 6 dBi external antenna extends range and signal stability
  • Kit includes M.2 2230 module, cables and two brackets

Specifications

ModelAX210 Kit
StandardsIEEE 802.11ax/ac
Wireless Data RatesSpeed up to 2400Mbps (The router must support 802.11ax)
InterfaceM.2(22*30MM) for wifi
Frequency Band2.4Ghz/5Ghz/6Ghz
AntennaDual Band External Antenna
System RequirementsOnly Support Windows 10*64bit and Linux
FeaturesIntel Wi-Fi 6E Desktop kit includes M.2 2230 module, optimized external antenna, standard size mounting bracket with RF cables installed and a low profile mounting bracket. Features Bluetooth 5.2 and WPA3 security. Motherboards must have M.2 key E slots to be compatible.
Wireless SpeedUp to 3000 Mbps

Questions about this item

Should I choose the 2.4 Gbps or 3000 Mbps version of this AX210 kit?

The kit is a single SKU; the 2.4 Gbps figure is the 160 MHz Wi-Fi 6E ceiling while 3000 Mbps is the aggregated marketing total across 2.4 GHz, 5 GHz and 6 GHz bands.

What does the 2400 Mbps Wi-Fi 6E rate deliver in a real desktop?

It is the maximum PHY speed on a 160 MHz 6 GHz channel; actual throughput will be lower and requires a Wi-Fi 6E router and Windows 10 64-bit or Linux.

How does the M.2 2230 Key E interface limit performance?

The Key E slot carries PCIe and USB for the AX210NGW module; it does not cap the 2x2 160 MHz Wi-Fi 6E or Bluetooth 5.2 links.
