TAURKENAM OBD2 Breakout Box 16Pin LED Indicator Car Electronics Accessory

Professional OBDII Diagnostic Breakout Box

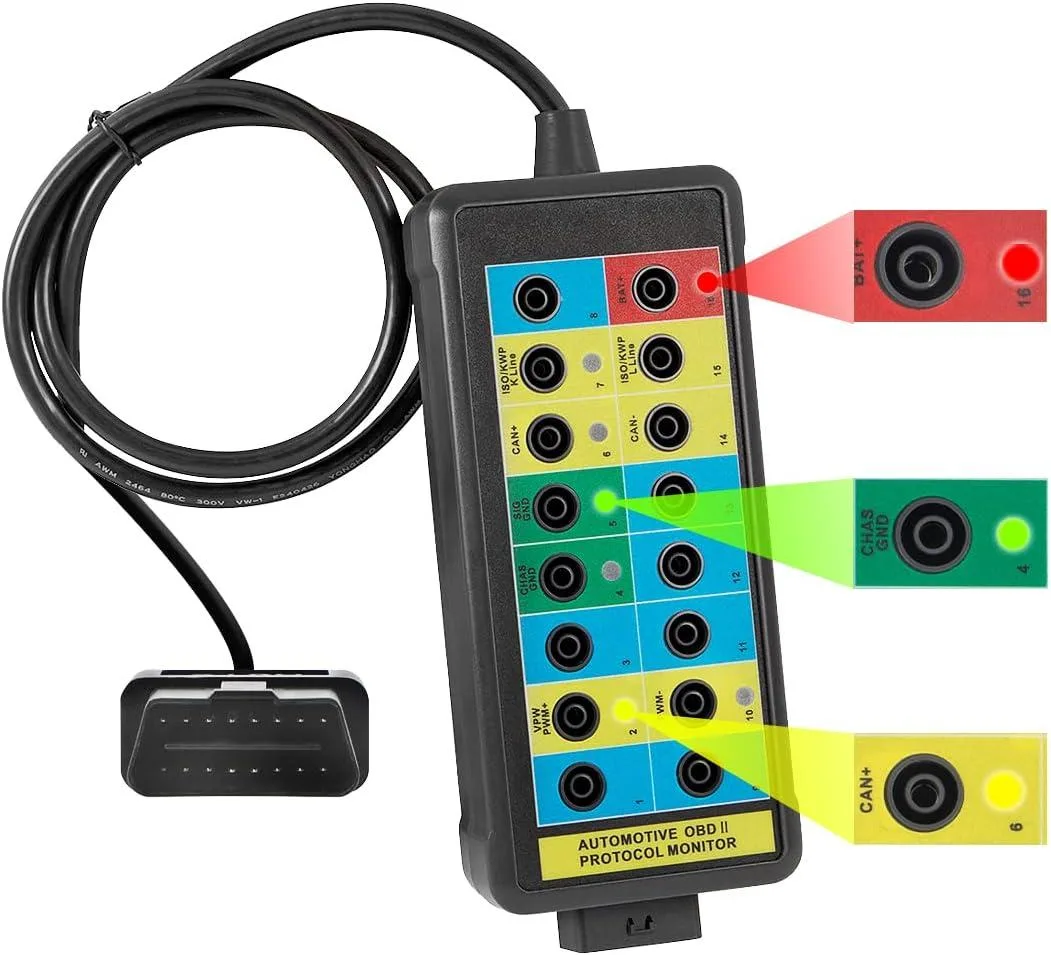

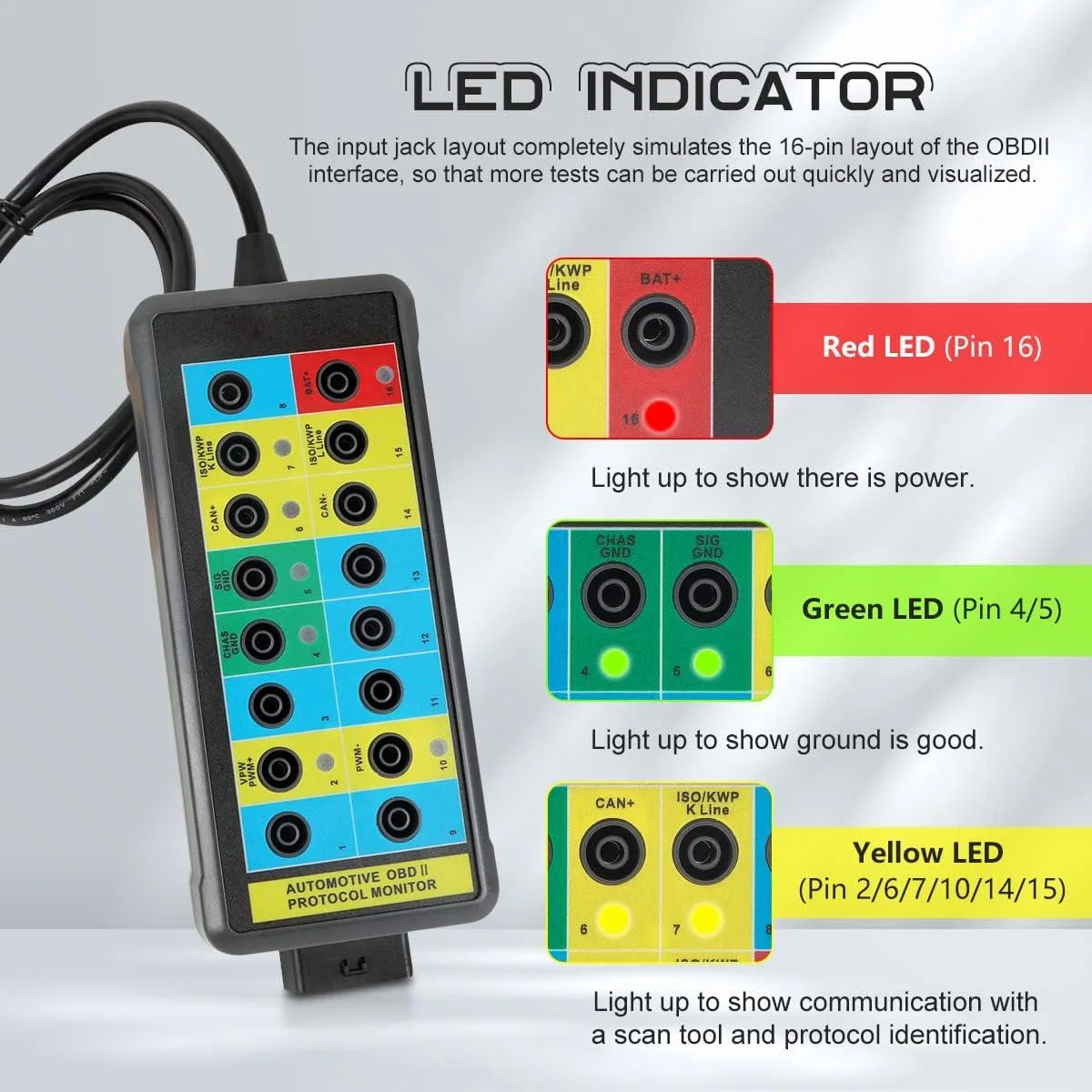

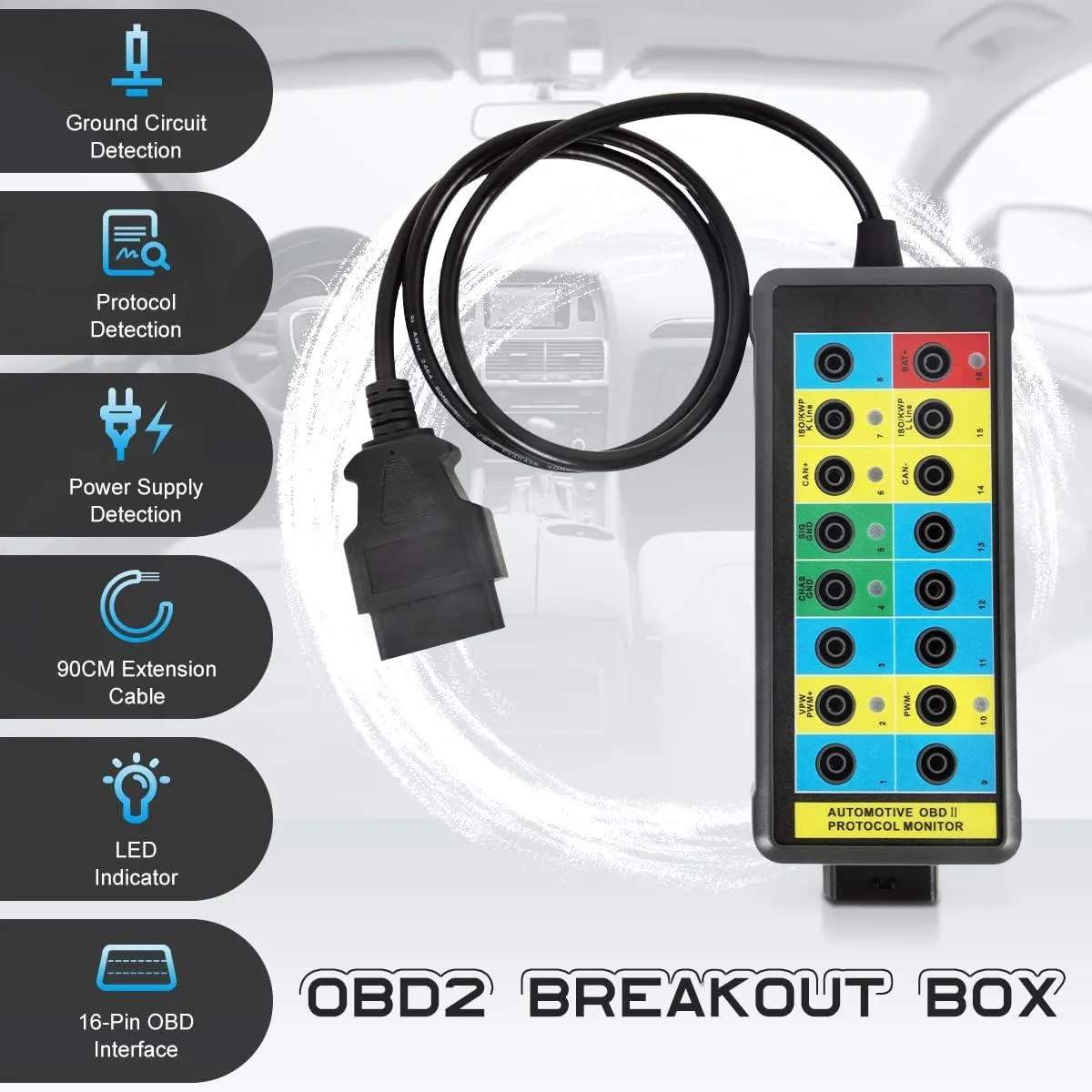

The TAURKENAM OBD2 breakout box is a professional automotive tool for the OBDII diagnostic link connector. It offers easy access for monitoring protocol signals, power supply and grounding circuits conveniently and safely. Yellow LEDs on pins 2, 6, 7, 10, 14 and 15 show communication with a scan tool and protocol identification. Green LEDs on pins 4 and 5 indicate good ground, while a red LED on pin 16 confirms power presence.

Technicians Needing Quick Pin-Level Access

This tool suits technicians who need rapid, pin-level access to the 16-pin OBDII layout for multimeter or oscilloscope testing. The simulated pin layout makes tests quick and intuitive when the decoder communicates with the vehicle. It is not for users who only require a basic code reader without signal monitoring capability. Buyers needing wireless connectivity or built-in scan-tool functions should look at a different class of device.

Verify Vehicle OBDII Port Compatibility

Before ordering, confirm the vehicle uses a standard 16-pin OBDII diagnostic connector. Ensure you have a multimeter or oscilloscope available if you plan to perform further signal testing on unconfirmed signals. Check that the 90 cm extension cable length suits your workspace and tool placement. The box provides easy access to the vehicle data bus lines for protocol, power and ground verification.
