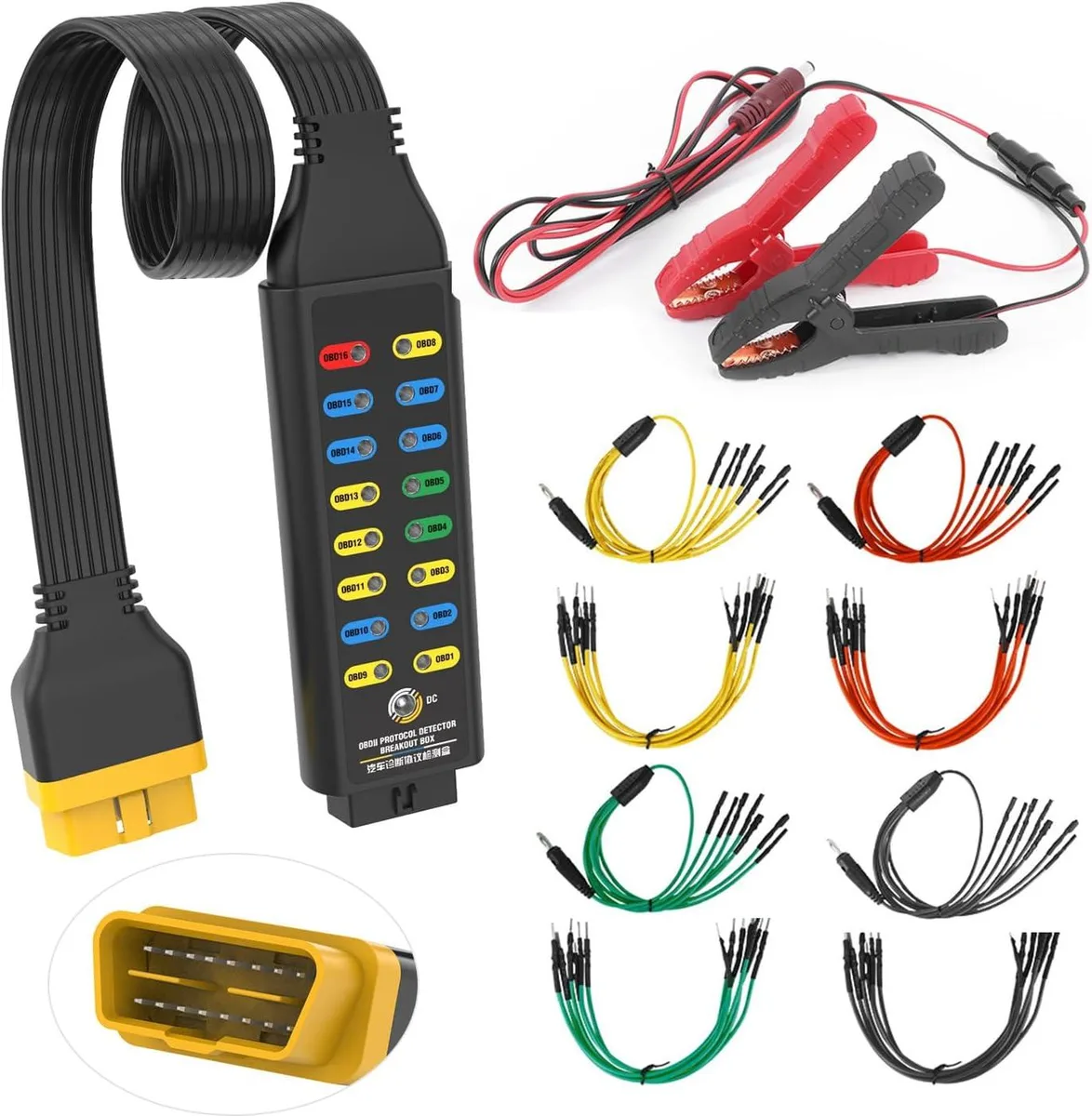

TAURKENAM OBD2 breakout box with 16-pin connector and 17.7in cable

TAURKENAM

TAURKENAM OBD2 Breakout Box 16-Pin 17.7in Cable car electronics accessory

SKU CH-2NE0-0NKZJ

A 16-pin OBDII breakout box with 17.7in cable for monitoring protocol signals, power and ground while connecting multiple diagnostic tools

  • Typetype
  • Monitor multiple scan tools at once with simultaneous OBDII connection
  • Test power, ground and protocol signals directly at the 16-pin interface
  • Power the on-board computer for bench diagnostics without the vehicle battery
  • Connect multimeters or oscilloscopes via built-in 4 mm banana-plug jacks
  • Reach the diagnostic port easily with 17.7 inch cable length

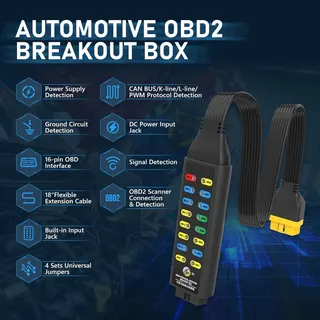

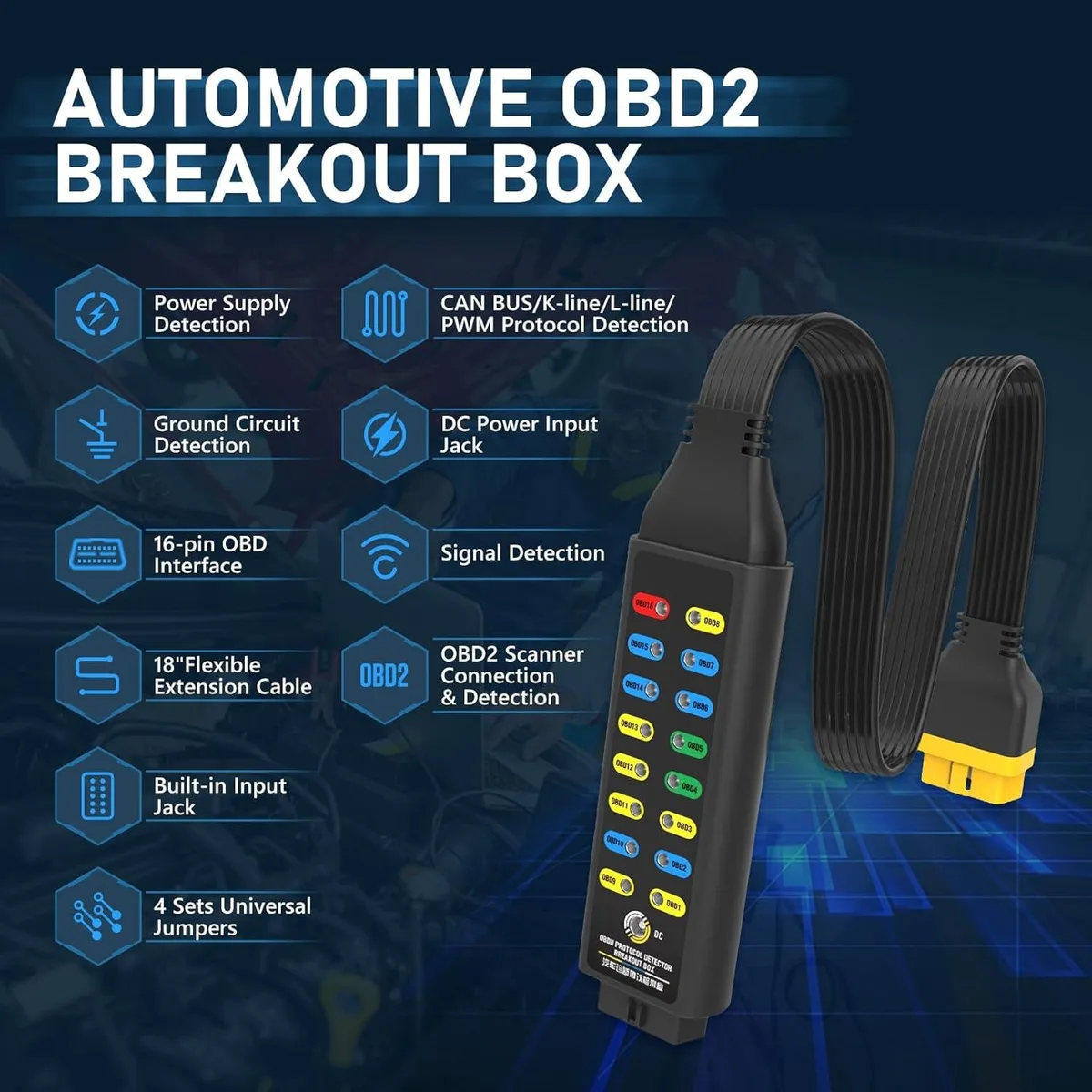

OBD2 Breakout Box 16-Pin

The TAURKENAM OBD2 Breakout Box is a specialised automotive tool designed for the vehicle's OBD diagnostic link connector. It allows simultaneous connection of multiple diagnostic devices for testing. The unit provides convenient access to monitor protocol signals, power and ground circuits. Technicians can connect directly to the vehicle's on-board data link for straightforward bus line access.

Universal Wire Jumper and Clips included

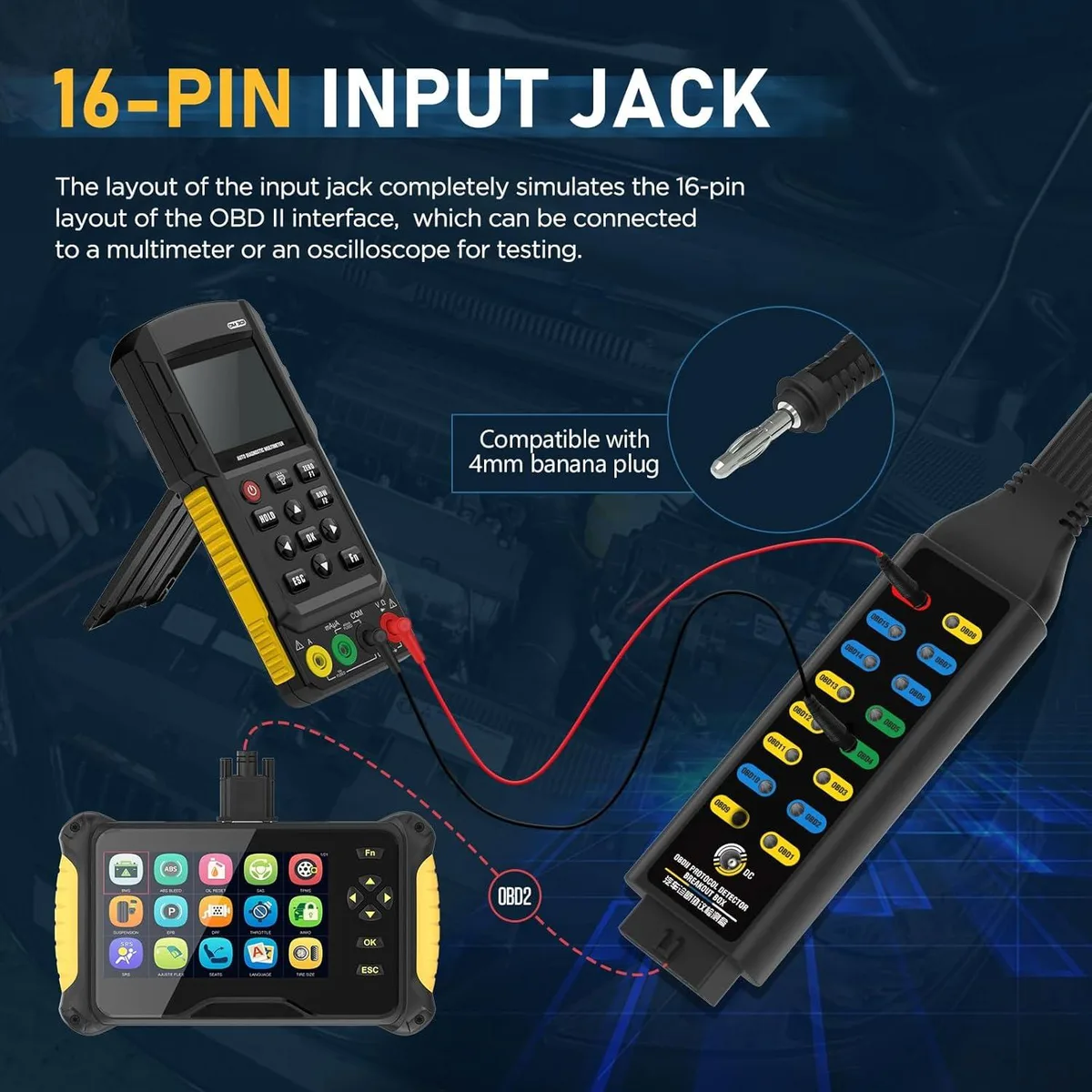

The kit includes a universal wire jumper and clips that expand connection options during diagnostics. Built-in 4mm input jacks accept banana plugs for direct attachment of multimeters or oscilloscopes. This enables in-depth voltage measurements and signal analysis without probing the connector directly. The accessories support powering the on-board computer and testing OBD voltages during service procedures.

Plugs into vehicle OBDII port for access

Installation is a direct plug-in to the vehicle's 16-pin OBDII diagnostic socket using the 17.7 inch cable. The input jack arrangement replicates the standard 16-pin configuration for immediate access to all pins. No software or configuration is required to begin monitoring. Users without automotive electrical knowledge may misinterpret live bus signals or damage circuits if probes are applied incorrectly.

Highlights

  • Monitor multiple scan tools at once with simultaneous OBDII connection
  • Test power, ground and protocol signals directly at the 16-pin interface
  • Power the on-board computer for bench diagnostics without the vehicle battery
  • Connect multimeters or oscilloscopes via built-in 4 mm banana-plug jacks
  • Reach the diagnostic port easily with 17.7 inch cable length

Specifications

Typetype

Questions about this item

Will the 16-pin connector or the 4 mm banana jacks need replacement after repeated use?

The 16-pin interface and built-in 4 mm banana jacks are designed for repeated diagnostic connections; no replaceable contacts or wear items are specified.

What limits continuous operation when the breakout box is left plugged into the OBDII port all day?

The tool draws power from the vehicle's data link, so the vehicle battery capacity and the 17.7-inch cable's current handling are the practical limits.

Does the 17.7-inch cable or the box itself get hot or make noise during extended diagnostics?

The breakout box has no active electronics, fan or moving parts, so it produces no audible noise and generates no measurable heat during use.
