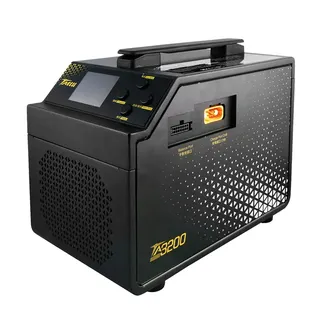

Tattu TA3200 dual-channel smart charger, rectangular black unit with front display and side vents

Tattu

Tattu TA3200 3200W Dual-Channel Smart Charger drone accessory

SKU CH-Y570-03AP0

Dual-channel smart charger delivers up to 3200W per channel with 60A maximum current for 6S-14S LiPo batteries

  • Charges two battery packs at once with 3200 W per channel
  • Up to 60 A current cuts recharge time for large packs
  • Three selectable current steps match 110 V or 220 V supply
  • 2 × 70 W discharge lets you store batteries safely
  • DroneCAN recognition enables secure communication with Tattu Plus 1.0 16000 mAh and 6–14 S packs

Dual-Channel Smart Charger

The Tattu TA3200 delivers up to 3200W per channel for Tattu Plus Flight Batteries. It supports LiPo 6-14S packs and recognises DroneCAN protocol batteries for safe, automated operation. Two channels charge simultaneously, cutting downtime for professional drone operators.

Charging modes and current selection

Three optimised modes cover fast charging, normal charging and storage for standard and HV LiPo chemistries. At 220V input the normal mode offers 6A, 16A and 32A choices; at 110V input it offers 10A, 16A and 22A. Maximum charge current reaches 60A while discharge handles 2x 70W for maintenance cycles.

Battery compatibility constraint

This charger is built specifically for Tattu Plus Smart Batteries such as the 1.0 16000mAh compact pack and other soft-pack models from 6S to 14S. Pilots using different brands, cell counts outside that range, or packs without DroneCAN support should look at other charging solutions.

Highlights

  • Charges two battery packs at once with 3200 W per channel
  • Up to 60 A current cuts recharge time for large packs
  • Three selectable current steps match 110 V or 220 V supply
  • 2 × 70 W discharge lets you store batteries safely
  • DroneCAN recognition enables secure communication with Tattu Plus 1.0 16000 mAh and 6–14 S packs

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the TA3200 charger and what step is often missed?

Connect the charger to a 220V or 110V mains supply, attach up to two Tattu Plus Flight Batteries using their balance and main leads, then select the correct cell count (6S to 14S) and charge mode — users often forget to set the charge current to 32A, 16A or 6A for 220V input.

What maintenance or replacement will the TA3200 need later?

The charger itself has no user-serviceable parts; ongoing maintenance is limited to keeping its cooling vents clear and inspecting the battery connectors for wear, while the Tattu Plus 1.0 16000mAh Smart Batteries will eventually require replacement after many charge cycles.

What limit appears first during sustained high-power charging?

Each channel is capped at 3200W and 60A, so continuous fast charging at 32A (220V) or 22A (110V) will hit the current limit before the power limit, and the 2x 70W discharge capacity restricts how quickly batteries can be put into storage mode.
