Targus
Targus DOCK180USZ docking station 60W
A USB-C docking station delivering 60W laptop charging, dual 4K monitor support, four USB 3.0 ports, Gigabit Ethernet and audio in a compact wedge design
- ColorBlack
- CompatibilityWindows (10/8.1/7), Mac OS X (10.12/10.11/10.10), Android (5
- Ports Spec2 x HDMI 2.0 Ports 2 x DisplayPort 1.2a Ports 1 x USB-C Port
- Dimension6.75" x 1.50" x 3.60" (W x H x D)
- Weight0.81 lbs
- FeaturesSupports dual 4K Ultra HD monitor video via 2 DisplayPort (D
- Dual 4K monitor support via two DisplayPort and two HDMI ports
- Up to 60W laptop charging through Power Delivery 2.0
- Thunderbolt 3 compatible for broad device connectivity
- Four USB 3.0 ports including one fast-charging port for peripherals

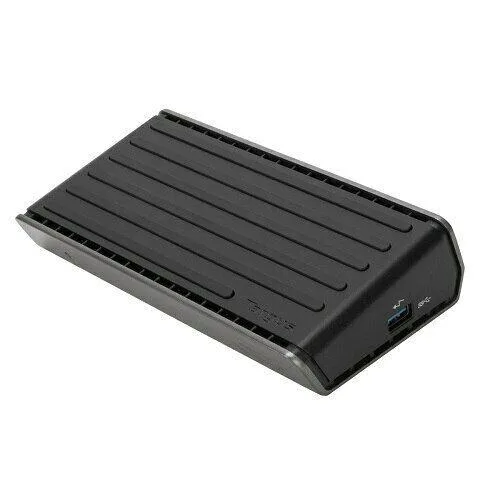

- Compact wedge design props up laptop to save desk space
Universal USB-C dock with 60W power
This Targus DOCK180USZ docking station connects a USB-C laptop to dual 4K monitors, wired Ethernet and multiple peripherals through a single cable. Power Delivery 2.0 supplies up to 60W to keep the host machine charged while you work. The compact wedge design also props the laptop up to save desk space.
Suits users needing dual 4K video
Ideal for professionals who run two ultra-HD displays and want 60W pass-through power from one USB-C link. Not suited for buyers who need more than 60W charging, Thunderbolt 4 certification, or additional video outputs beyond the four provided.
Bundled 1-metre USB-C host cable enables immediate

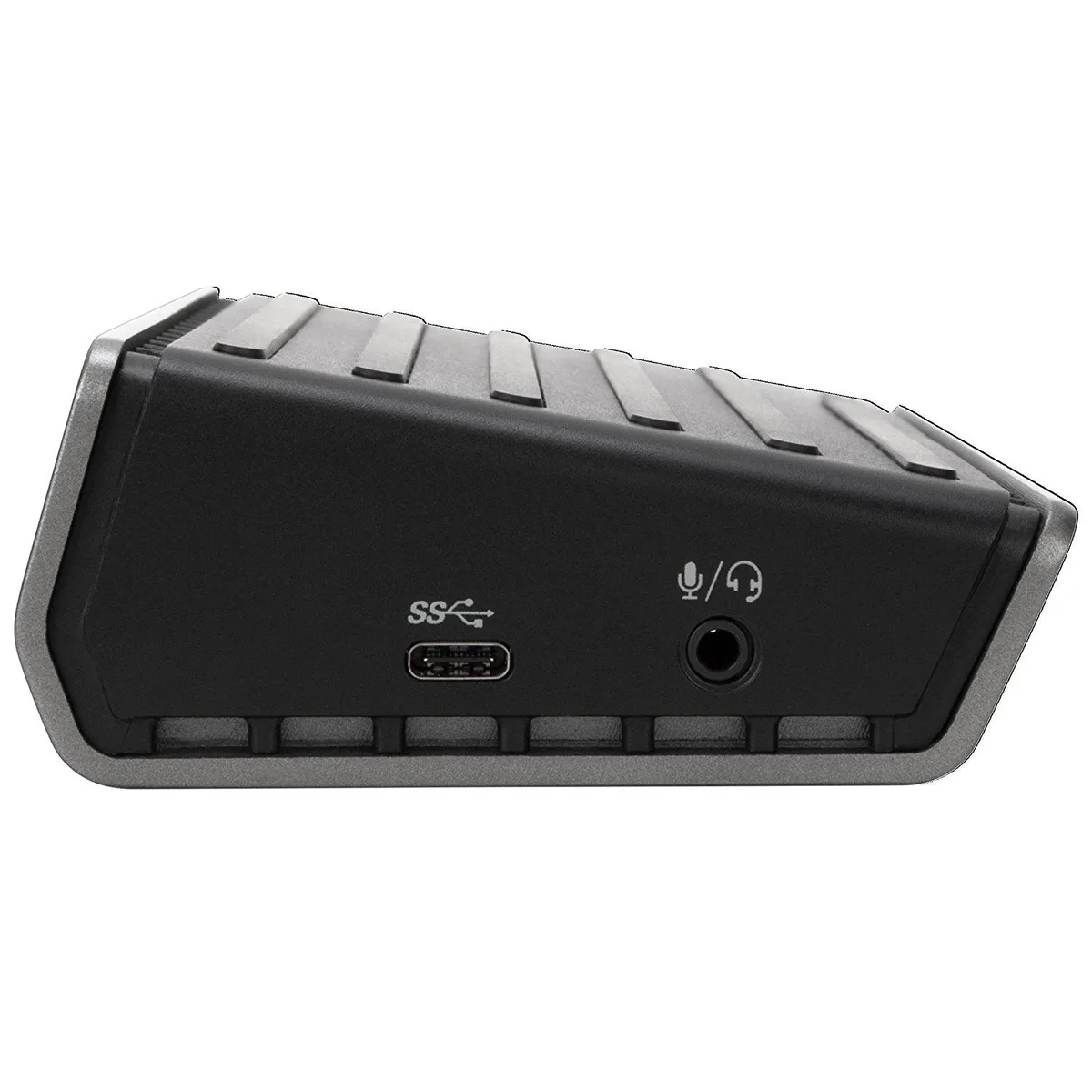

The detachable cable is included so the dock works straight out of the box without a separate purchase. Four USB 3.0 ports (one high-power for device charging) plus a 3.5mm combo audio jack expand connectivity for peripherals, headsets and microphones.
Highlights
- Dual 4K monitor support via two DisplayPort and two HDMI ports
- Up to 60W laptop charging through Power Delivery 2.0
- Thunderbolt 3 compatible for broad device connectivity

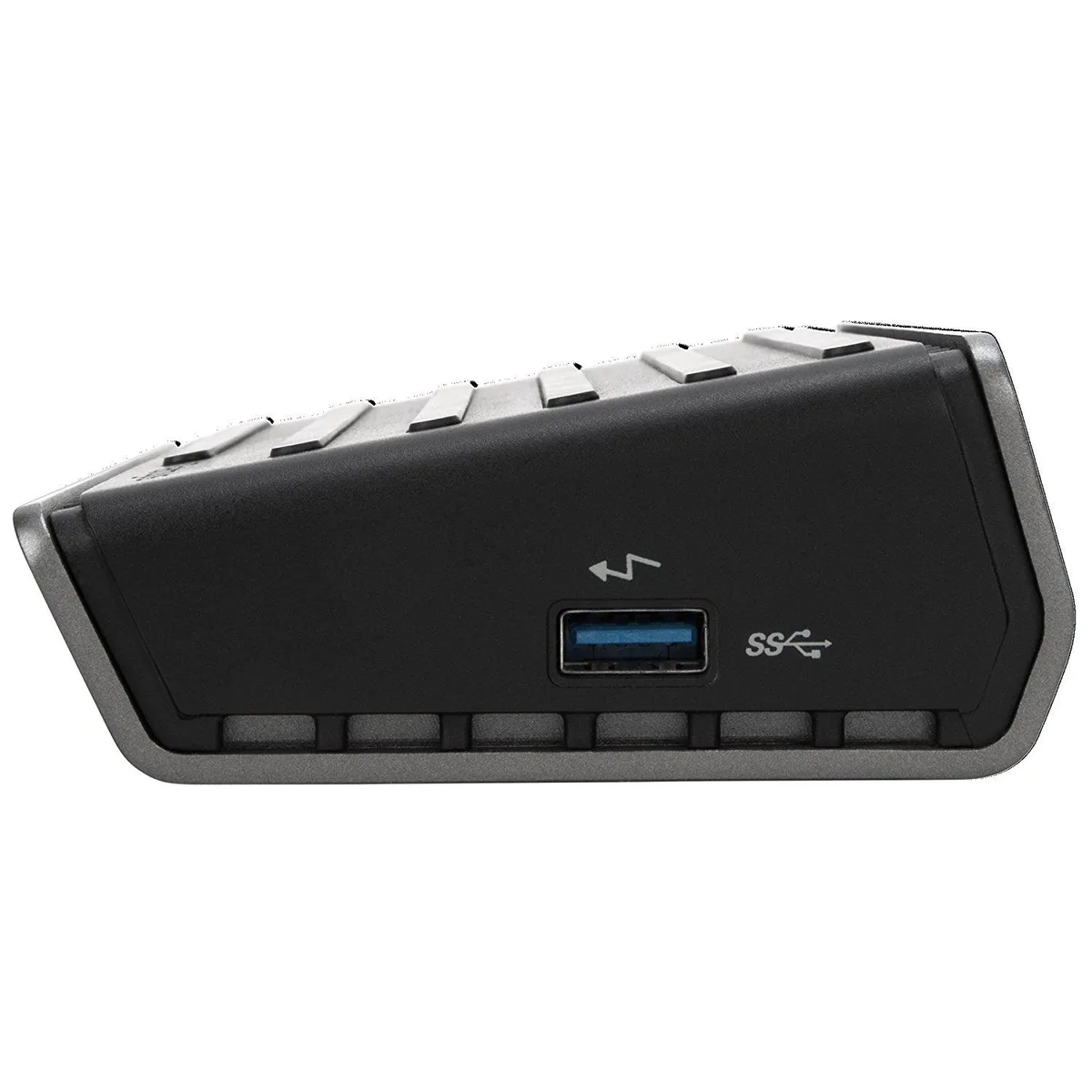

- Four USB 3.0 ports including one fast-charging port for peripherals
- Compact wedge design props up laptop to save desk space
Specifications
| Brand | Targus |
|---|---|
| Model | DOCK180USZ |
| Color | Black |
| Compatibility | Windows (10/8.1/7), Mac OS X (10.12/10.11/10.10), Android (5.0 or later), Chrome (R51 or later), Ubuntu Linux |

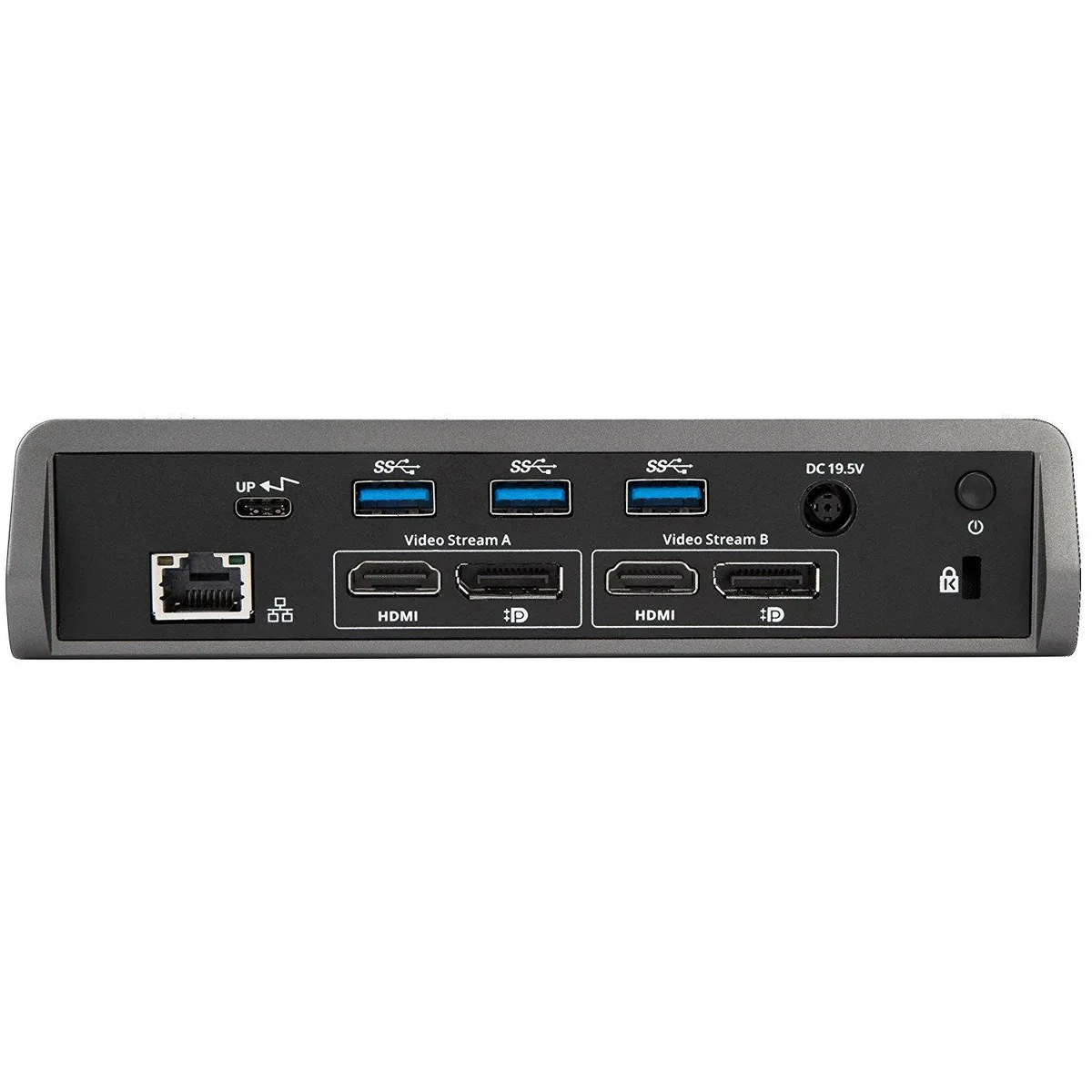

| Ports Spec | 2 x HDMI 2.0 Ports 2 x DisplayPort 1.2a Ports 1 x USB-C Port (USB 3.0 data only), 4 x USB 3.0 SuperSpeed Ports (1 powered for fast device charging) 1 x Audio In/Out Port |
| Dimension | 6.75" x 1.50" x 3.60" (W x H x D) |
| Weight | 0.81 lbs |
| Features | Supports dual 4K Ultra HD monitor video via 2 DisplayPort (DP 1.2a) and 2 HDMI (HDMI 2.0) ports Power Delivery 2.0 provides up to 60W charging Thunderbolt 3 compatible 1 USB-C device port (USB 3.0 data only) 1 Gigabit Ethernet port for secure, wire speed Ethernet access 4 USB 3.0 ports for the latest peripherals (1 fast device-charging port) 1 3.5mm combo Audio In/Out for mics, speakers, and earphones Includes 1-meter USB-C to C host cable (detachable) Ergonomic wedge design provides comfortable typing angle and minimizes desk real estate Integrated lock slot accommodates industry-st |
| Option | 60W |
| Shipping weight | 1.36 kg |
| Package size | 305 × 229 × 102 mm |
Questions about this item
Does my laptop need a USB-C port that supports Power Delivery to charge through the DOCK180USZ?
Yes, the dock delivers up to 60W charging via Power Delivery 2.0, so the host USB-C port must accept Power Delivery input for charging to occur.
Will the dock's 2.0 DisplayPort and HDMI outputs work with monitors that only have 1.2 DisplayPort or 1.4 HDMI inputs?
The dock provides DisplayPort 1.2a and HDMI 2.0 signals; monitors with older DisplayPort or HDMI versions will typically negotiate a compatible mode and display an image.
After connecting everything, how can I confirm the dock is delivering the full 60W charge to my laptop?
Check your laptop's battery or power settings while the dock is connected; it should report the incoming charge rate at or near 60W when the system is under load.
