Bronze hydronic circulating pump with flange connections and terminal box

Taco Inc

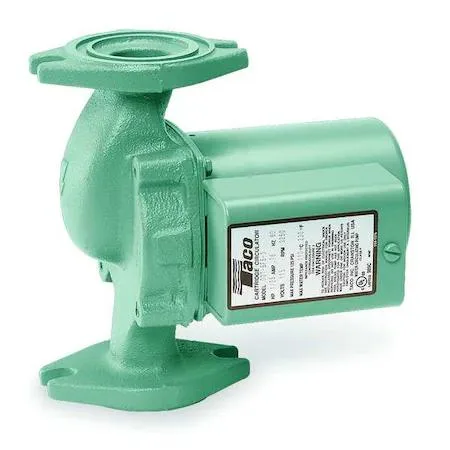

Taco Inc 008-F6 Hydronic Circulating Pump 1/25 hp 115V Flange

SKU CH-BMXC-DSQ01

Hydronic circulating pump delivers up to 15 gpm at 1 ft head for potable water systems

  • 1/25 hp motor runs on standard 115V power
  • single-speed design simplifies hydronic system wiring
  • 16 ft maximum head handles multi-storey circulation
  • 15 gpm at 1 ft head delivers strong flow
  • flange connection fits 3/4 to 1 1/2 in pipe sizes

Pump purpose and fit

The Taco 008-F6 is a hydronic circulating pump rated at 1/25 hp for 115 V single-phase supply. It moves water in closed-loop heating or cooling systems and accepts flange connections with compatible pipe sizes from 3/4 in up to 1 1/2 in. The pump is approved for potable water use and delivers a maximum head of 16 ft.

Who benefits and who should look elsewhere

Installers needing a single-speed circulator for light-duty hydronic loops will find the 8 gpm at 10 ft head and 2 gpm at 15 ft head suitable for small zones. Buyers who want variable-speed control, higher flow at greater head, or a pump that includes flanges in the box should look at other models.

Installation notes and common issues

The unit mounts between existing flanges with a 6 3/8 in face-to-face dimension, so verify spacing before ordering. Because flanges are not included, you must supply matching hardware and gaskets. A frequent issue is discovering mismatched bolt patterns or insufficient clearance only after the system is drained.

Highlights

  • 1/25 hp motor runs on standard 115V power
  • single-speed design simplifies hydronic system wiring
  • 16 ft maximum head handles multi-storey circulation
  • 15 gpm at 1 ft head delivers strong flow
  • flange connection fits 3/4 to 1 1/2 in pipe sizes

Specifications

BrandTACO

Questions about this item

What pipe sizes does the pump's flange connection accept?

The pump is compatible with 3/4 in, 1 in, 1 1/4 in, and 1 1/2 in intake pipe sizes using a flange connection.

Will the pump's 16 ft maximum head work with my existing 15 ft head system?

Yes, the pump provides a maximum head of 16 ft and delivers 2 gpm at 15 ft of head, matching your system requirement.

How can I verify the pump is moving fluid correctly after installation?

Check that the flow rate reaches 15 gpm at 1 ft of head or 8 gpm at 10 ft of head, confirming the pump operates within its rated performance.
