Taco 0010-F3 hydronic circulating pump flange connection 115V single phase 1/8 hp

Taco Inc

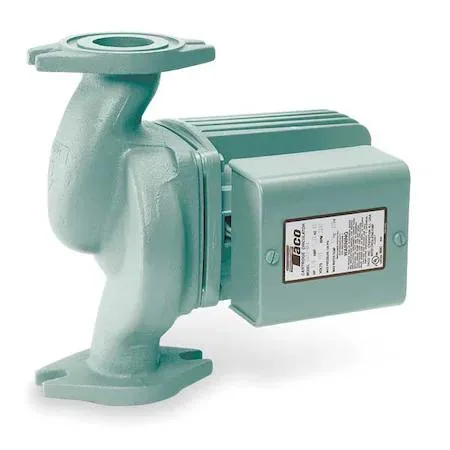

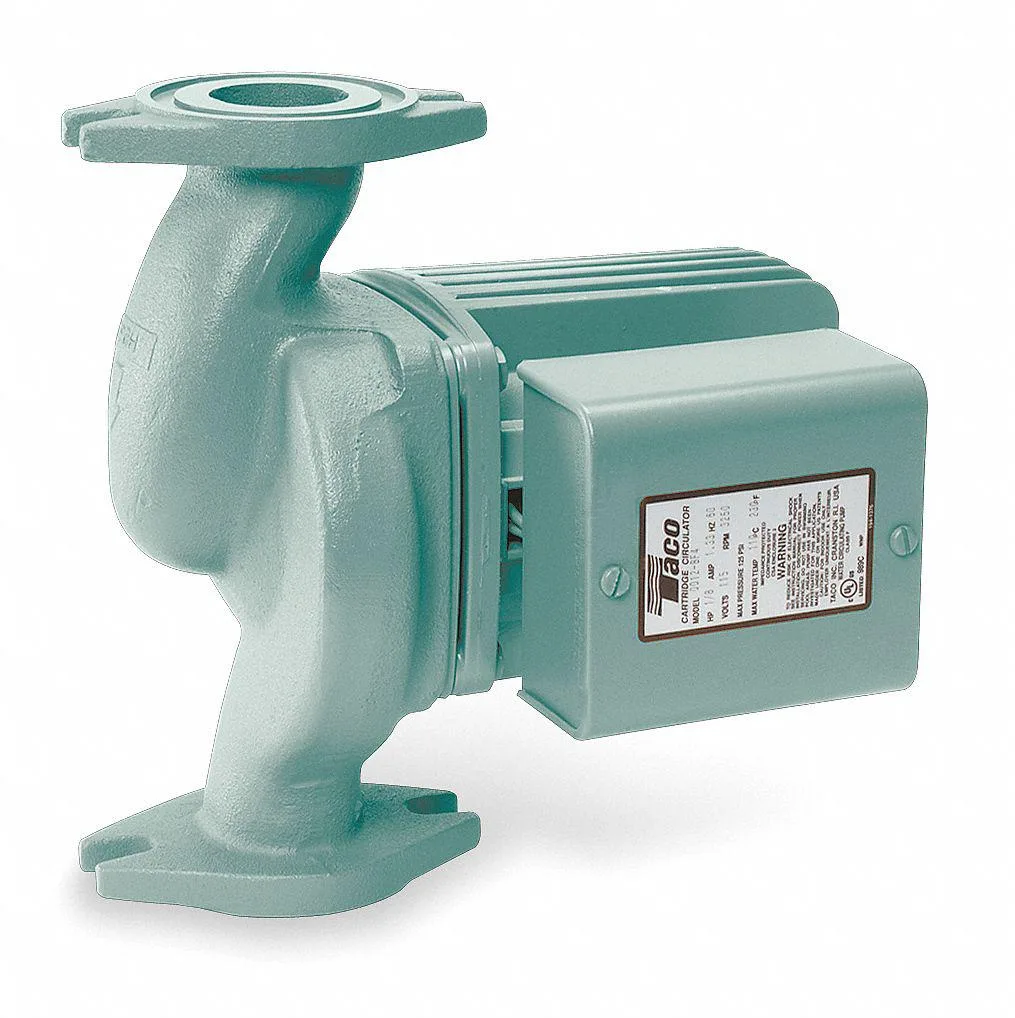

Taco Inc 0010-F3 Hydronic Circulating Pump 1/8 hp 115V 1 Phase Flange

SKU CH-EBX3-Y66J8

Hydronic circulating pump delivers up to 32 gpm at 1 ft head and 22 gpm at 5 ft head on 115 V single-phase power

  • Delivers 32 gpm at 1 foot of head for strong low-head circulation
  • Maintains 22 gpm at 5 feet of head for typical system resistance
  • Handles up to 10 feet of head for multi-story hydronic loops
  • Single-phase 115V AC motor simplifies residential wiring
  • Approved for potable water systems for safe domestic hot water recirculation

Hydronic Pump for Heating Systems

The Taco 0010-F3 is a standard hydronic circulating pump designed to move heated water through residential or light-commercial hydronic loops. It operates on single-phase 115V AC power with a 1/8 hp motor and a single-speed configuration. The pump connects via flange with a face-to-face dimension of 6 3/8 in and suits potable water applications. Builders installing or replacing a circulator in a boiler-fed distribution system will find it matches the 00 series footprint.

Flange Connection and Flow Performance

The unit ships without a flange or union included, so the installer must supply compatible flanges for the 3/4 in, 1 in, 1 1/4 in or 1 1/2 in intake pipe sizes. At 1 foot of head the pump delivers up to 32 gpm, falling to 22 gpm at 5 feet and 0 gpm at the 10-foot maximum head. These figures define the usable curve for gravity-fed or low-pressure loops. No accessories, controls or software are bundled with the pump body.

Direct Replacement Installation

The pump bolts between existing flanges using the 6 3/8 in face-to-face spacing common to the 00 series, so removal of the old volute and motor assembly is usually straightforward. Alignment of the flange gaskets is the step most often missed; uneven tightening can cause weeping at the joints. Because the motor is single-speed and single-phase, wiring is limited to line, neutral and ground with no low-voltage control terminals to configure. Verify the system is purged of air before first start to avoid dry running.

Highlights

  • Delivers 32 gpm at 1 foot of head for strong low-head circulation
  • Maintains 22 gpm at 5 feet of head for typical system resistance
  • Handles up to 10 feet of head for multi-story hydronic loops
  • Single-phase 115V AC motor simplifies residential wiring
  • Approved for potable water systems for safe domestic hot water recirculation

Specifications

BrandTACO

Questions about this item

How often will the flange gaskets need replacing on the 0010-F3 pump?

The pump uses a flange connection without included gaskets, so plan to inspect and replace the flange gaskets during routine system maintenance or whenever the pump is removed for service.

What flow limit appears first when the 0010-F3 runs continuously at its 10 ft maximum head?

At the rated 10 ft of head the pump delivers 0 gpm, meaning the head limit is reached before any usable flow can be sustained.

How much power does the 1/8 hp motor draw from a 115 V circuit during all-day operation?

The single-speed 1/8 hp motor runs on 115 V AC single-phase power; actual wattage will depend on the motor's nameplate amperage and the system load.
