Synology Inc.
Synology RXD1215sas 12-Bay Rackmount NAS Expansion Unit
A 12-bay SAS expansion unit that scales a Synology RC18015xs+ to 180 drives with redundant power and cooling
- Port USB2 x USB3.0
- Form FactorRackmount
- ProcessorIntel Xeon E3-1230 v2 Quad Core 3.3 GHz
- Installed Memory4 GB X 2 DDR3 ECC
- Included HDD CapacityDiskless System
- Power100-240 VAC 50/60Hz
- Massive scalability up to 180 drives with 15 expansion units
- Redundant power and cooling keep the system running during component failure
- Intel Xeon E3-1230 v2 3.3 GHz quad-core processor handles demanding workloads
- 4 GB DDR3 ECC memory installed for data integrity
- 2 USB 3.0 ports provide fast peripheral connectivity
12-bay SAS expansion unit for RC18015xs+
The Synology RXD1215sas is a diskless 12-bay rackmount expansion unit built to attach to the RC18015xs+ RackStation. It uses an Intel Xeon E3-1230 v2 quad-core processor running at 3.3 GHz with 8 GB of DDR3 ECC memory. The unit provides raw storage scaling up to 180 drives when fifteen units are connected. It is intended for businesses that need high-capacity shared storage without network replication.
Check host compatibility and cabling
This expansion unit only operates when linked to a Synology RC18015xs+ host; it cannot function as a standalone NAS. Verify that the host has available SAS ports for the two included MiniSAS cables. Confirm the rack has 1U of vertical space and sufficient depth for the 18.90-inch chassis. Ensure the site power supplies 100-240 VAC at 50/60 Hz for the dual redundant power cords.
Redundant cooling and power for continuous operation
Dual redundant power supply units and system fans keep the unit running during a single component failure. The operating temperature range is 5°C to 35°C with humidity tolerance of 5 to 95 percent relative humidity. Redundant SAS modules maintain the storage path if one module fails. The 16.09 lb chassis mounts in a standard rack for 24/7 service.
Highlights
- Massive scalability up to 180 drives with 15 expansion units
- Redundant power and cooling keep the system running during component failure
- Intel Xeon E3-1230 v2 3.3 GHz quad-core processor handles demanding workloads
- 4 GB DDR3 ECC memory installed for data integrity
- 2 USB 3.0 ports provide fast peripheral connectivity
Specifications
| Brand | Synology |
|---|---|
| Model | RXD1215sas |
| Port USB | 2 x USB3.0 |
| Form Factor | Rackmount |
| Processor | Intel Xeon E3-1230 v2 Quad Core 3.3 GHz |
| Installed Memory | 4 GB X 2 DDR3 ECC |
| Included HDD Capacity | Diskless System |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 5°C - 35 °C |
| Humidity | 5-95% R.H |

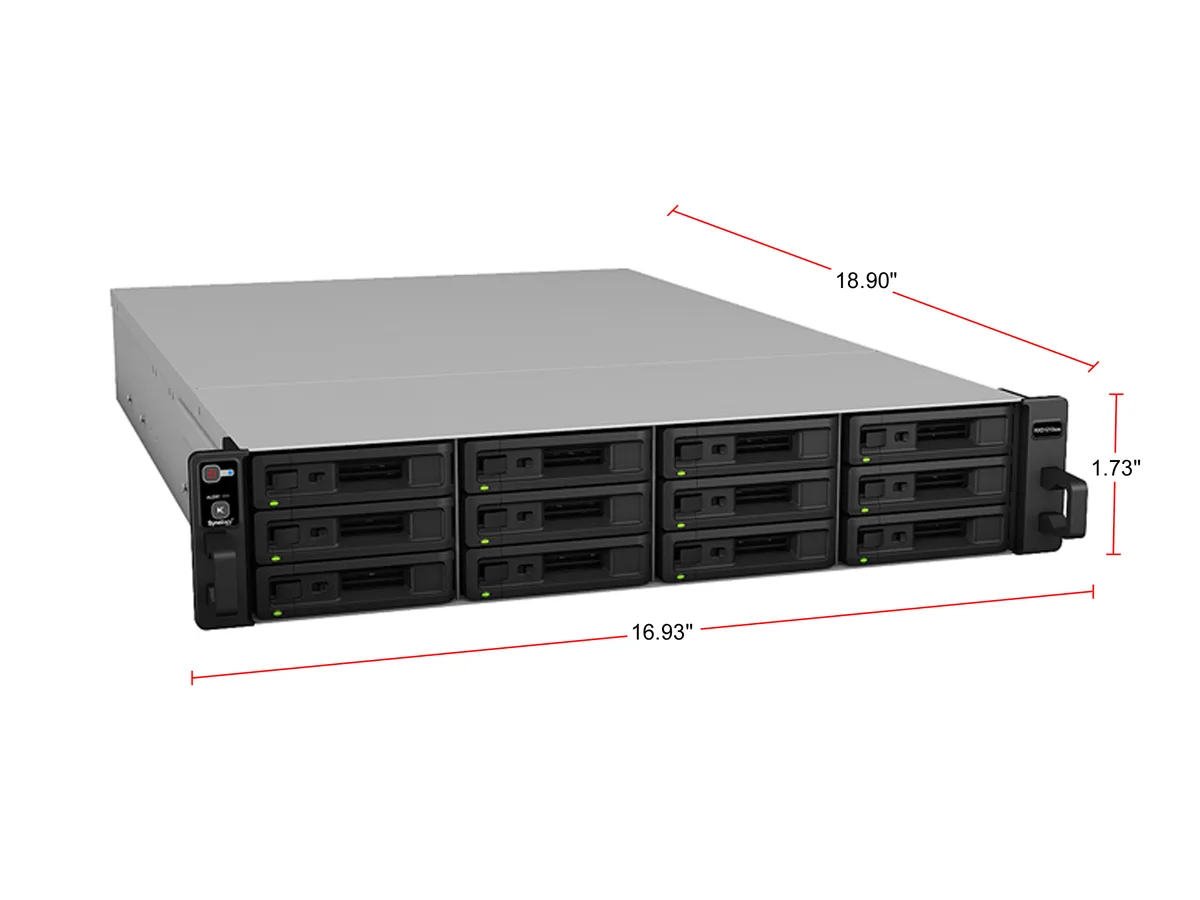

| Dimensions | 1.73" x 16.93" x 18.90" (H x W x D) |
| Weight | 16.09 lbs. |
| Package Contents | Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Expansion Cable: MiniSAS X 2 Quick Installation Guide X 1 |
| Shipping weight | 23.59 kg |
| Package size | 851 × 622 × 229 mm |
Questions about this item
Does the RXD1215sas ship with drives or must they be purchased separately?
The unit is a diskless system; drives are not included and must be purchased separately.
How many RXD1215sas units can be connected to a single RC18015xs+?
Up to fifteen RXD1215sas units can be connected, scaling to 180 drives total.
What processor and memory are installed in the RXD1215sas?
It includes an Intel Xeon E3-1230 v2 quad-core 3.3 GHz processor and 8 GB of DDR3 ECC memory.
